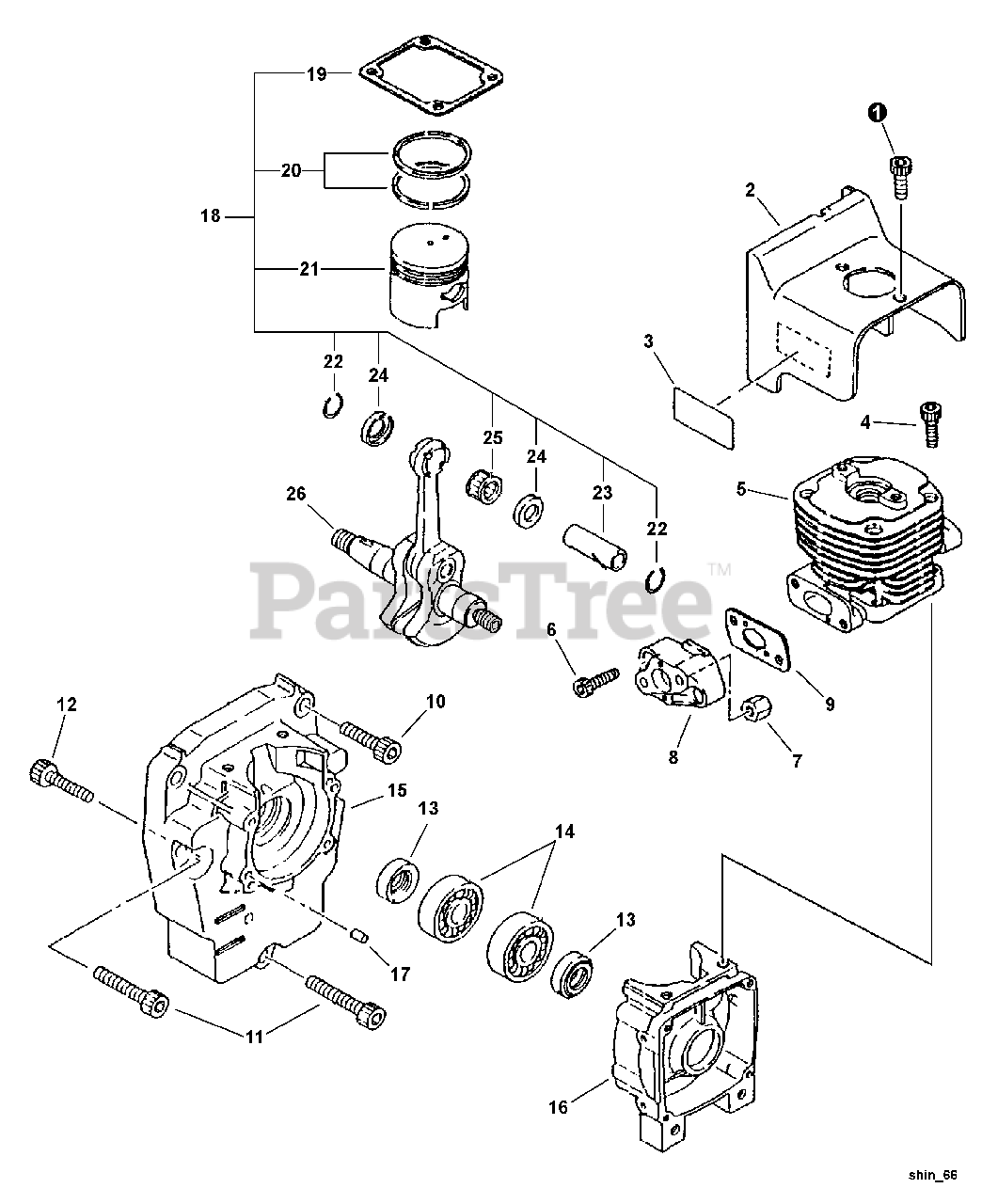

EB 45 - Shindaiwa Backpack Blower Engine, Engine Cover Parts Diagram

Backpack Blower

Engine, Engine Cover Parts Diagram

  • Title

1

Echo 11024-05140

BOLT 5×14
(Superseded to V203001140)

$1.49

$

Usually ships in 2-4 days

0

2

Echo 70029-32110

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

3

Echo 70029-32210

LABEL

$

$

Currently unavailable

4

Echo 01022-05250

SCREW - 5×20

$

$

Currently unavailable

5

Echo 70029-12110

CYLINDER

$148.99

$

In Stock, only 1 left!

0

6

Echo 11020-05250

SCREW - 5×25
(Superseded to V203001330)

$1.99

$

Usually ships in 2-4 days

0

7

Echo 20011-12260

NUT M5×6.3
(Superseded to V263000260)

$1.49

$

In Stock, Qty 5

0

8

Echo 70029-12210

INSULATOR

$14.99

$

Usually ships in 2-4 days

0

9

Echo 20021-12220

GASKET, INTAKE
(Superseded to V103001000)

$0.99

$

In Stock, only 4 left!

0

10

Echo 11022-06300

SCREW - 6×30

$1.49

$

Usually ships in 2-4 days

0

11

Echo 11022-06400

BOLT M6×40
(Superseded to V204000450)

$1.99

$

In Stock, only 1 left!

0

12

Echo 01020-05300

BOLT 5×30
(Superseded to 90010505030)

$1.49

$

Usually ships in 2-4 days

0

13

Echo 20010-21211

SEAL, OIL 16
(Superseded to V508000050)

$7.99

$

In Stock, Qty 11

0

14

Echo 02030-06202

BEARING, BALL
(Superseded to 90081036202)

$11.99

$

In Stock, only 2 left!

0

15

Echo 70029-21120

CRANKCASE - FRONT
(Superseded to Discontinued)

$

$

Not available

16

Echo 70062-21110

CRANKCASE S
(Superseded to 72935-21111)

$50.99

$

Usually ships in 2-4 days

0

17

Echo 20000-21140

PIN, LOCATING
(Superseded to V623000060)

$0.99

$

Usually ships in 2-4 days

0

18

Echo 99909-136

PISTON KIT
(Superseded to 99909-304)

$

$

Not available

19

Echo 20010-12120

GASKET, CYLINDER
(Superseded to 20010-12121)

$1.99

$

In Stock, only 4 left!

0

20

Echo 20021-41210

RING, PISTON
(Superseded to A101000350)

$5.49

$

In Stock, Qty 14

0

21

Echo 20021-41111

PISTON
(Superseded to 99909-304)

$

$

Not available

22

Echo 99900-01734

RING, RETAINING - 8

$1.49

$

Usually ships in 2-4 days

0

23

Echo 20021-41310

PIN, PISTON 11
(Superseded to V609000020)

$5.99

$

Usually ships in 2-4 days

0

24

Echo 20021-41341

WASHER
(Superseded to 20021-41342)

$6.49

$

Usually ships in 2-4 days

0

25

Echo 20021-41330

BEARING, NEEDLE 11
(Superseded to V556000020)

$11.99

$

Usually ships in 2-4 days

0

25

Echo 20021-41330

BEARING, NEEDLE 11
(Superseded to V556000020)

$11.99

$

Usually ships in 2-4 days

0

25

Echo 20021-41330

BEARING, NEEDLE 11
(Superseded to V556000020)

$11.99

$

Usually ships in 2-4 days

0

26

Echo 70029-42002

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo 70029-42002

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo 70029-42002

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available
