EB 45 - Shindaiwa Backpack Blower Fuel System Parts Diagram

Backpack Blower

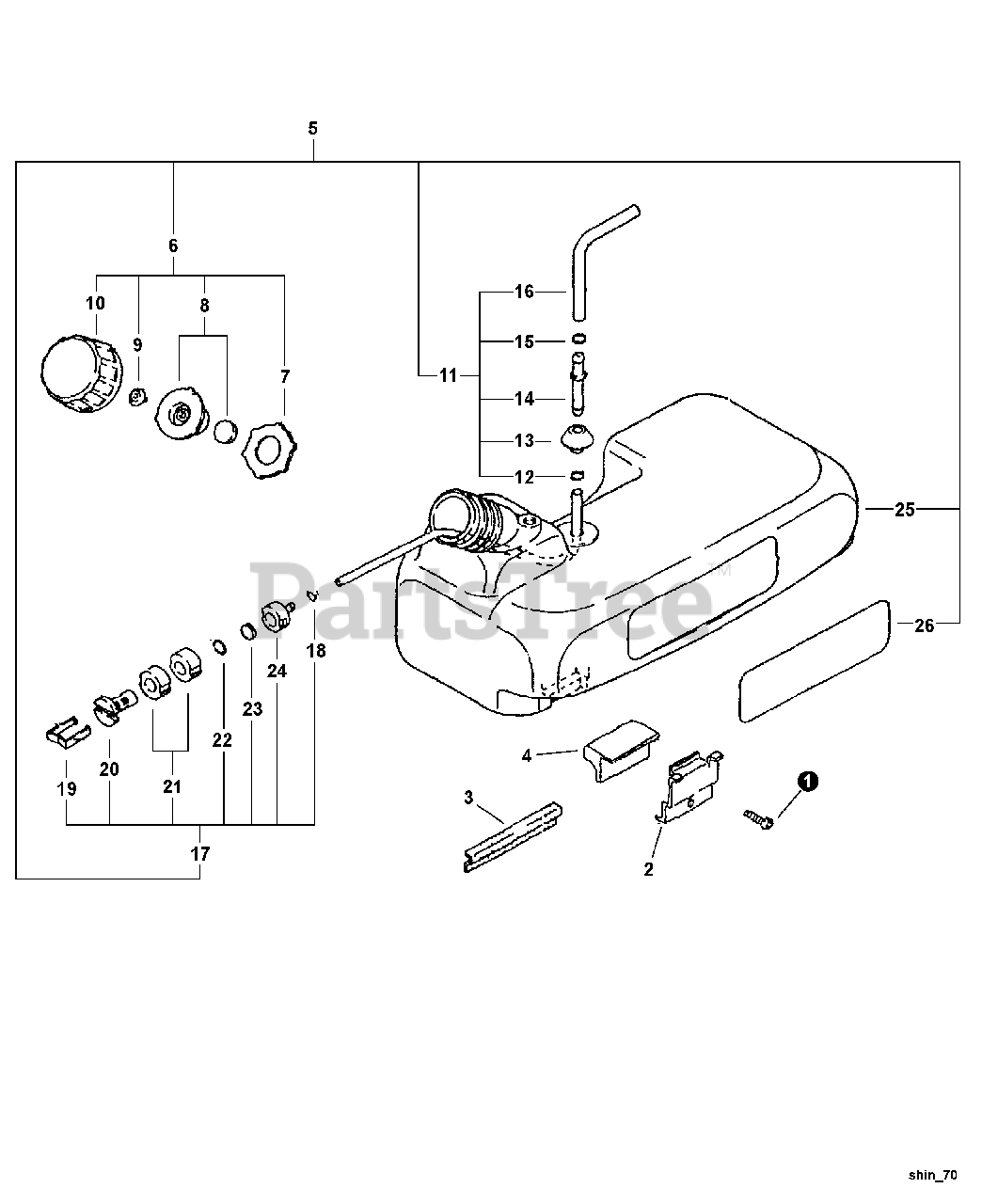

Fuel System Parts Diagram

  • Title

1

Echo 01020-05100

SCREW - 5X10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 11

0

2

Echo 70029-86111

BRACKET, TANK
(Superseded to Discontinued)

$

$

Not available

3

Echo 70029-85130

CUSHION
(Superseded to 70029-85131)

$3.99

$

Usually ships in 2-4 days

0

4

Echo 70029-86121

CUSHION

$5.99

$

Usually ships in 2-4 days

0

5

Echo 70029-85002

FUEL TANK ASSY
(Superseded to 70029-85003)

$

$

Not available

6

Echo 20040-85202

CAP ASSY
(Superseded to 20040-85203)

$

$

Not available

7

Echo 20040-85220

GASKET
(Superseded to V107000040)

$1.49

$

In Stock, only 1 left!

0

8

Echo 20040-85232

VENT RETAINER ASSY
(Superseded to A356000100)

$2.49

$

In Stock, only 3 left!

0

9

Echo 20040-85260

VENT
(Superseded to A356000070)

$9.49

$

Usually ships in 2-4 days

0

10

Echo 20040-85210

CAP, FUEL
(Superseded to 20040-85211)

$18.99

$

In Stock, only 3 left!

0

11

Echo 70029-85308

FUEL PIPE KIT
(Superseded to 70029-85302)

$

$

Not available

12

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

13

Echo 70030-85300

FUEL PIPE ASSY
(Superseded to 70029-85302)

$

$

Not available

14

Echo 70029-85350

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

15

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

16

Echo 70029-85312

PIPE - FUEL

$1.99

$

In Stock, Qty 5

0

17

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

18

Echo 22120-85440

RING, RETAINING

$

$

Currently unavailable

19

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

20

Echo 22128-85470

CASE, FILTER
(Superseded to A372000000)

$

$

Not available

21

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 18

0

22

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

23

Echo 22118-85460

SCREEN, FILTER
(Superseded to A371000010)

$9.49

$

In Stock, Qty 20+

0

24

Echo 22128-85410

WEIGHT, FUEL FILTER
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

25

Echo 70029-85112

TANK, FUEL
(Superseded to 70029-85102)

$

$

Not available

26

Echo 70029-85120

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available
