EB 45 - Shindaiwa Backpack Blower Intake Parts Diagram

Backpack Blower

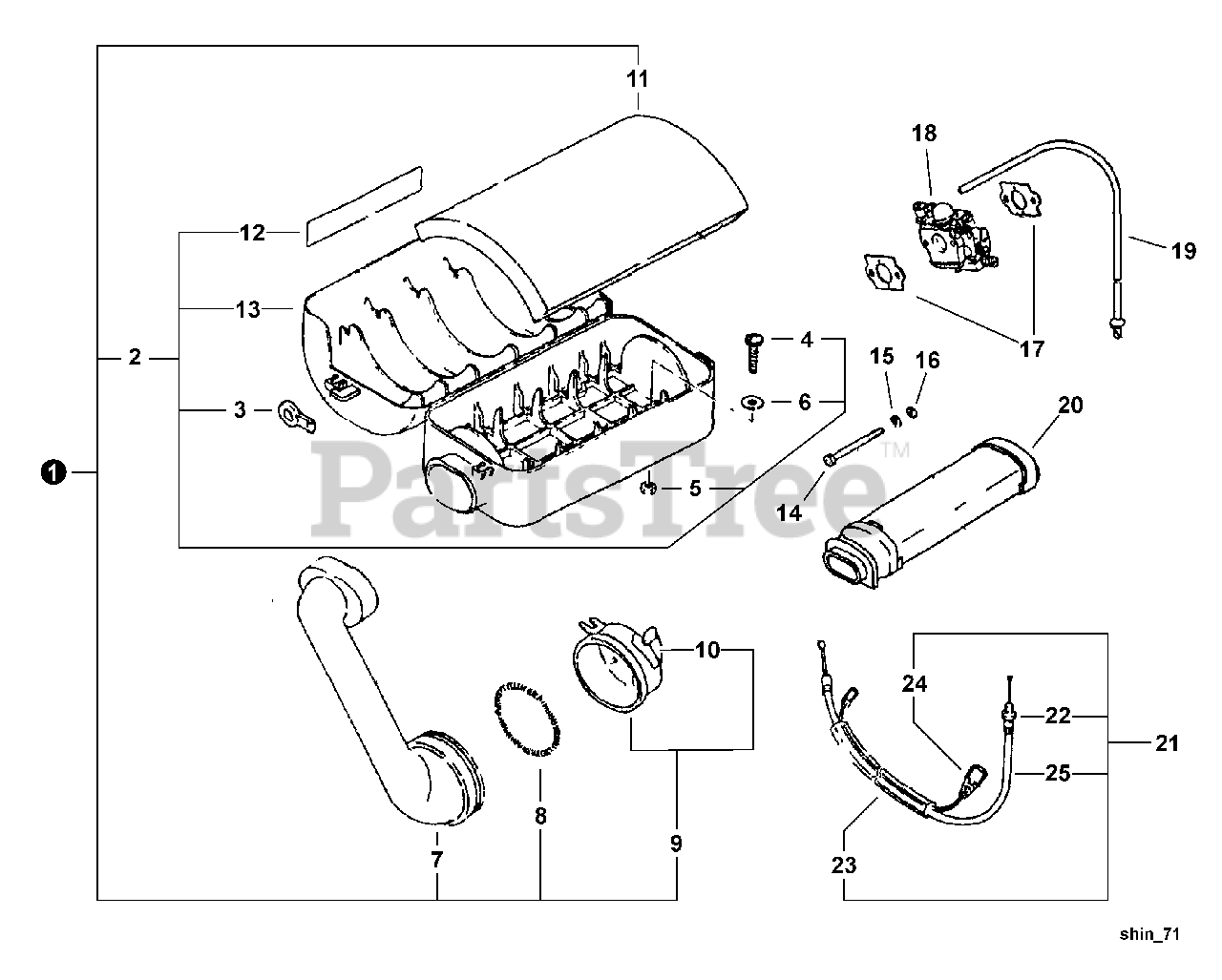

Intake Parts Diagram

  • Title

1

Echo 70029-82001

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 70029-82201

AIR FILTER COVER KIT
(Superseded to Discontinued)

$

$

Not available

3

Echo 70029-82240

BAND

$1.49

$

Usually ships in 2-4 days

0

4

Echo 11204-06400

SCREW - 6X40
(Superseded to Discontinued)

$

$

Not available

5

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

6

Echo 70029-82260

WASHER
(Superseded to Discontinued)

$

$

Not available

7

Echo 70029-82310

DUCT

$26.99

$

Usually ships in 2-4 days

0

8

Echo 70029-82320

SPRING

$2.99

$

Usually ships in 2-4 days

0

9

Echo 70029-82101

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

10

Echo 19404-00008

LABEL - CHOKE
(Superseded to X506000130)

$0.99

$

In Stock, Qty 20+

0

11

Echo 70029-82230

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

12

Echo 70029-82220

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

13

Echo 70029-82211

CASE, AIR FILTER

$21.99

$

Usually ships in 2-4 days

0

14

Echo 01020-05550

SCREW - 5X55
(Superseded to 90010505055)

$1.49

$

In Stock, Qty 20+

0

15

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 6

0

16

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

17

Echo 70029-81710

GASKET, INTAKE

$0.99

$

In Stock, Qty 6

0

18

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

19

Echo 70029-81800

DRAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

20

Echo 70029-82400

FILTER, AIR - HEAVY DUTY
(Superseded to Discontinued)

$

$

Not available

21

Echo 70029-83101

CONTROL CABLE ASSY
(Superseded to Discontinued)

$

$

Not available

22

Echo 01501-06041

NUT - 6
(Superseded to 90050200006)

$0.99

$

In Stock, only 3 left!

0

23

Echo 70029-83120

TUBE
(Superseded to Discontinued)

$

$

Not available

24

Echo 70029-83130

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

25

Echo 70029-83110

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available
