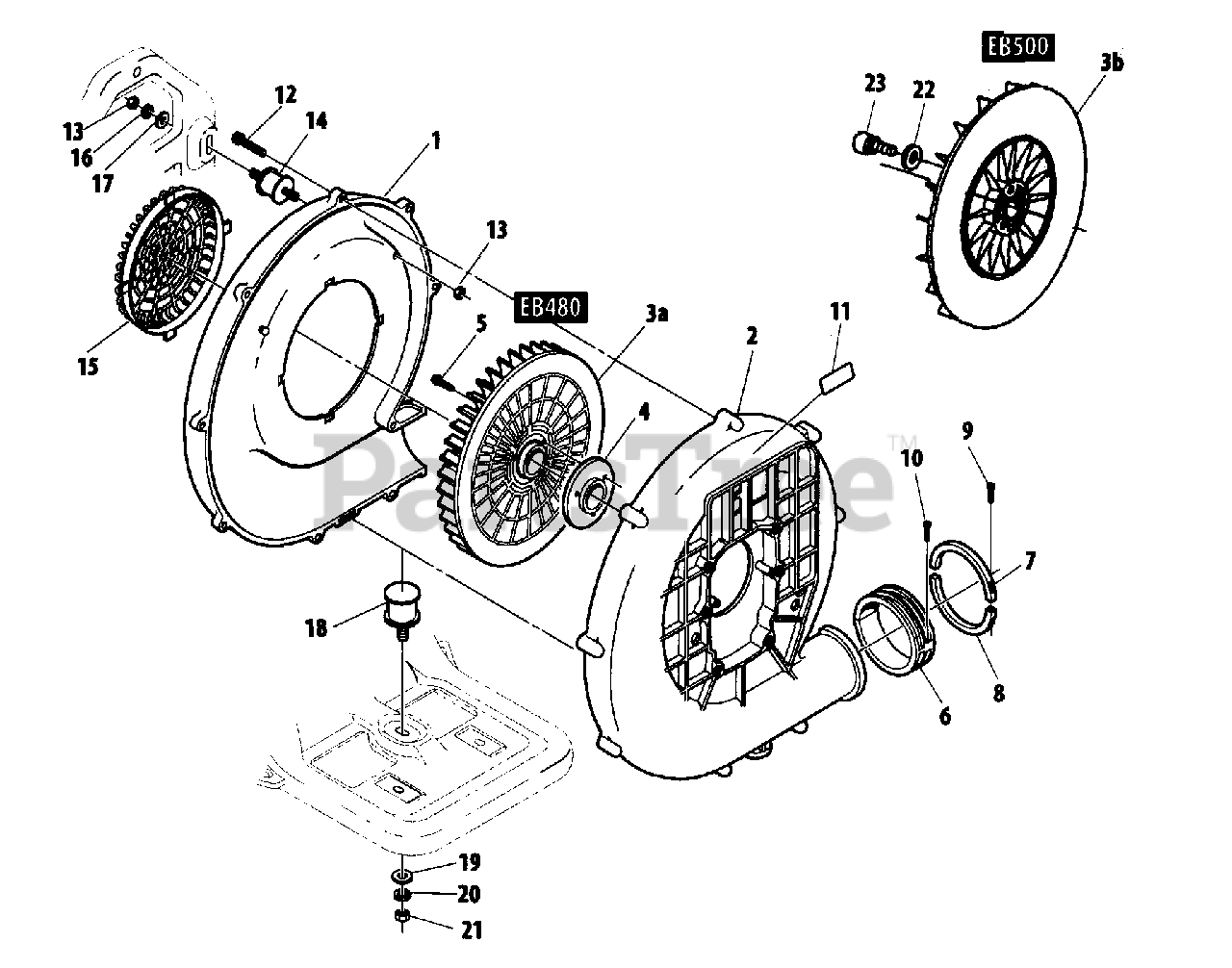

EB 480 - Shindaiwa Backpack Blower Impeller, Volute Case Parts Diagram

Backpack Blower

Impeller, Volute Case Parts Diagram

  • Title

1

Echo 72935-61211

COVER, FAN - INNER
(Superseded to 80051)

$124.99

$

In Stock, only 1 left!

0

2

Echo 72935-61111

COVER, FAN - OUTER
(Superseded to 80051)

$124.99

$

In Stock, only 1 left!

0

3A

Echo 72935-62110

IMPELLER
(Superseded to E100000150)

$175.99

$

Usually ships in 2-4 days

0

3B

Echo 68200-62112

IMPELLER
(Superseded to E100000140)

$62.99

$

Usually ships in 2-4 days

0

4

Echo 72935-62120

SPACER

$

$

Not available

5

Echo 11022-06400

SCREW - 6X40
(Superseded to V204000450)

$1.99

$

In Stock, only 1 left!

0

6

Echo 72935-61410

SLEEVE
(Superseded to E162000010)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 72935-61420

RING A
(Superseded to V495001250)

$9.49

$

Usually ships in 2-4 days

0

8

Echo 72935-61430

RING - B
(Superseded to V495001260)

$9.49

$

Usually ships in 2-4 days

0

9

Echo 11203-03250

SCREW
(Superseded to 9157803025)

$1.49

$

Usually ships in 2-4 days

0

10

Echo 11270-03202

SCREW -- TAPPING
(Superseded to 9137103020)

$0.99

$

Usually ships in 2-4 days

0

11

Echo 72935-61510

LABEL

$2.49

$

Usually ships in 2-4 days

0

12

Echo 72935-61230

SCREW - 5 -- TAPPING
(Superseded to V203000390)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 72935-61220

CUSHION
(Superseded to V401000180)

$12.99

$

Usually ships in 2-4 days

0

15

Echo 72935-61310

COVER, INTAKE
(Superseded to E104000160)

$7.99

$

In Stock, only 2 left!

0

16

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, only 2 left!

0

17

Echo 22104-31620

WASHER
(Superseded to V303000270)

$0.99

$

Usually ships in 2-4 days

0

18

Echo 72935-61120

CUSHION
(Superseded to V402000060)

$11.99

$

Usually ships in 2-4 days

0

19

Echo 15401-10016

COLLAR

$0.99

$

Usually ships in 2-4 days

0

20

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, Qty 20+

0

21

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

22

Echo 01612-00600

WASHER - 6
(Superseded to 90060200006)

$0.99

$

In Stock, Qty 18

0

23

Echo 11060-06251

SCREW - 6X25

$1.99

$

Usually ships in 2-4 days

0
