EB 500 EC1 - Shindaiwa Backpack Blower (SN: P30236000000 - P30236999999) Cylinder / Crankcase Parts Diagram

Backpack Blower

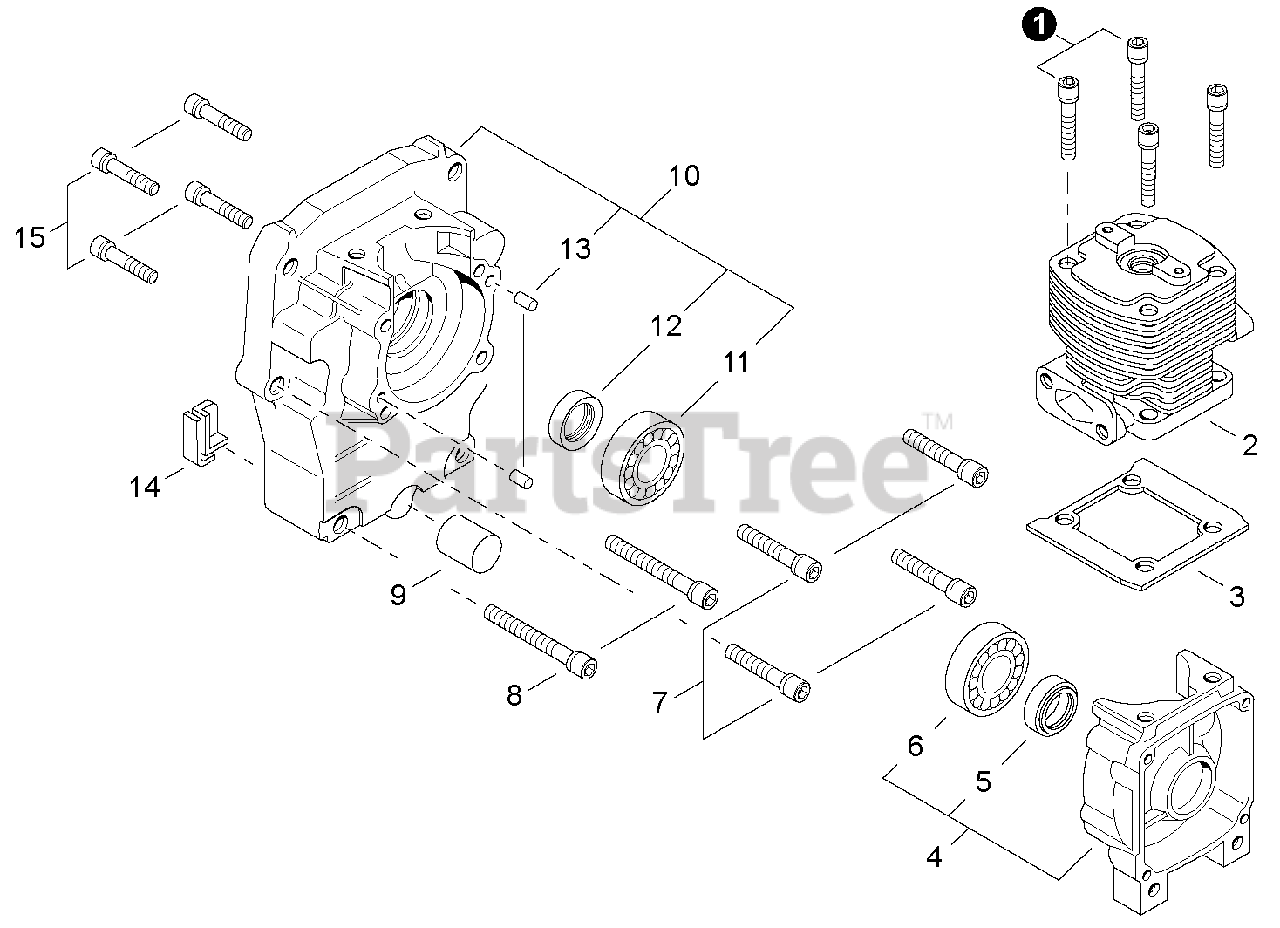

Cylinder / Crankcase Parts Diagram

  • Title

1

Echo V203000360

BOLT 5

Note: 11060-05253

$1.99

$

Usually ships in 2-4 days

0

2

Echo A130001070

CYLINDER

Note: 72935-12111

$72.99

$

Usually ships in 2-4 days

0

3

Echo V100000300

GASKET, CYLINDER

Note: 72935-12120

$1.99

$

Usually ships in 2-4 days

0

4

Echo P021033430

CRANKCASE ASSY, S
(Superseded to P021033431)

Note: 72935-21101

$28.99

$

Usually ships in 2-4 days

0

5

Echo V508000050

SEAL, OIL 16

Note: 20010-21211

$7.99

$

In Stock, Qty 11

0

6

Echo V592000290

BEARING, BALL 6202 C3

Note: 12900-62020

$8.99

$

Usually ships in 2-4 days

0

7

Echo V204000280

BOLT, ADHESIVE M6×30
(Superseded to Discontinued)

Note: 11060-06300

$

$

Not available

8

Echo V204000290

BOLT, ADHESIVE M6×45
(Superseded to Discontinued)

Note: 11060-06450

$

$

Not available

9

Echo V420002160

CUSHION

Note: 72935-21230

$2.99

$

Usually ships in 2-4 days

0

10

Echo P021033440

CRANKCASE ASSY, M

Note: 72935-21200

$62.99

$

Usually ships in 2-4 days

0

11

Echo V592000290

BEARING, BALL 6202 C3

Note: 12900-62020

$8.99

$

Usually ships in 2-4 days

0

12

Echo V508000050

SEAL, OIL 16

Note: 20010-21211

$7.99

$

In Stock, Qty 11

0

13

Echo 90033050100

PIN, LOCATING 5×10

Note: 12492-50100

$1.49

$

Usually ships in 2-4 days

0

14

Echo V144000190

GROMMET

Note: 72935-21220

$1.49

$

Usually ships in 2-4 days

0

15

Echo V203000370

BOLT, ADHESIVE M5×30
(Superseded to Discontinued)

Note: 11060-05300

$

$

Not available
