EB 500 EC1 - Shindaiwa Backpack Blower (SN: P30236000000 - P30236999999) Starter Parts Diagram

Backpack Blower

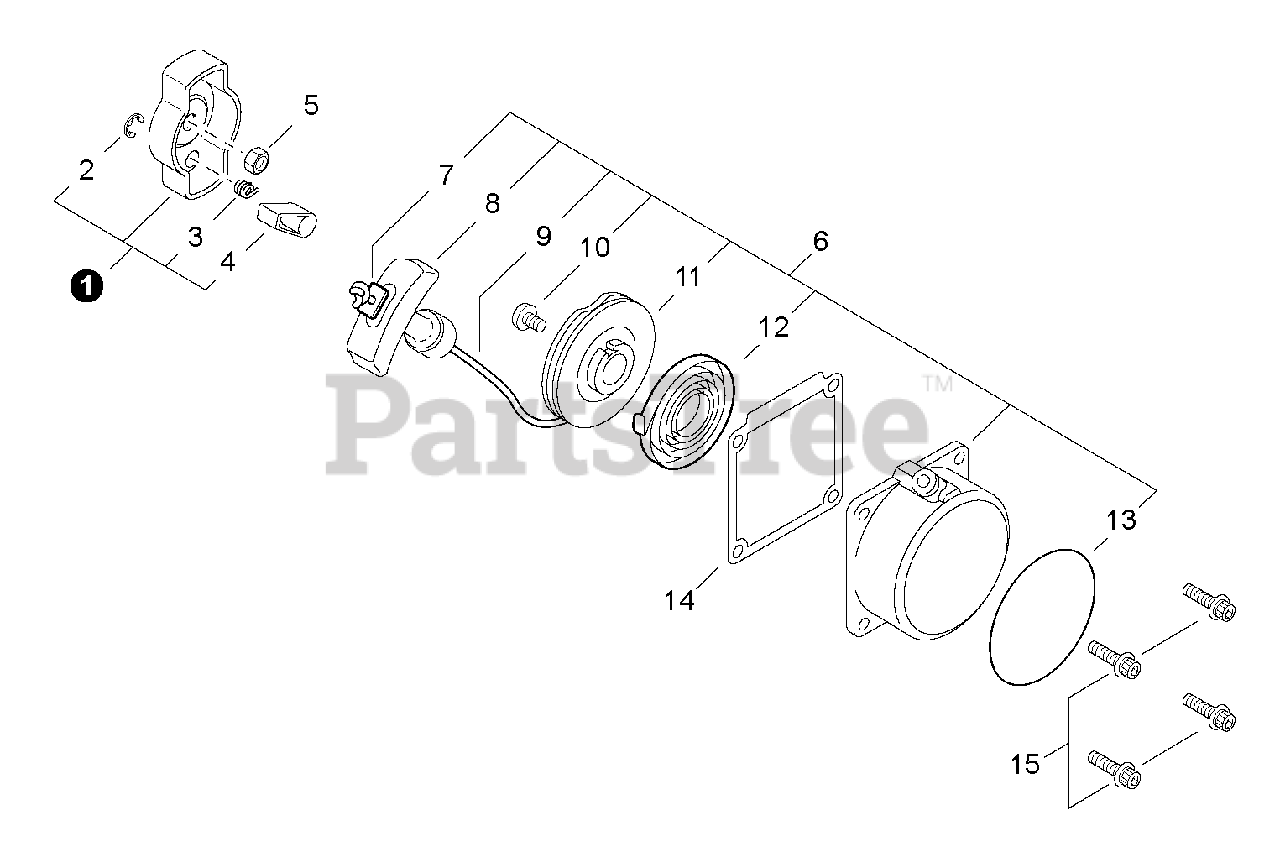

Starter Parts Diagram

  • Title

1

Echo A052000290

STARTER PAWL ASSY

Note: 72935-75200

$7.99

$

In Stock, only 1 left!

0

2

Echo P022002100

RING, RETAINING - 4

Note: 20024-75240

$0.99

$

In Stock, Qty 20+

0

3

Echo 17723411410

SPRING, RETURN

Note: 72935-75230

$3.49

$

Usually ships in 2-4 days

0

4

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

Note: 20024-75220

$3.49

$

In Stock, Qty 20+

0

5

Echo V265000130

NUT - 8

Note: 72935-75310

$0.99

$

Usually ships in 2-4 days

0

6

Echo P021035450

STARTER ASSY

Note: 72935-75101

$51.99

$

In Stock, only 1 left!

0

7

Echo A522000040

ROPE, STARTER
(Superseded to 17724611120)

Note: 20010-75210

$2.49

$

In Stock, Qty 8

0

8

Echo 17722827030

GRIP, STARTER

Note: 20010-75190

$5.99

$

In Stock, Qty 20+

0

9

Echo A509000190

ROPE, STARTER

Note: 20020-75180

$8.49

$

Usually ships in 2-4 days

0

10

Echo V253000270

SCREW - 5
(Superseded to 17723606910)

Note: 72935-75170

$3.49

$

Usually ships in 2-4 days

0

11

Echo 17721543130

REEL, ROPE

Note: 70131-75120

$15.99

$

In Stock, only 1 left!

0

12

Echo 17722040630

SPRING, REWIND

Note: 20024-75130

$14.99

$

In Stock, Qty 12

0

13

Echo X504002770

LABEL - TRADE

Note: 19420-00027

$2.49

$

In Stock, only 2 left!

0

14

Echo V105000030

GASKET, STARTER
(Superseded to V105000031)

Note: 20020-76111

$1.99

$

In Stock, Qty 5

0

15

Echo V202000470

SCREW - 4X16

Note: 11060-04160

$1.99

$

In Stock, Qty 5

0
