EB 500 EC1 - Shindaiwa Backpack Blower (SN: P32220000000 - P32220999999) Air Filter Parts Diagram

Backpack Blower

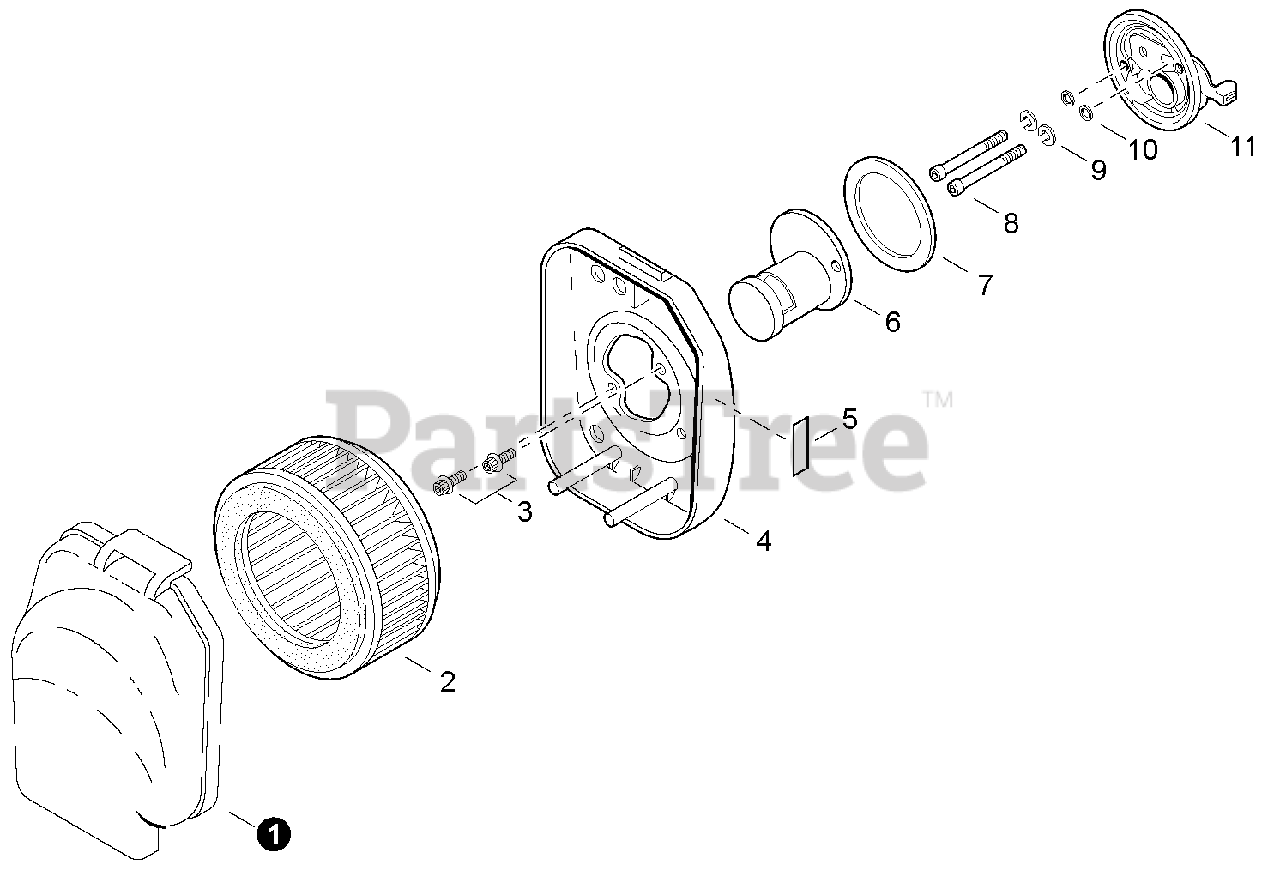

Air Filter Parts Diagram

  • Title

1

Echo A232000580

COVER, AIR FILTER

Note: 72935-82120

$16.99

$

In Stock, Qty 12

0

2

Echo A226000500

FILTER, AIR

Note: 72935-82310

$20.99

$

In Stock, Qty 16

0

3

Echo V202000150

SCREW - 4X14

Note: 11024-04140

$0.99

$

In Stock, Qty 7

0

4

Echo A225000370

CASE, AIR FILTER

Note: 72935-82111

$13.99

$

Usually ships in 2-4 days

0

5

Echo X506000130

LABEL - CHOKE

Note: 19404-00008

$0.99

$

In Stock, Qty 20+

0

6

Echo A239000080

PIPE - INTAKE

Note: 72935-82130

$10.99

$

In Stock, only 1 left!

0

7

Echo V103000600

GASKET, INTAKE

Note: 72935-82210

$1.99

$

In Stock, Qty 9

0

8

Echo 90010505060

SCREW - 5X60

Note: 01020-05600

$2.49

$

In Stock, Qty 20+

0

9

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, Qty 6

0

10

Echo 90060000005

WASHER - 5

Note: 01610-05080

$0.99

$

In Stock, Qty 20+

0

11

Echo A221000030

CHOKE ASSY

Note: 72935-81501

$19.99

$

In Stock, Qty 10

0
