EB 500 EC1 - Shindaiwa Backpack Blower (SN: P32220000000 - P32220999999) Fuel Tank Parts Diagram

Backpack Blower

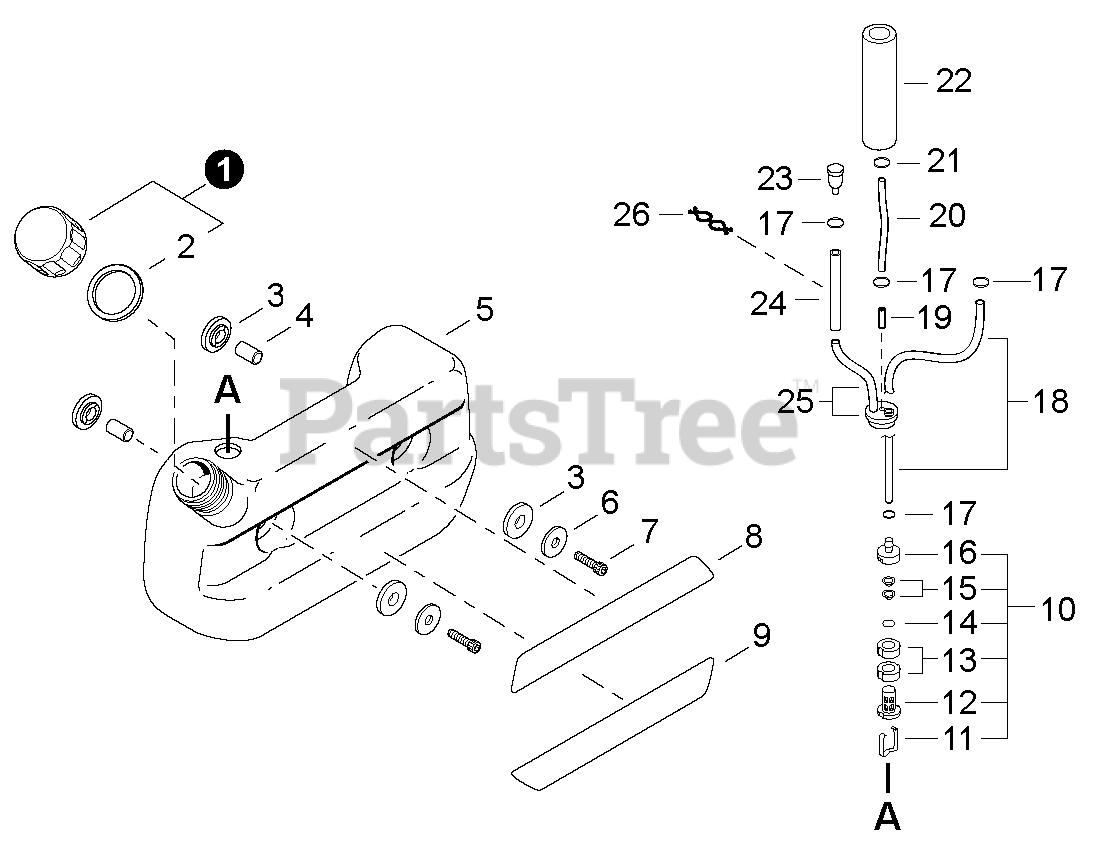

Fuel Tank Parts Diagram

  • Title

1

Echo A033000020

CAP ASSY

Note: 68204-85020

$10.99

$

In Stock, Qty 11

0

2

Echo V107000010

GASKET, CAP

Note: 20000-85221

$1.99

$

In Stock, Qty 17

0

3

Echo V420002180

CUSHION

Note: 72935-86421

$1.99

$

Usually ships in 2-4 days

0

4

Echo V354000220

COLLAR

Note: 17901-06150

$1.49

$

Usually ships in 2-4 days

0

5

Echo A350001030

TANK, FUEL

Note: 72935-85111

$39.99

$

Usually ships in 2-4 days

0

6

Echo V354000230

COLLAR

Note: 15401-20004

$1.49

$

Usually ships in 2-4 days

0

7

Echo V204000320

SCREW - 6X25

Note: 11020-06250

$1.99

$

Usually ships in 2-4 days

0

8

Echo X543001180

LABEL - MODEL

Note: 68200-91032

$7.49

$

In Stock, only 1 left!

0

9

Echo X504001020

LABEL - SHINDAIWA

Note: 19420-00056

$9.99

$

Usually ships in 2-4 days

0

10

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: 22115-85401

$9.99

$

In Stock, Qty 20+

0

11

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: 22128-85440

$9.99

$

In Stock, Qty 20+

0

12

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: 22128-85470

$9.99

$

In Stock, Qty 20+

0

13

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: 22128-85421

$9.99

$

In Stock, Qty 20+

0

14

Echo V583000200

RING, RETAINING
(Superseded to 13120519831)

Note: 22128-85480

$9.99

$

In Stock, Qty 20+

0

15

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: 22118-85460

$9.99

$

In Stock, Qty 20+

0

16

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: 22128-85410

$9.99

$

In Stock, Qty 20+

0

17

Echo V490000500

CLIP - 6

Note: 20020-85540

$1.49

$

In Stock, Qty 20+

0

18

Echo V471002370

PIPE - FUEL
(Superseded to V471002371)

Note: 68206-85340

$2.99

$

In Stock, Qty 14

0

19

Echo V186000210

CONNECTOR, PIPE

Note: 72933-85620

$2.49

$

In Stock, Qty 20+

0

20

Echo V471002380

PIPE - RETURN
(Superseded to V471002381)

Note: 72935-85512

$1.99

$

In Stock, only 3 left!

0

21

Echo V490000580

CLIP

Note: 20021-85540

$1.49

$

In Stock, Qty 6

0

22

Echo V471002390

SLEEVE, INSULATOR

Note: 72935-85540

$1.49

$

In Stock, Qty 8

0

23

Echo A356000040

VENT, FUEL TANK

Note: 20035-85522

$7.49

$

In Stock, Qty 20+

0

24

Echo V471002420

SLEEVE, INSULATOR

Note: 72935-85530

$1.99

$

In Stock, Qty 7

0

25

Echo V470000890

PIPE ASSY

Note: 72933-85350

$6.99

$

In Stock, Qty 5

0

26

Echo V491000250

CLIP

Note: 72935-85550

$1.49

$

In Stock, Qty 9

0
