EB 508 RT - Shindaiwa Backpack Blower (SN: P38712001001 - P38712999999) Fuel System Parts Diagram

Backpack Blower

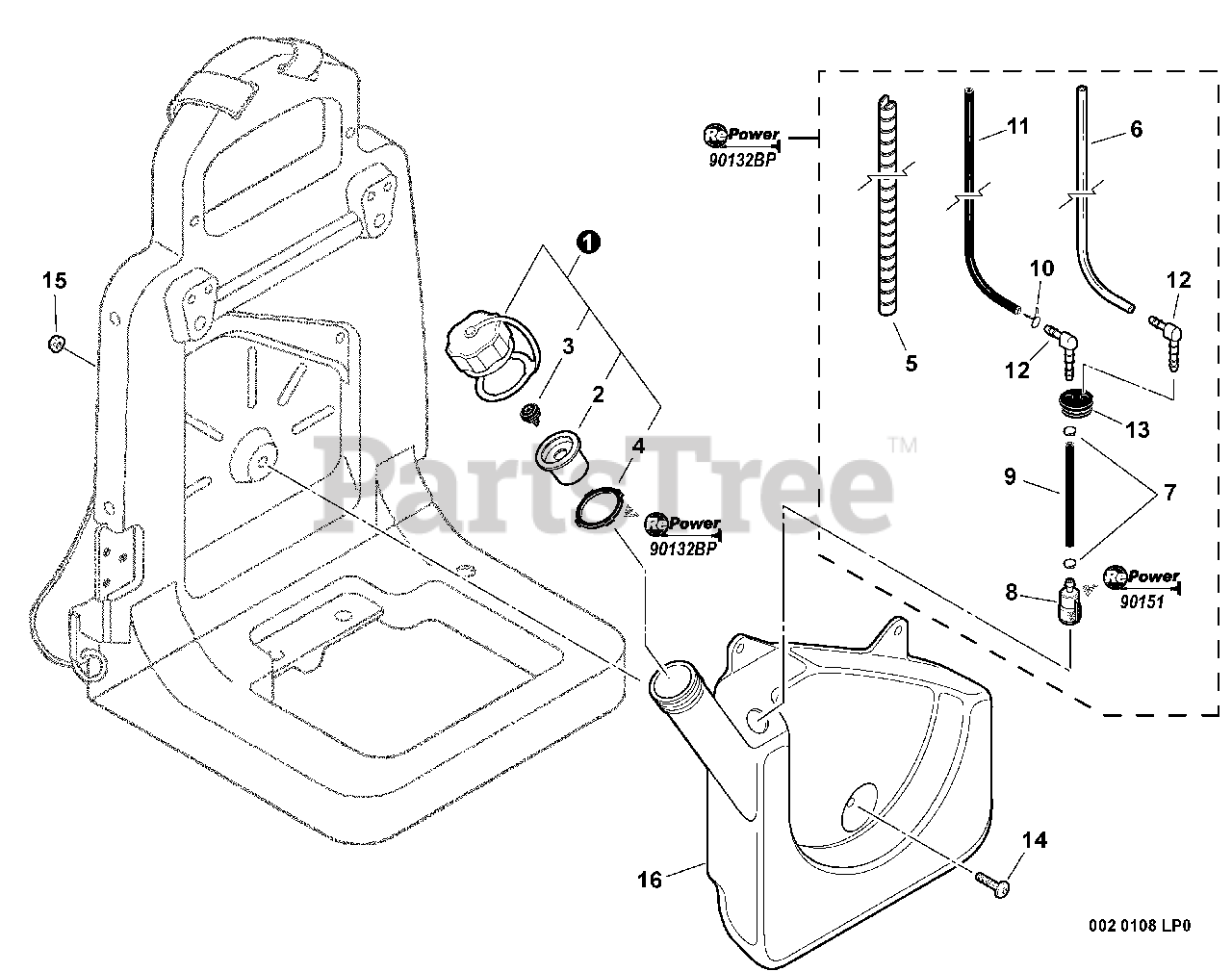

Fuel System Parts Diagram

  • Title

1

Echo P021043860

CAP ASSY, FUEL

Note: Includes ITEMS 2-4

$11.99

$

Usually ships in 2-4 days

0

2

Echo A358000000

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

3

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

4

Echo 13101621060

GASKET, FUEL CAP
(Superseded to 13101621061)

Note: Included In RePower KIT

$

$

Not available

5

Echo V475004110

TUBE, SPIRAL
(Superseded to Discontinued)

$

$

Not available

6

Echo V471003740

PIPE, FUEL - 3×6×470 - CLEAR

Note: RePower BULK OPTION: 90017

$4.99

$

Usually ships in 2-4 days

0

7

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In RePower KIT

$9.99

$

In Stock, Qty 20+

0

9

Echo V471000770

PIPE, FUEL 3×6×280 MM
(Superseded to V471000771)

Note: RePower BULK OPTION: 90015

$4.49

$

In Stock, only 3 left!

0

10

Echo V490000510

CLIP, SPRING Ø5.2

$1.49

$

In Stock, Qty 5

0

11

Echo V471003750

PIPE, FUEL - 3×5×470 - BLACK

Note: RePower BULK OPTION: N/A

$

$

Not available

12

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

13

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

14

Echo 90020905020

SCREW 5×20
(Superseded to Discontinued)

$

$

Not available

15

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

16

Echo A350000711

TANK, FUEL

$50.99

$

In Stock, only 2 left!

0

17

Echo 90132BP

FUEL SYSTEM KIT
(Superseded to Discontinued)

$

$

Not available

18

Echo 90151

TUNE-UP KIT - REPOWER
(Superseded to 90156)

$27.99

$

In Stock, Qty 20+

0
