EB 630 RT - Shindaiwa Backpack Blower (EPA Version) Air Filter Parts Diagram

Backpack Blower (EPA Version)

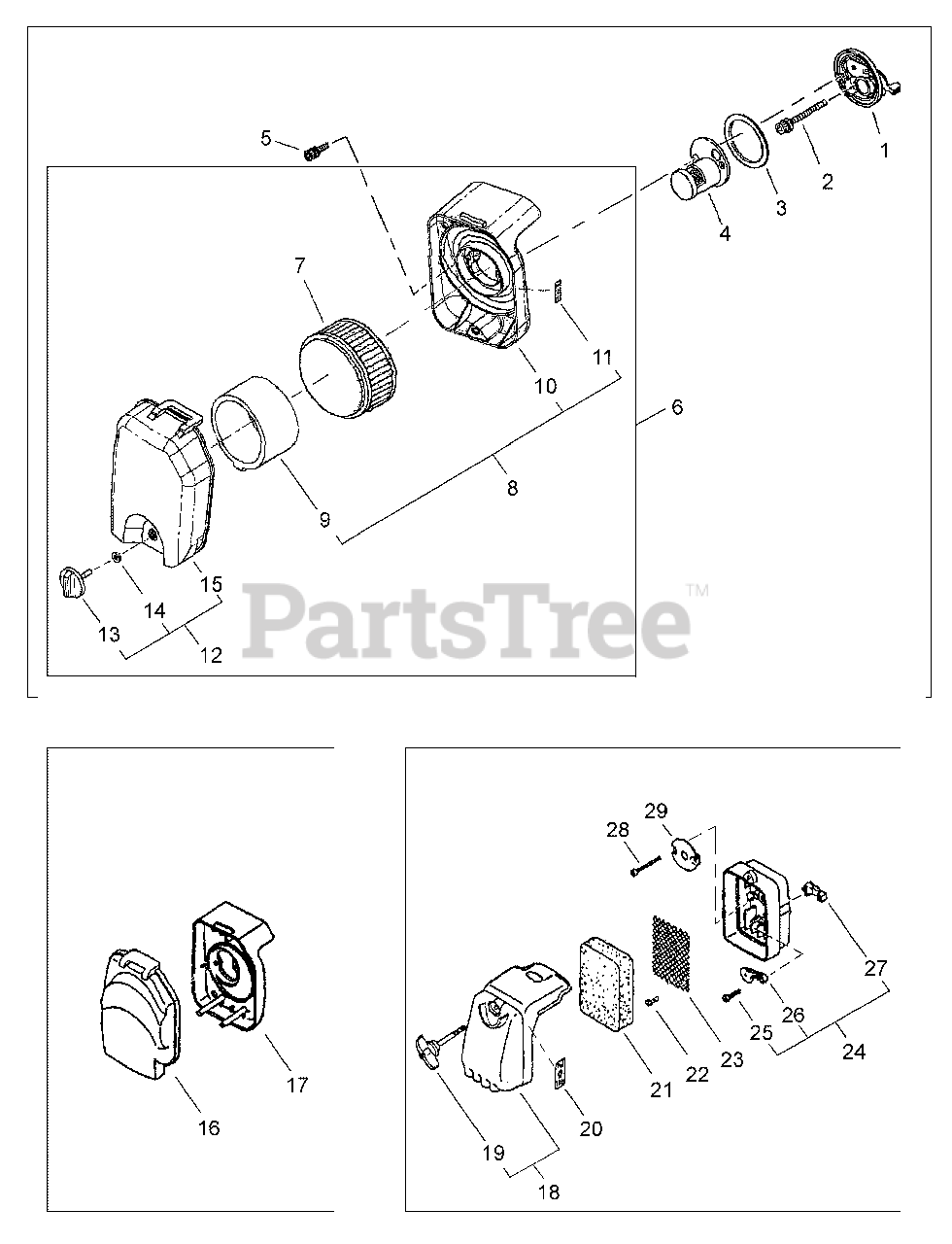

Air Filter Parts Diagram

  • Title

1

Echo 72935-81501

CHOKE ASSY
(Superseded to A221000030)

Note: AFTER S/N: 0065224-3080000

$23.99

$

In Stock, Qty 5

0

2

Echo 11020-05500

BOLT M5×50
(Superseded to V203000850)

Note: AFTER S/N: 0065224-3080000

$1.99

$

In Stock, Qty 13

0

3

Echo 72935-82210

GASKET, INTAKE
(Superseded to V103000600)

Note: AFTER S/N: 0065224-3080000

$1.99

$

In Stock, Qty 7

0

4

Echo 72935-82130

PIPE, INTAKE
(Superseded to A239000080)

Note: AFTER S/N: 0065224-3080000

$12.99

$

In Stock, only 1 left!

0

5

Echo 11024-04140

BOLT M4×14
(Superseded to V202000150)

Note: AFTER S/N: 0065224-3080000

$1.49

$

In Stock, only 1 left!

0

6

Echo 68206-98321

FILTER ASSY, AIR
(Superseded to P021029320)

Note: Includes ITEMS 7-15 S/N: 0065224-3080000

$

$

Not available

7

Echo 68206-82400

FILTER, AIR
(Superseded to A226000510)

Note: AFTER S/N: 0065224-3080000

$44.99

$

In Stock, only 1 left!

0

8

Echo 80801

FILTER KIT, AIR
(Superseded to P021029320)

Note: Includes ITEMS 9-11 S/N: 0065224-3080000

$

$

Not available

9

Echo 60035-98070

PRE-FILTER, FOAM
(Superseded to A226000520)

Note: S/N: 0065224-3080000

$3.99

$

In Stock, only 3 left!

0

10

Echo 68206-82392

CASE, AIR FILTER
(Superseded to A225000380)

Note: S/N: 0065224-3080000

$13.99

$

In Stock, only 1 left!

0

11

Echo 19404-00008

LABEL, CHOKE
(Superseded to X506000130)

Note: S/N: 0065224-3080000

$1.49

$

In Stock, Qty 6

0

12

Echo 68206-82031

COVER ASSY, AIR FILTER
(Superseded to A232000590)

Note: Includes ITEMS 13-15 S/N: 0065224-3080000

$33.99

$

Usually ships in 2-4 days

0

13

Echo A235000270

THUMBSCREW

Note: S/N: 0065224-3080000

$6.49

$

In Stock, only 1 left!

0

14

Echo V323000080

WASHER 5

Note: S/N: 0065224-3080000

$1.49

$

In Stock, Qty 6

0

15

Echo 68206-82132

COVER, AIR FILTER
(Superseded to A232000600)

Note: S/N: 0065224-3080000

$10.99

$

Usually ships in 2-4 days

0

16

Echo 72935-82120

COVER, AIR FILTER
(Superseded to A232000580)

Note: BEFORE S/N: 0065224-3080000

$19.99

$

In Stock, only 3 left!

0

17

Echo 68206-82390

CASE, AIR FILTER
(Superseded to 80801)

Note: BEFORE S/N: 0065224-3080000

$

$

Not available

18

Echo 68206-82040

COVER ASSY, AIR FILTER
(Superseded to Discontinued)

Note: Includes ITEM 19 S/N: 0000000 - 0065223

$

$

Not available

19

Echo 68206-82380

THUMBSCREW

Note: BEFORE S/N: 0065224

$13.99

$

Usually ships in 2-4 days

0

20

Echo 68206-82340

LABEL, CHOKE

Note: BEFORE S/N: 0065224

$2.99

$

Usually ships in 2-4 days

0

21

Echo 80019

FILTER, AIR
(Superseded to Discontinued)

Note: BEFORE S/N: 0065224

$

$

Not available

22

Echo 68206-82370

SCREW

Note: BEFORE S/N: 0065224

$1.99

$

Usually ships in 2-4 days

0

23

Echo 68206-82360

SCREEN, FILTER

Note: BEFORE S/N: 0065224

$32.99

$

Usually ships in 2-4 days

0

24

Echo 68206-82010

CASE ASSY, AIR FILTER
(Superseded to P021029320)

Note: Includes ITEMS 25-27 S/N: 0000000 - 0065223

$

$

Not available

25

Echo 68206-82330

SCREW

Note: S/N: 000000 - 0065224

$1.99

$

Usually ships in 2-4 days

0

26

Echo 68206-82310

PLATE, SHUTTER

Note: S/N: 000000 - 0065224

$17.99

$

Usually ships in 2-4 days

0

27

Echo 68206-82320

LEVER, CHOKE

Note: S/N: 000000 - 0065224

$13.99

$

Usually ships in 2-4 days

0

28

Echo 11206-05600

SCREW

Note: BEFORE S/N: 0065224

$3.49

$

Usually ships in 2-4 days

0

29

Echo 68206-82350

PLATE, PREVENT

Note: BEFORE S/N: 0065224

$36.99

$

Usually ships in 2-4 days

0
