EB 630 RT - Shindaiwa Backpack Blower (Original Version) Cylinder, Muffler Parts Diagram

Backpack Blower

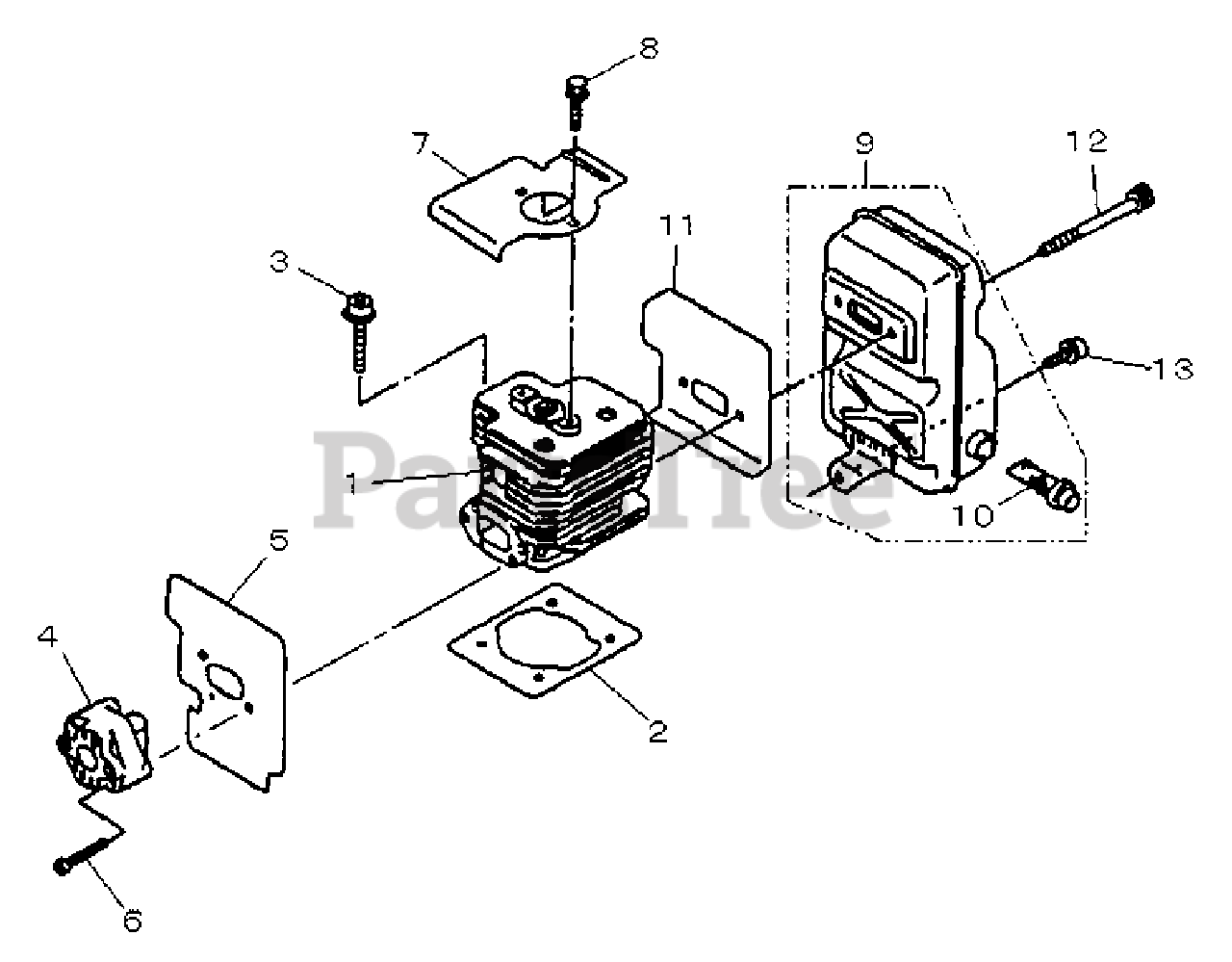

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 68206-12110

CYLINDER
(Superseded to A130001080)

$183.99

$

Usually ships in 2-4 days

0

2

Echo 68206-12120

GASKET, CYLINDER
(Superseded to V100000310)

$14.99

$

In Stock, only 1 left!

0

3

Echo 68206-12310

BOLT M5×22
(Superseded to V203000410)

$6.99

$

Usually ships in 2-4 days

0

4

Echo 68206-12210

INSULATOR
(Superseded to A200000410)

$52.99

$

Usually ships in 2-4 days

0

5

Echo 68206-12220

SHIELD, HEAT
(Superseded to V103000610)

$21.99

$

In Stock, only 1 left!

0

6

Echo 11206-05350

SCREW M5×35
(Superseded to 9157405035)

$1.49

$

In Stock, Qty 9

0

7

Echo 68206-12320

COVER, CYLINDER
(Superseded to A160001270)

$17.99

$

Usually ships in 2-4 days

0

8

Echo 68206-12330

BOLT M5×10
(Superseded to V203000420)

$

$

Not available

9

Echo 68206-15010

MUFFLER ASSY
(Superseded to 68206-15011)

$181.99

$

Usually ships in 2-4 days

0

10

Echo 68206-15130

SCREEN, SPARK ARRESTER
(Superseded to A310000140)

$

$

Not available

11

Echo 68206-15210

GASKET, MUFFLER
(Superseded to V104001040)

$21.99

$

Usually ships in 2-4 days

0

12

Echo 11022-06700

BOLT M6×70
(Superseded to V204000340)

$9.49

$

Usually ships in 2-4 days

0

13

Echo 68206-15310

BOLT, FLANGE M6×12
(Superseded to V204000350)

$3.49

$

Usually ships in 2-4 days

0
