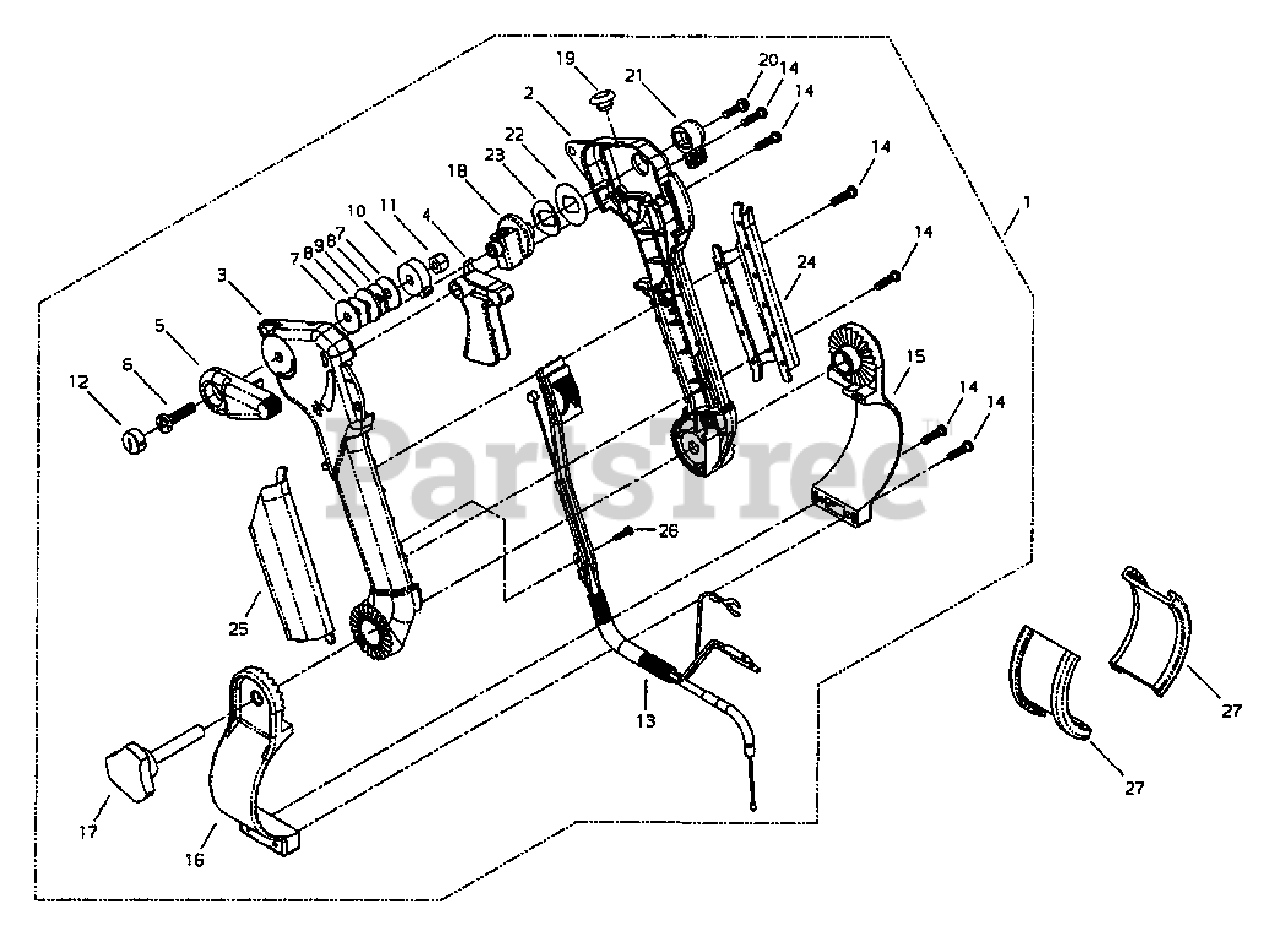

EB 630 RT - Shindaiwa Backpack Blower (Original Version) Thottle Lever Assembly Parts Diagram

Backpack Blower

Thottle Lever Assembly Parts Diagram

  • Title

1

Echo 68209-84010

THROTTLE LEVER ASSY
(Superseded to 68209-84011)

$102.99

$

In Stock, Qty 16

0

2

Echo 68209-84320

STAY
(Superseded to Discontinued)

$

$

Not available

3

Echo 68209-84330

STAY

$11.99

$

Usually ships in 2-4 days

0

4

Echo 68209-84340

TRIGGER, THROTTLE
(Superseded to C450000450)

$3.49

$

In Stock, Qty 9

0

5

Echo 68209-84350

LEVER, LOCK
(Superseded to C453000320)

$3.49

$

Usually ships in 2-4 days

0

6

Echo 68209-84360

ADJUSTABLE BOLT
(Superseded to V204000260)

$1.49

$

Usually ships in 2-4 days

0

7

Echo 68209-84370

WASHER - 6
(Superseded to V304000110)

$0.99

$

Usually ships in 2-4 days

0

8

Echo 68209-84380

LOCKWASHER
(Superseded to V453000110)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 68209-84390

WASHER - 6
(Superseded to V304000120)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 68209-84400

PLATE
(Superseded to C472000070)

$1.99

$

In Stock, Qty 5

0

11

Echo 68209-84410

NUT - 6 -- NYLON
(Superseded to V264000080)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 68209-84420

CRUISE CONTROL BOLT CAP
(Superseded to V162000330)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 68209-84430

THROTTLE CONTROL ASSY
(Superseded to V043000380)

$52.99

$

In Stock, Qty 20+

0

14

Echo 68209-84440

SCREW
(Superseded to V252000070)

$0.99

$

In Stock, Qty 20+

0

15

Echo 68209-84450

BRACKET, HANDLE - RIGHT
(Superseded to C405000380)

$10.99

$

In Stock, Qty 20+

0

16

Echo 68209-84460

BRACKET, HANDLE - LEFT
(Superseded to C405000390)

$10.99

$

In Stock, Qty 20+

0

17

Echo 68209-84470

KNOB, FASTENER
(Superseded to V299000330)

$4.49

$

In Stock, Qty 15

0

18

Echo 68209-84480

ADJUSTER ASSY
(Superseded to C457000010)

$1.49

$

Usually ships in 2-4 days

0

19

Echo 68209-84490

PLUG
(Superseded to V162000340)

$1.99

$

Usually ships in 2-4 days

0

20

Echo 68209-84500

SCREW, METERING LEVER PIN
(Superseded to V252000080)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 68209-84510

SCREW, METERING LEVER PIN
(Superseded to C453000330)

$2.99

$

Usually ships in 2-4 days

0

22

Echo 68209-84520

WASHER
(Superseded to V345000010)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 68209-84530

WASHER - SPRING
(Superseded to V453000120)

$2.49

$

Usually ships in 2-4 days

0

24

Echo 68209-84540

GRIP - RIGHT
(Superseded to Discontinued)

$

$

Not available

25

Echo 68209-84550

GRIP, HANDLE - LEFT
(Superseded to Discontinued)

$

$

Not available

26

Echo 68209-84560

SCREW
(Superseded to V251000030)

$0.99

$

Usually ships in 2-4 days

0

27

Echo 68209-84310

SPACER
(Superseded to V376001190)

$

$

Not available
