EB 630 - Shindaiwa Backpack Blower (EPA Version) Volute S/N: 0000000 - 5060000 Parts Diagram

Backpack Blower (EPA Version)

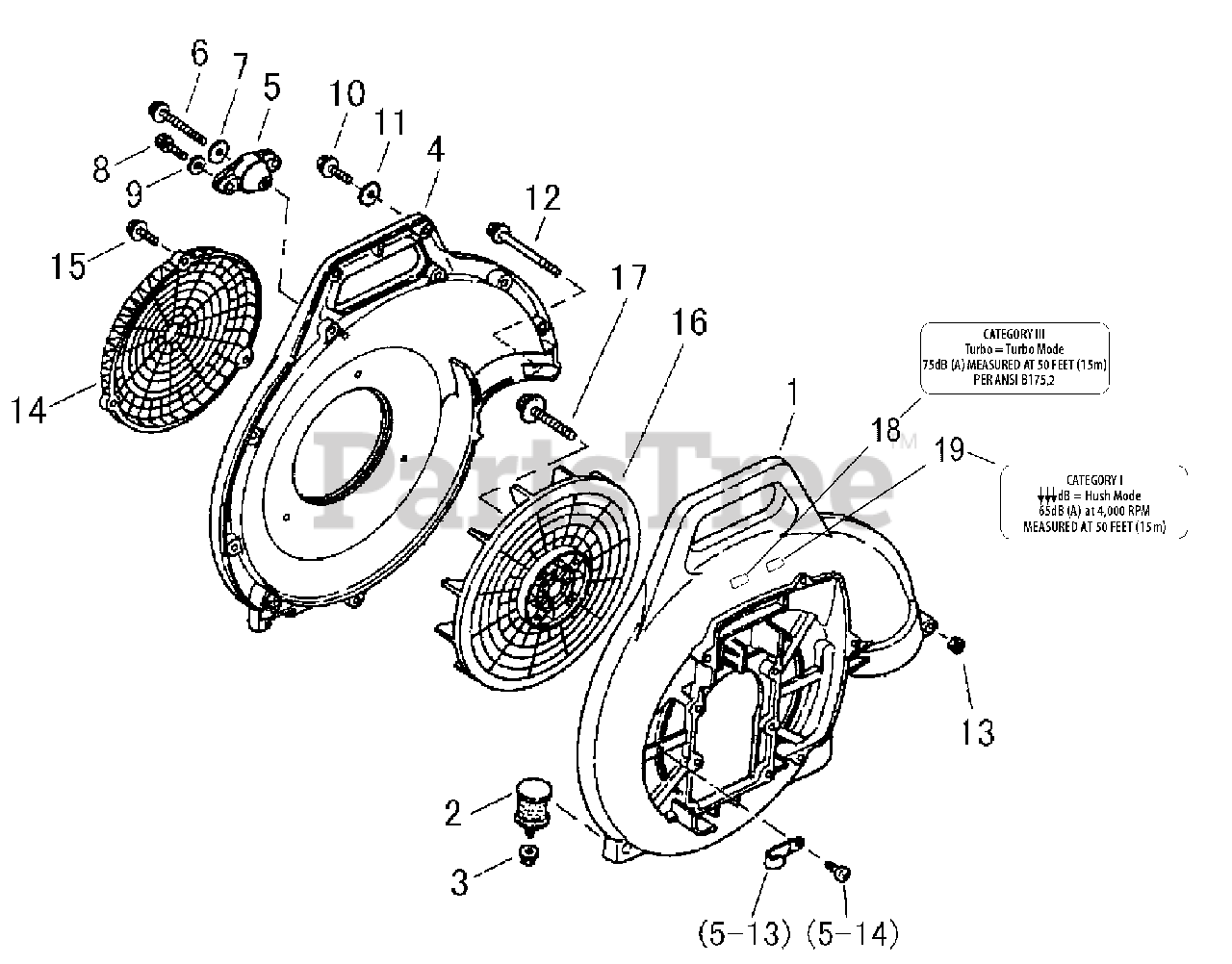

Volute S/N: 0000000 - 5060000 Parts Diagram

  • Title

1

Echo 68206-61110

COVER, FAN - OUTER
(Superseded to P021038010)

$149.99

$

Usually ships in 2-4 days

0

2

Echo 68206-61320

CUSHION
(Superseded to V402000070)

$14.99

$

In Stock, only 2 left!

0

3

Echo 11526-06202

NUT - 6 -- FLANGE
(Superseded to V264000090)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 68206-61121

COVER, FAN - LEFT
(Superseded to P021038010)

$149.99

$

Usually ships in 2-4 days

0

5

Echo 68206-61330

CUSHION
(Superseded to V401000190)

$20.99

$

In Stock, only 2 left!

0

6

Echo 68206-61340

BOLT - 5 -- TAPPING
(Superseded to V203000440)

$2.49

$

Usually ships in 2-4 days

0

7

Echo 15401-20009

COLLAR - 25X5.5X2
(Superseded to V303000130)

$8.99

$

In Stock, only 1 left!

0

8

Echo 11020-05160

SCREW - 5X16
(Superseded to V203000720)

$0.99

$

In Stock, Qty 20+

0

9

Echo 15401-10010

COLLAR
(Superseded to V303000140)

$0.99

$

In Stock, Qty 8

0

10

Echo 70140-31480

BOLT - 5X20
(Superseded to V203000450)

$1.99

$

In Stock, Qty 6

0

11

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo 11024-05700

SCREW - 5X70
(Superseded to V203000490)

$3.49

$

Usually ships in 2-4 days

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 68206-61130

COVER, INTAKE
(Superseded to E104000190)

$23.99

$

Usually ships in 2-4 days

0

15

Echo 68206-61360

BOLT - TAPPING
(Superseded to V203000500)

$1.99

$

Usually ships in 2-4 days

0

16

Echo 68206-62110

FAN
(Superseded to E100000160)

$

$

Not available

17

Echo 68206-62310

BOLT - 6X40

$7.49

$

Usually ships in 2-4 days

0

18

Echo 80950

LABEL - NOISE 75dB(A) CAT III

Note: OPTIONAL

$2.99

$

Usually ships in 2-4 days

0

19

Echo 80957

LABEL - NOISE 65dB(A) CAT I
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available
