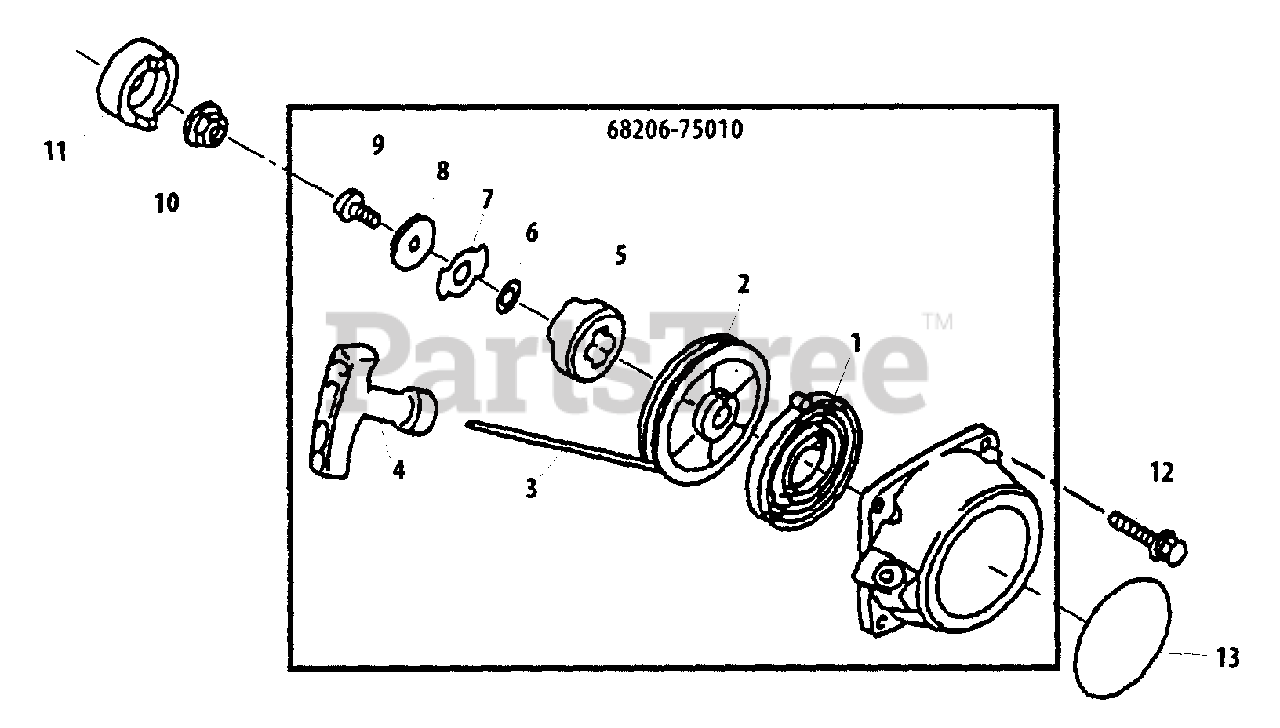

EB 630 - Shindaiwa Backpack Blower (Original Version) Starter Parts Diagram

Backpack Blower

Starter Parts Diagram

  • Title

68206-75010

Echo 68206-75010

STARTER ASSY, RECOIL
(Superseded to A051001520)

$

$

Not available

1

Echo 68206-75130

SPRING, RECOIL
(Superseded to A504000070)

$38.99

$

Usually ships in 2-4 days

0

2

Echo 68206-75120

REEL
(Superseded to A506000160)

$41.99

$

Usually ships in 2-4 days

0

3

Echo 68206-75140

ROPE
(Superseded to A509000080)

$12.99

$

Usually ships in 2-4 days

0

4

Echo 68206-75150

GRIP, STARTER
(Superseded to A511000110)

$22.99

$

Usually ships in 2-4 days

0

5

Echo 68206-75310

CAM
(Superseded to A518000030)

$24.99

$

Usually ships in 2-4 days

0

6

Echo 68206-75320

WASHER
(Superseded to V306000230)

$1.99

$

Usually ships in 2-4 days

0

7

Echo 68206-75330

RETAINER
(Superseded to A606000010)

$14.99

$

Usually ships in 2-4 days

0

8

Echo 68206-75340

WASHER
(Superseded to V306000240)

$11.99

$

Usually ships in 2-4 days

0

9

Echo 68206-75350

SCREW M8×1.25
(Superseded to V255000020)

$1.49

$

Usually ships in 2-4 days

0

10

Echo 11527-10202

NUT, FLANGE M10
(Superseded to V266000060)

Note: 14mm Standard Thread

$10.99

$

Usually ships in 2-4 days

0

11

Echo 68206-75210

PULLEY, STARTER
(Superseded to A520000100)

Note: Push Fit

$

$

Not available

12

Echo 68206-75360

BOLT M5×20
(Superseded to V203000430)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 19420-00027

LABEL, TRADE
(Superseded to X504002770)

$2.99

$

In Stock, Qty 9

0
