Parts Home > RedMax > Blowers & Vacuums > EB 7000 - RedMax Backpack Blower (SN: 100101 & Above) (2001-11) > 022 - BLOWER GROUP

EB 7000 - RedMax Backpack Blower (SN: 100101 & Above) (2001-11)

Backpack Blower

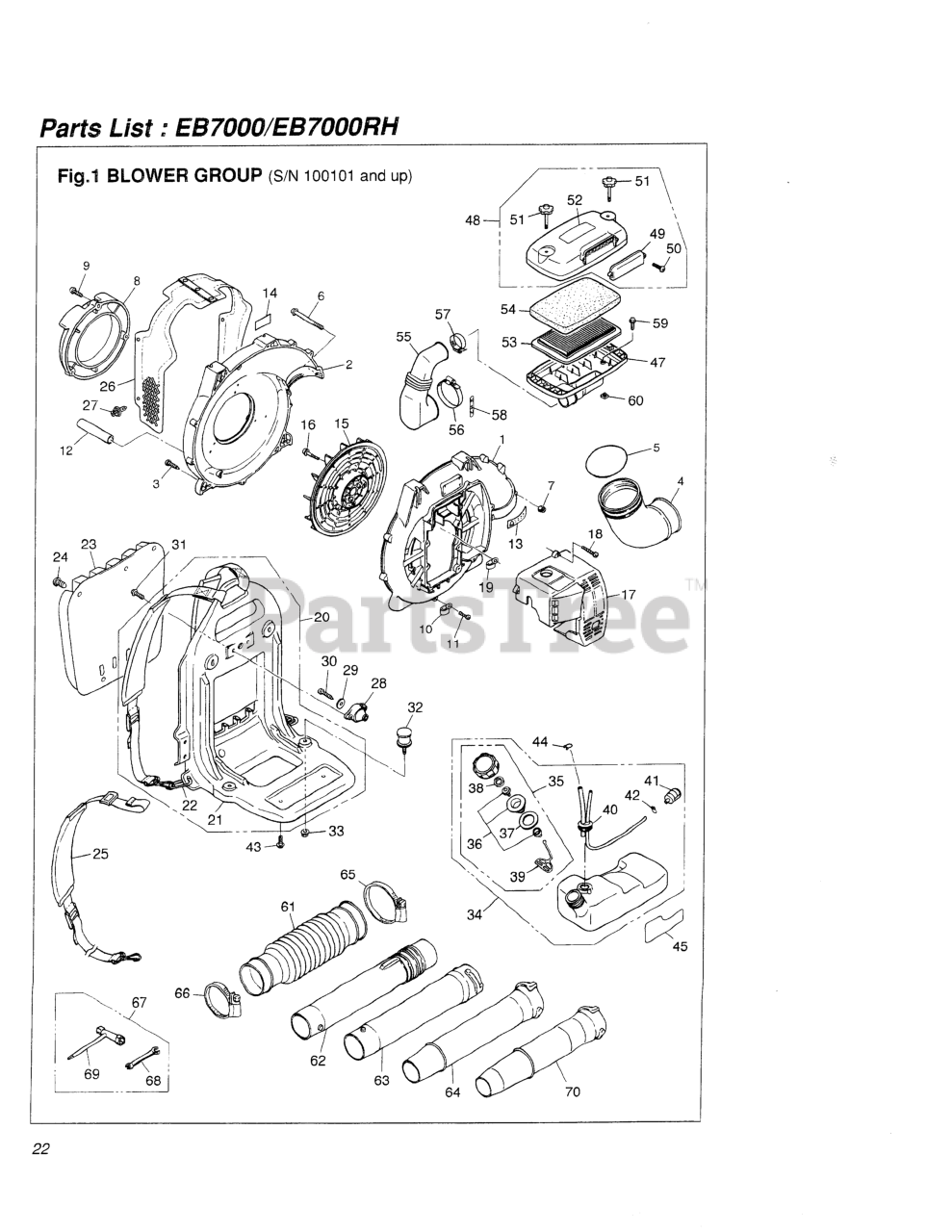

EB 7000 - RedMax Backpack Blower (SN: 100101 & Above) (2001-11) > Parts Diagrams (4) > 022 - BLOWER GROUP

  • Title
275031111

1

CASE, VOLUTE

Part# 275031111

OEM Warranty Repair Part for RedMax

Not available

275031211

2

COVER, VOLUTE (USE-31212)

Part# 275031211

OEM Warranty Repair Part for RedMax

Not available

275031150

3

SCREW, M5 X 25

Part# 275031150

OEM Warranty Repair Part for RedMax

Not available

349011150

4

2751-31410

Part# 349011150

OEM Warranty Repair Part for RedMax

Not available

0700002095

5

O-RING

Part# 0700002095

OEM Warranty Repair Part for RedMax

Not available

275031420

6

SCREW, M5 X 70

Part# 275031420

OEM Warranty Repair Part for RedMax

Not available

331053331

7

NUT (B)

Part# 331053331

OEM Warranty Repair Part for RedMax

Not available

T401231310

8

COVER, INLET

Part# T401231310

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $29.80

275031150

9

SCREW, M5 X 25

Part# 275031150

OEM Warranty Repair Part for RedMax

Not available

114072231

10

CLAMP

Part# 114072231

OEM Warranty Repair Part for RedMax

Not available

340716120

11

SCREW

Part# 340716120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.24

275031290

12

TUBE (RPLS. 07270-01507)

Part# 275031290 (Superseded to 516869801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

275031911

13

LABEL, CAUTION (RPLS -31910)

Part# 275031911

OEM Warranty Repair Part for RedMax

Not available

T401232610

14

LABEL, NET

Part# T401232610 (Superseded to 521832401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

275031510

15

FAN

Part# 275031510

OEM Warranty Repair Part for RedMax

Not available

340712210

16

BOLT (RPLS 3405-12211)

Part# 340712210

OEM Warranty Repair Part for RedMax

Not available

275031612

17

COVER, ENGINE (RPLS -31611)

Part# 275031612

OEM Warranty Repair Part for RedMax

Not available

275031150

18

SCREW, M5 X 25

Part# 275031150

OEM Warranty Repair Part for RedMax

Not available

275072230

19

CLAMP

Part# 275072230

OEM Warranty Repair Part for RedMax

Not available

T401232000

20

T4012-32001

Part# T401232000

OEM Warranty Repair Part for RedMax

Not available

T401232100

21

T4012-32101

Part# T401232100

OEM Warranty Repair Part for RedMax

Not available

349021121

22

RING (REPLACES -21120)

Part# 349021121 (Superseded to 521142801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

346021311

23

PAD (RPLS -21310)

Part# 346021311

OEM Warranty Repair Part for RedMax

Not available

349521320

24

CLIP (RPLS 3490-21320)

Part# 349521320 (Superseded to 521147201)

OEM Warranty Repair Part for RedMax

Not available

275632300

25

BAND ASSY (RPLS 2750- )

Part# 275632300

OEM Warranty Repair Part for RedMax

Not available

T401232500

26

NET COMPLETE

Part# T401232500

OEM Warranty Repair Part for RedMax

Not available

148074710

27

CLIP

Part# 148074710 (Superseded to 516342801)

OEM Warranty Repair Part for RedMax

Not available

275032510

28

DAMPER, UPPER

Part# 275032510

OEM Warranty Repair Part for RedMax

Not available

275032520

29

WASHER

Part# 275032520

OEM Warranty Repair Part for RedMax

Not available

275032530

30

SCREW

Part# 275032530

OEM Warranty Repair Part for RedMax

Not available

275032541

31

BOLT, M5 X 16 (RPLS -32540)

Part# 275032541

OEM Warranty Repair Part for RedMax

Not available

275032610

32

DAMPER, LOWER

Part# 275032610

OEM Warranty Repair Part for RedMax

Not available

275032620

33

NUT, M6

Part# 275032620

OEM Warranty Repair Part for RedMax

Not available

T401285101

34

TANK ASSY (RPLS. -85100)

Part# T401285101 (Superseded to 521835301)

OEM Warranty Repair Part for RedMax

Not available

T101585202

35

CAP ASSY (RPLS -85201)

Part# T101585202

OEM Warranty Repair Part for RedMax

Not available

450085300

36

HOLDER (REPLACES -85230)

Part# 450085300

OEM Warranty Repair Part for RedMax

Not available

450085220

37

PACKING

Part# 450085220

OEM Warranty Repair Part for RedMax

Not available

560185260

38

FILTER

Part# 560185260

OEM Warranty Repair Part for RedMax

Not available

482085260

39

STOPPER

Part# 482085260

OEM Warranty Repair Part for RedMax

Not available

T401285300

40

PIPE COMPLETE

Part# T401285300 (Superseded to 521835501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

330285400

41

FILTER ASSY

Part# 330285400

OEM Warranty Repair Part for RedMax

Not available

126085460

42

CLIP (REPLACES 2841-31280)

Part# 126085460

OEM Warranty Repair Part for RedMax

Not available

340723610

43

SCREW, M5 x 12

Part# 340723610

OEM Warranty Repair Part for RedMax

Not available

110086120

44

CLIP

Part# 110086120

OEM Warranty Repair Part for RedMax

Not available

T401285190

45

LABEL

Part# T401285190

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.60

T401282110

47

T4012-82111

Part# T401282110

OEM Warranty Repair Part for RedMax

Not available

T401282200

48

COVER ASSEMBLY

Part# T401282200

OEM Warranty Repair Part for RedMax

Not available

T401282220

49

COVER

Part# T401282220

OEM Warranty Repair Part for RedMax

Not available

275031150

50

SCREW, M5 X 25

Part# 275031150

OEM Warranty Repair Part for RedMax

Not available

T401282800

51

BOLT, KNOB

Part# T401282800

OEM Warranty Repair Part for RedMax

Not available

T401282290

52

LABEL, CLEANER (EB7000)

Part# T401282290

OEM Warranty Repair Part for RedMax

Not available

T401282311

53

ELEMENT (PAPER)

Part# T401282311

OEM Warranty Repair Part for RedMax

Not available

T401282320

54

T4012-82321

Part# T401282320

OEM Warranty Repair Part for RedMax

Not available

T401282610

55

HOSE

Part# T401282610

OEM Warranty Repair Part for RedMax

Not available

T401282620

56

BAND

Part# T401282620

OEM Warranty Repair Part for RedMax

Not available

T401282630

57

BAND

Part# T401282630

OEM Warranty Repair Part for RedMax

Not available

T401282640

58

LABEL, CHOKE

Part# T401282640

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.07

0026320520

59

0263-20520

Part# 0026320520

OEM Warranty Repair Part for RedMax

Not available

T401282710

60

NUT

Part# T401282710

OEM Warranty Repair Part for RedMax

Not available

T401751110

61

HOSE (RPLS 2750-51110)

Part# T401751110

OEM Warranty Repair Part for RedMax

Not available

275051200

62

JOINT, SWIVEL (USE 51201)

Part# 275051200

OEM Warranty Repair Part for RedMax

Not available

681151210

63

6811-51211

Part# 681151210

OEM Warranty Repair Part for RedMax

Not available

681151220

64

PIPE, END

Part# 681151220

OEM Warranty Repair Part for RedMax

Not available

275651510

65

CLAMP (RPLS 3490- )

Part# 275651510

OEM Warranty Repair Part for RedMax

Not available

275651520

66

CLAMP (RPLS 3050-13230)

Part# 275651520

OEM Warranty Repair Part for RedMax

Not available

275091000

67

TOOL SET

Part# 275091000

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $13.04

354091120

68

SPANNER, 8 X 10 (RPLS 2540- )

Part# 354091120 (Superseded to 521176201)

OEM Warranty Repair Part for RedMax

Not available

275091130

69

WRENCH, SOCKET

Part# 275091130

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $9.13

275651220

70

KIT, NOZZLE (USE 2756-51221)

Part# 275651220

OEM Warranty Repair Part for RedMax

Not available
