EB 802 - Shindaiwa Backpack Blower (Original Version) Fuel Tank Parts Diagram

Backpack Blower

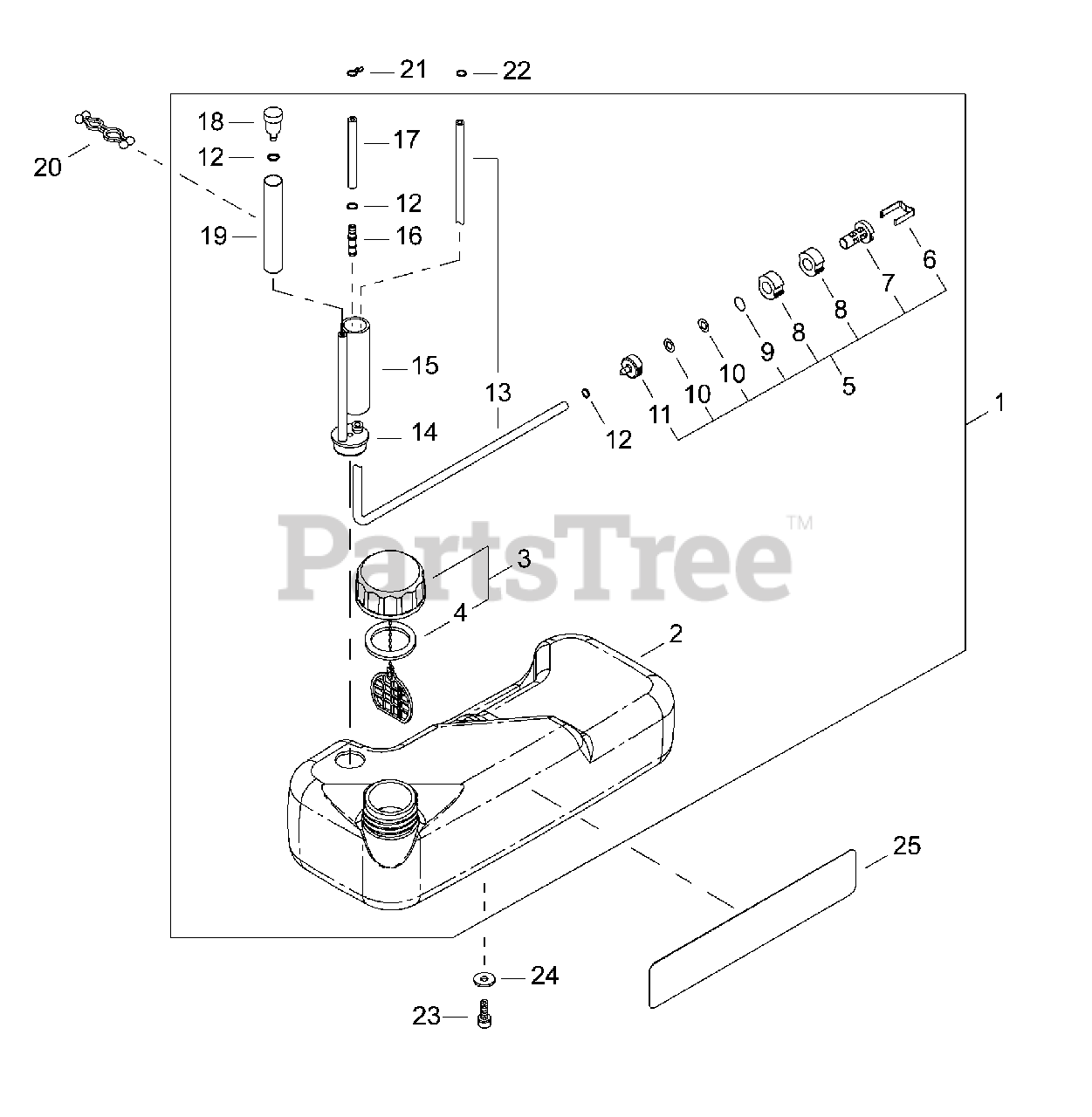

Fuel Tank Parts Diagram

  • Title

1

Echo 68913-85010

TANK ASSY, FUEL
(Superseded to A038000060)

$

$

Not available

2

Echo 68206-85110

TANK, FUEL
(Superseded to A350001050)

$

$

Not available

3

Echo 68204-85020

CAP ASSY, FUEL
(Superseded to A033000020)

$10.99

$

In Stock, Qty 20+

0

4

Echo 20000-85221

GASKET, FUEL CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 17

0

5

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.99

$

In Stock, Qty 20+

0

6

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.99

$

In Stock, Qty 20+

0

7

Echo 22128-85470

BODY, FUEL FILTER
(Superseded to A372000000)

$

$

Not available

8

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 11

0

9

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.99

$

In Stock, Qty 20+

0

10

Echo 22118-85460

SCREEN, FILTER
(Superseded to A371000010)

$9.99

$

In Stock, Qty 20+

0

11

Echo 22128-85410

WEIGHT, FUEL LINE
(Superseded to 13120519831)

$9.99

$

In Stock, Qty 20+

0

12

Echo 20020-85540

CLIP Ø6
(Superseded to V490000500)

$1.49

$

In Stock, Qty 20+

0

13

Echo 68913-85310

PIPE, FUEL
(Superseded to V471002410)

$3.49

$

In Stock, Qty 20+

0

14

Echo V470000890

GROMMET, FUEL W/VENT PIPE

$6.99

$

In Stock, Qty 12

0

15

Echo 68913-85330

SLEEVE
(Superseded to V471002440)

$0.99

$

In Stock, only 4 left!

0

16

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$2.49

$

In Stock, Qty 20+

0

17

Echo 68913-85320

PIPE, FUEL RETURN
(Superseded to V471002430)

$1.99

$

In Stock, only 3 left!

0

18

Echo 20035-85522

VENT ASSY
(Superseded to A356000040)

$7.49

$

In Stock, Qty 20+

0

19

Echo 72935-85530

TUBE, INSULATOR
(Superseded to V471002420)

$1.99

$

In Stock, Qty 5

0

20

Echo 72935-85550

CLIP
(Superseded to V491000250)

$1.49

$

In Stock, Qty 7

0

21

Echo 37013-85310

CLIP, SPRING Ø5.2
(Superseded to V490000510)

$1.49

$

In Stock, Qty 12

0

22

Echo 20020-85540

CLIP Ø6
(Superseded to V490000500)

$1.49

$

In Stock, Qty 20+

0

23

Echo 11060-05140

BOLT, ADHESIVE M5×14
(Superseded to V203000470)

$1.99

$

Usually ships in 2-4 days

0

24

Echo 15401-10010

WASHER Ø15×Ø5.2×1.6
(Superseded to V303000140)

$1.49

$

In Stock, Qty 6

0

25

Echo 19420-00108

LABEL, SHINDAIWA PROFESSIONAL

$5.99

$

Usually ships in 2-4 days

0
