EB 802 - Shindaiwa Backpack Blower (SN: T13512001001 - T13512999999) Intake Parts Diagram

Backpack Blower

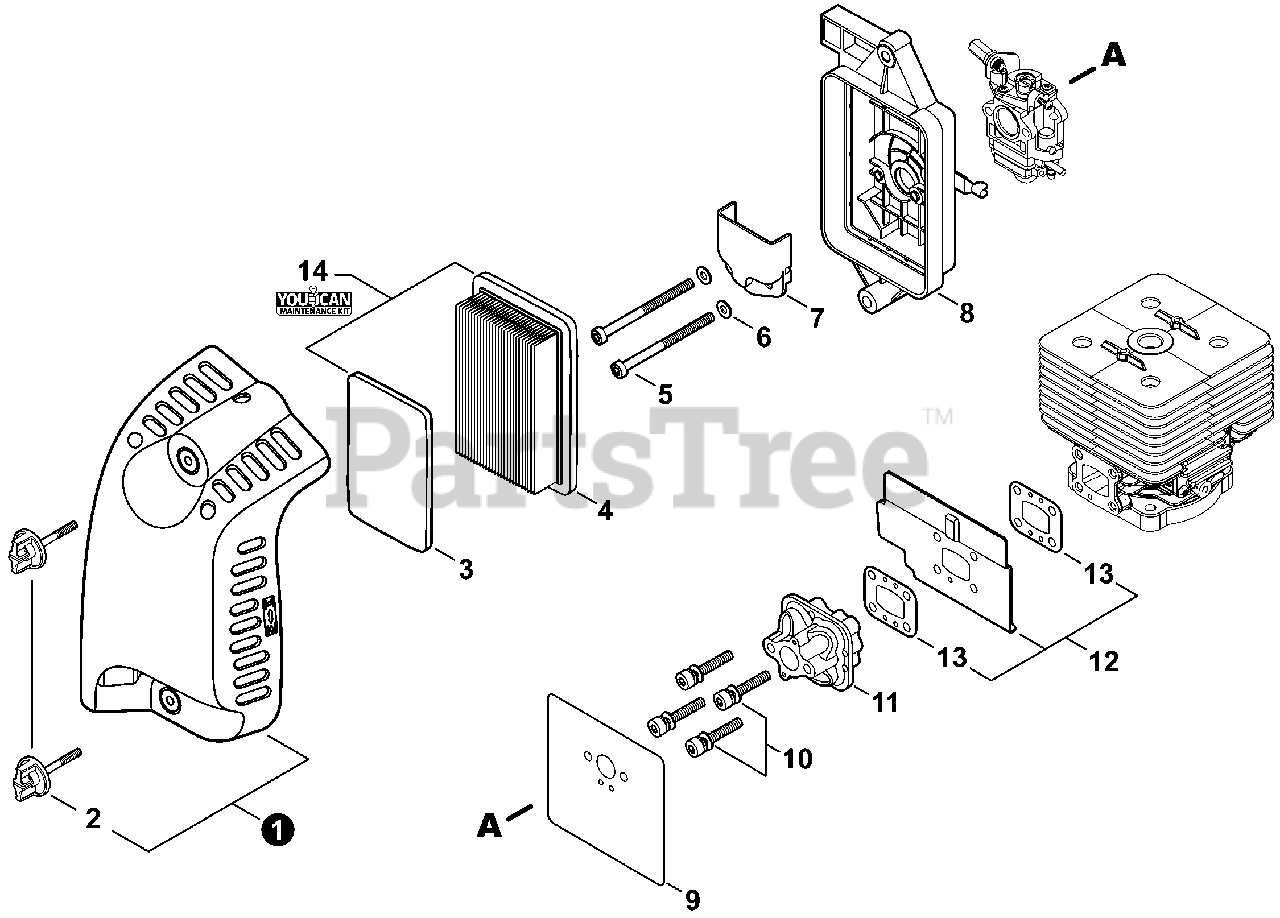

Intake Parts Diagram

  • Title

1

Echo P021038890

COVER ASSY, AIR FILTER

Note: Includes ITEM 2

$30.99

$

In Stock, Qty 6

0

2

Echo A235000000

THUMBSCREW

$5.99

$

In Stock, Qty 8

0

3

Echo A226000540

PRE-FILTER, FOAM

Note: Included in Tune-up Kit

$4.99

$

In Stock, Qty 20+

0

4

Echo A226000531

FILTER, AIR

Note: Included in Tune-up Kit

$32.99

$

In Stock, Qty 20+

0

5

Echo 9110905070

BOLT SS M5×70

$3.49

$

In Stock, Qty 5

0

6

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

7

Echo A244000110

PLATE, DEFLECTOR

$5.49

$

In Stock, Qty 9

0

8

Echo P021039421

CASE, AIR FILTER

$24.99

$

In Stock, only 4 left!

0

9

Echo V103000640

GASKET, INTAKE

Note: Included in Short block 1112

$2.99

$

In Stock, Qty 20+

0

10

Echo V203000480

BOLT SS M5×30

$4.99

$

In Stock, only 2 left!

0

11

Echo A200000420

INSULATOR, INTAKE

$15.99

$

In Stock, only 2 left!

0

12

Echo A209000210

SHIELD ASSY, INTAKE HEAT

Note: Includes ITEM 13

$14.99

$

Usually ships in 2-4 days

0

13

Echo V103000630

GASKET, INTAKE

Note: Included in Short block 1112

$3.49

$

In Stock, only 2 left!

0

14

Echo 84018Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$56.99

$

Usually ships in 2-4 days

0
