EB 8510 RT - Shindaiwa Backpack Blower Carburetor Parts Diagram

Backpack Blower

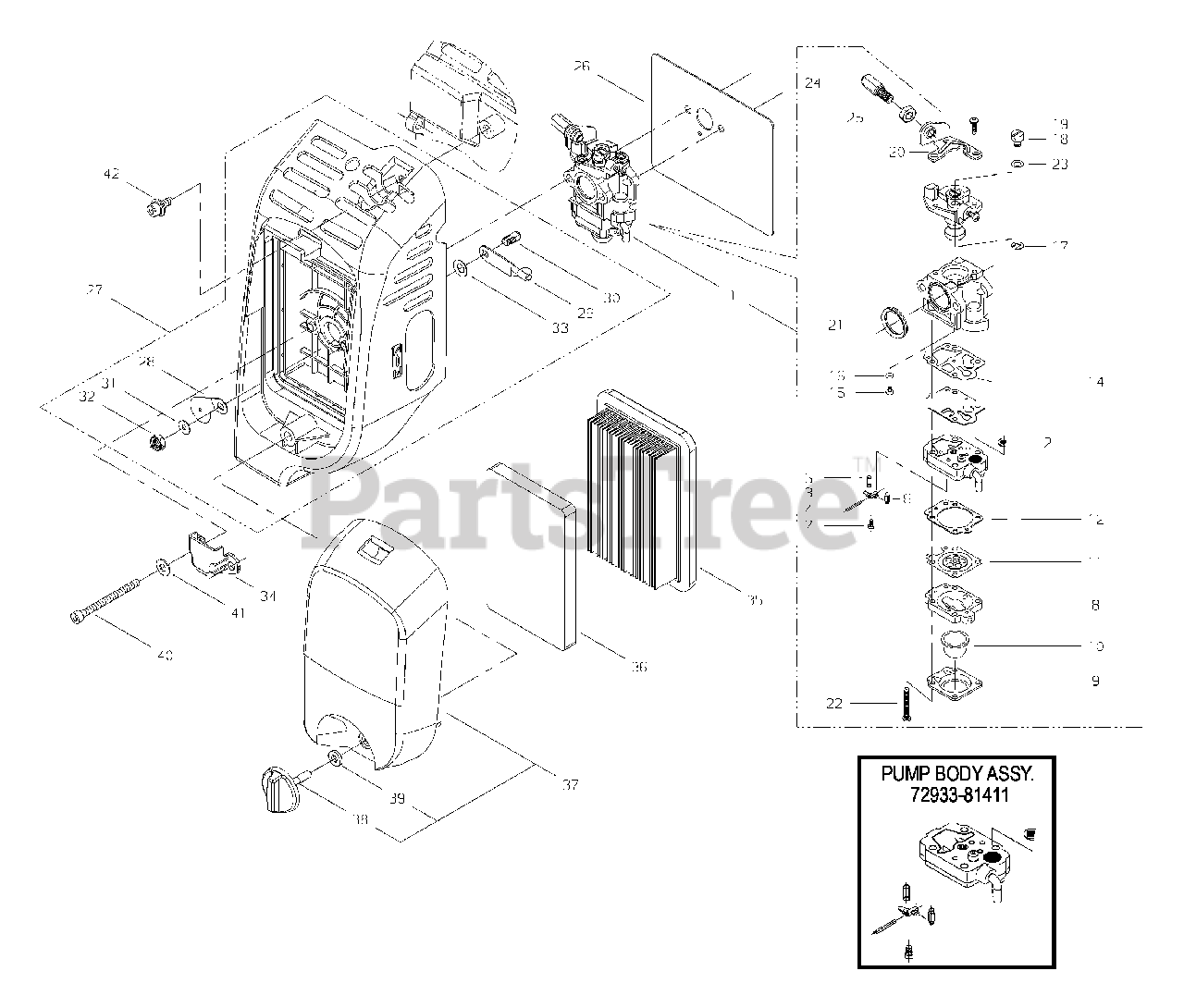

Carburetor Parts Diagram

  • Title

1

Echo 68900-81011

CARBURETOR
(Superseded to A021002060)

Note: Includes ITEMS 1-25

$135.99

$

Usually ships in 2-4 days

0

2

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 20+

0

3

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

4

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

5

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

6

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

7

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

8

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, Qty 20+

0

9

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

10

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

11

Echo 37013-81310

DIAPHRAGM, METERING
(Superseded to P003000090)

$17.99

$

In Stock, only 1 left!

0

12

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 3 left!

0

13

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

Usually ships in 2-4 days

0

14

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

Usually ships in 2-4 days

0

15

Echo 68900-81330

JET, MAIN

$12.99

$

Usually ships in 2-4 days

0

16

Echo 70097-81220

O-RING
(Superseded to 12318340630)

$1.99

$

In Stock, Qty 5

0

17

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

18

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

19

Echo 70097-81290

SCREW
(Superseded to 12311440630)

$2.49

$

In Stock, only 3 left!

0

20

Echo 20089-81130

BRACKET, CABLE
(Superseded to 12312854230)

$5.49

$

Usually ships in 2-4 days

0

21

Echo 72933-81250

SEAL
(Superseded to 12314312110)

$4.49

$

In Stock, Qty 8

0

22

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

23

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

24

Echo 20089-81110

NUT, CABLE ADJUST

$

$

Not available

25

Echo 20036-81120

NUT
(Superseded to 12315356430)

$1.49

$

In Stock, only 4 left!

0

26

Echo 68900-81210

GASKET
(Superseded to V103000650)

$4.99

$

In Stock, Qty 12

0

27

Echo 68900-82010

AIR FILTER CASE ASSY
(Superseded to 68900-82011)

Note: Includes ITEMS 27-33

$50.99

$

Usually ships in 2-4 days

0

28

Echo 20018-81711

PLATE, CHOKE
(Superseded to 20018-81711-B)

$3.49

$

Usually ships in 2-4 days

0

29

Echo 20870-82120

LEVER, CHOKE
(Superseded to A242000120)

$1.99

$

In Stock, only 4 left!

0

30

Echo 20110-82140

SHAFT, CHOKE
(Superseded to E140000090)

$4.49

$

In Stock, only 2 left!

0

31

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, Qty 17

0

32

Echo 11524-06211

NUT - 6
(Superseded to V264000110)

$1.99

$

In Stock, only 1 left!

0

33

Echo 20024-81790

WASHER - CONICAL
(Superseded to V347000030)

$0.99

$

In Stock, Qty 20+

0

34

Echo 68900-82311

DEFLECTOR PLATE
(Superseded to A244000110)

$4.49

$

In Stock, Qty 11

0

35

Echo 68900-82120

FILTER, AIR
(Superseded to A226000530)

$27.99

$

In Stock, Qty 20+

0

36

Echo 68900-82320

PRE-FILTER
(Superseded to A226000560)

$2.49

$

In Stock, only 2 left!

0

37

Echo 68900-82030

AIR FILTER COVER ASSY
(Superseded to P021029530)

Note: Includes ITEMS 37-39

$38.99

$

Usually ships in 2-4 days

0

38

Echo A235000270

THUMBSCREW

$6.49

$

In Stock, Qty 14

0

39

Echo V323000080

WASHER - VINYL

$0.99

$

In Stock, Qty 18

0

40

Echo 01020-05650

SCREW - 5X65
(Superseded to 9110005065)

$0.99

$

In Stock, Qty 20+

0

41

Echo 01612-00500

WASHER - 5
(Superseded to 90060200005)

$0.99

$

In Stock, Qty 20+

0

42

Echo 11024-05140

SCREW - 5X14
(Superseded to V203001140)

$0.99

$

In Stock, only 1 left!

0
