EB 8510 - Shindaiwa Backpack Blower Cylinder, Muffler Parts Diagram

Backpack Blower

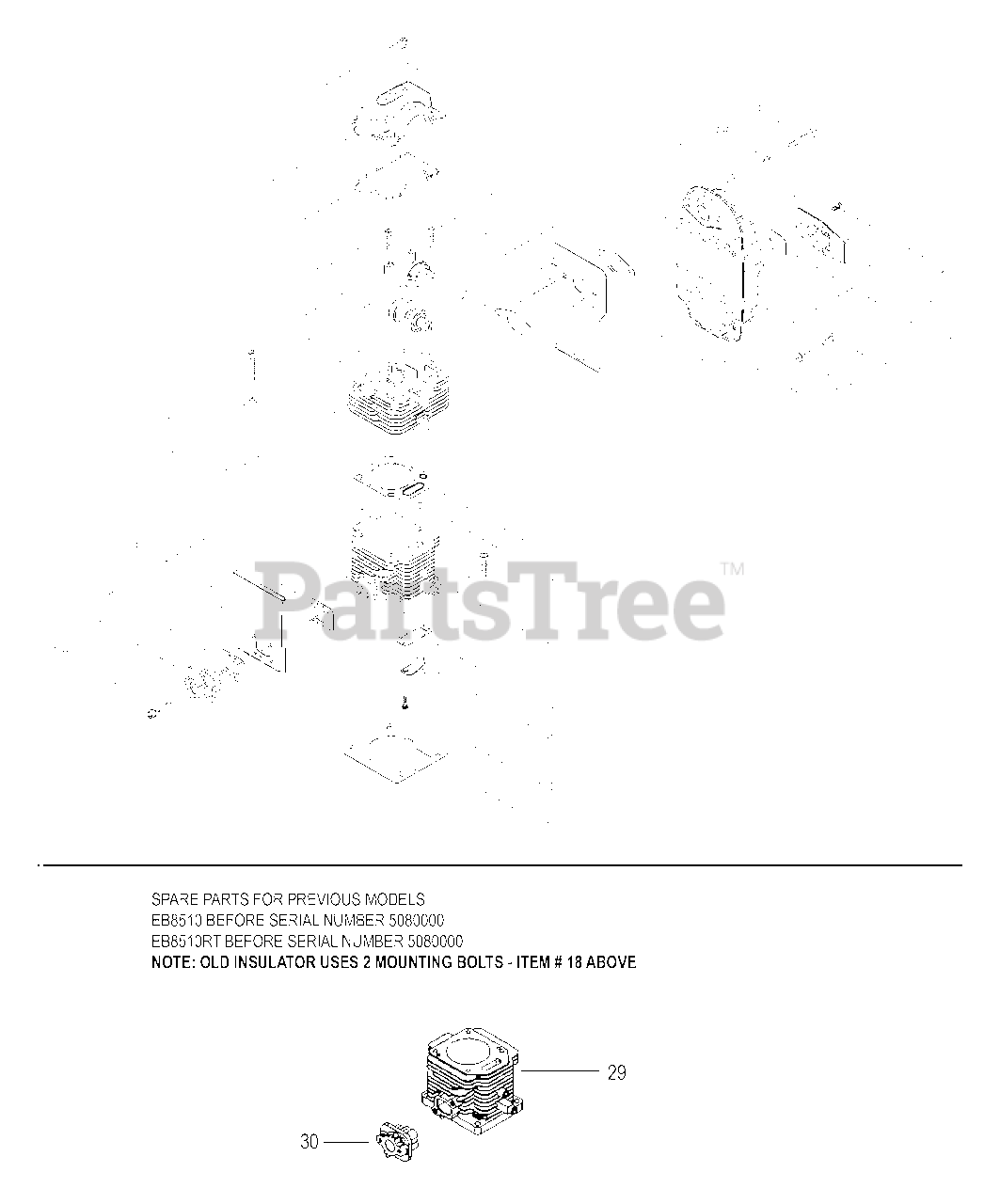

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 68900-11020

CYLINDER HEAD ASSY
(Superseded to 68900-11021)

Note: Includes ITEMS 1-2

$

$

Not available

2

Echo 01020-05220

BOLT M5×22
(Superseded to 90010505022)

$1.49

$

Usually ships in 2-4 days

0

3

Echo 68900-11260

GASKET
(Superseded to V101000010)

$8.49

$

Usually ships in 2-4 days

0

4

Echo 01020-06350

BOLT 6×35
(Superseded to 90010506035)

$1.49

$

In Stock, Qty 20+

0

5

Echo 11620-10001

WASHER 11×6.4×1.5

$0.99

$

Usually ships in 2-4 days

0

6

Echo 68900-11270

COVER, VALVE
(Superseded to A137000010)

$18.99

$

Usually ships in 2-4 days

0

7

Echo 68900-11280

GASKET
(Superseded to 68900-11281)

$8.49

$

Usually ships in 2-4 days

0

8

Echo 01020-05140

BOLT 5×14
(Superseded to 11230-05140)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 68900-12111

CYLINDER

$116.99

$

Usually ships in 2-4 days

0

10

Echo 68900-12121

GASKET, CYLINDER
(Superseded to V100000330)

$3.99

$

Usually ships in 2-4 days

0

11

Echo 01020-06250

BOLT 6×25
(Superseded to 90010506025)

$1.49

$

In Stock, Qty 20+

0

12

Echo 68900-12310

VALVE ASSY, REED
(Superseded to A024000030)

$46.99

$

Usually ships in 2-4 days

0

13

Echo 68900-12320

GASKET, REED VALVE
(Superseded to V109000080)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 01210-04140

SCREW M4×14
(Superseded to 9146104014)

$1.49

$

Usually ships in 2-4 days

0

15

Echo 68900-12211

INSULATOR
(Superseded to A200000430)

$23.99

$

In Stock, only 1 left!

0

16

Echo 68900-12332

SHIELD ASSY, INTAKE HEAT
(Superseded to A209000230)

Note: Includes ITEMS 16-17

$10.99

$

Usually ships in 2-4 days

0

17

Echo 68900-12220

GASKET, INTAKE
(Superseded to V103000630)

$3.49

$

In Stock, Qty 12

0

18

Echo 11022-05305

BOLT SS M5×30
(Superseded to V203000480)

$4.99

$

In Stock, only 2 left!

0

19

Echo 12492-40080

PIN, LOCATING Ø4×8
(Superseded to V622000040)

$1.49

$

In Stock, Qty 14

0

20

Echo 68900-15010

MUFFLER ASSY
(Superseded to 68900-15011)

Note: Includes ITEMS 20-23

$135.99

$

Usually ships in 2-4 days

0

21

Echo 68900-15130

SCREEN, SPARK ARRESTER
(Superseded to A310000160)

$3.49

$

Usually ships in 2-4 days

0

22

Echo 68900-15160

GUIDE, EXHAUST
(Superseded to A313001211)

$6.99

$

Usually ships in 2-4 days

0

23

Echo 01210-05086

SCREW M5×8
(Superseded to 9133805008)

$1.49

$

Usually ships in 2-4 days

0

24

Echo 68900-15210

DEFLECTOR ASSY, EXHAUST HEAT
(Superseded to V104001070)

$13.99

$

Usually ships in 2-4 days

0

25

Echo 68900-15320

GASKET, EXHAUST
(Superseded to V104001080)

$3.49

$

Usually ships in 2-4 days

0

26

Echo 01020-06355

BOLT SS M6×35
(Superseded to 9110906035)

$2.99

$

Usually ships in 2-4 days

0

27

Echo 01020-06160

BOLT 6×16
(Superseded to 90010506016)

$1.49

$

In Stock, Qty 7

0

28

Echo 01610-06080

WASHER 6.5×11.5×0.8
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 20+

0

29

Echo 68900-12110

CYLINDER
(Superseded to 68900-12111)

Note: Spare Parts For Pervious Models

$116.99

$

Usually ships in 2-4 days

0

30

Echo 68900-12210

INSULATOR
(Superseded to 68900-12211)

Note: Spare Parts For Pervious Models

$23.99

$

In Stock, only 1 left!

0
