EB 8520 - Shindaiwa Backpack Blower Cylinder Head Parts Diagram

Backpack Blower

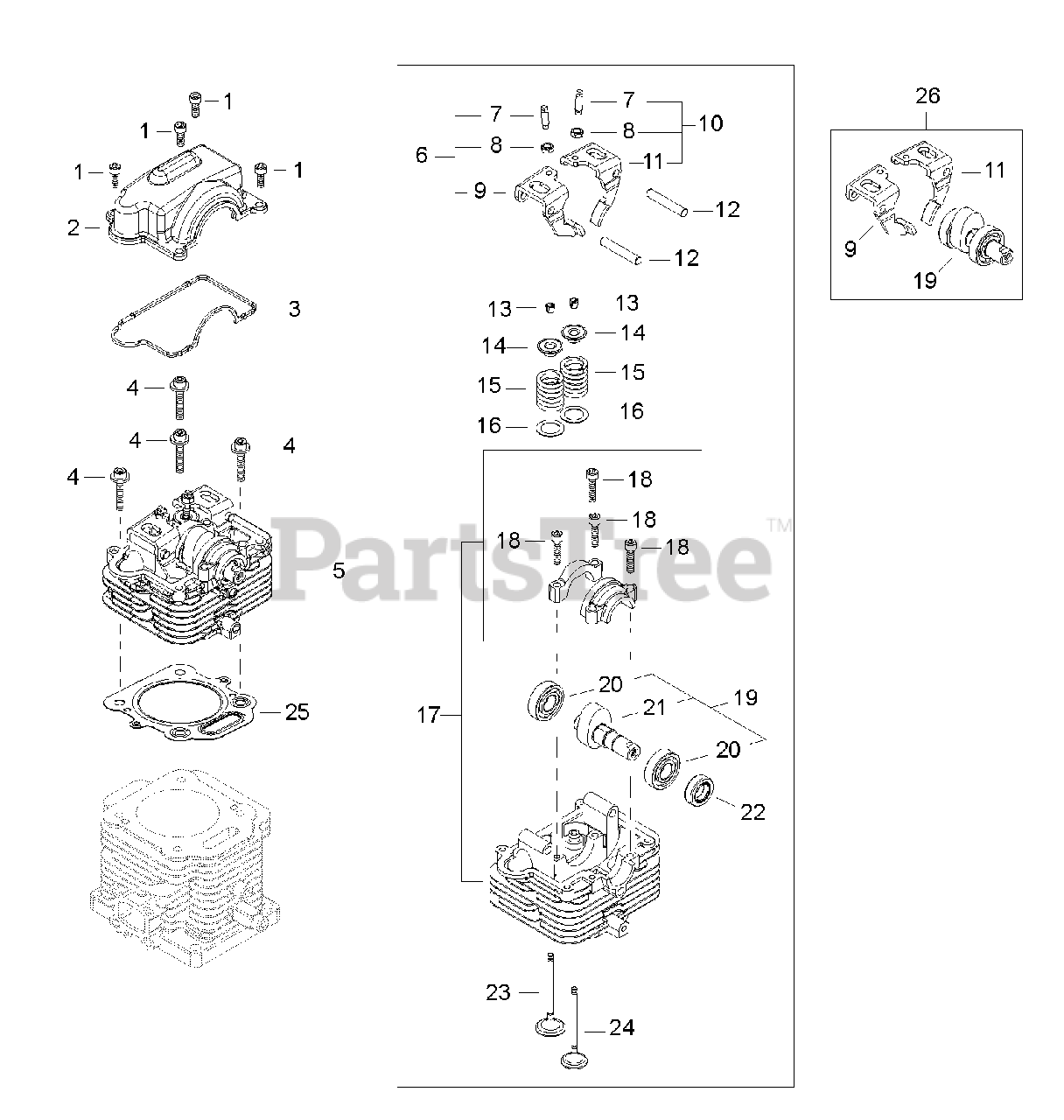

Cylinder Head Parts Diagram

  • Title

1

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, only 2 left!

0

2

Echo 68900-11271

COVER, VALVE
(Superseded to A137000010)

$17.99

$

Usually ships in 2-4 days

0

3

Echo 68900-11281

GASKET, VALVE COVER
(Superseded to V109000070)

$7.99

$

Usually ships in 2-4 days

0

4

Echo 11035-06350

SCREW - 6X35 -- FLANGE
(Superseded to V204000400)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 68915-98350

CYLINDER HEAD ASSY
(Superseded to P021029690)

$326.99

$

In Stock, only 1 left!

0

6

Echo 68900-13031

CAM FOLLOWER ASSY A
(Superseded to A610000030)

$30.99

$

Usually ships in 2-4 days

0

7

Echo 68900-13140

SCREW, ADJUST
(Superseded to A613000000)

$2.49

$

Usually ships in 2-4 days

0

8

Echo 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 68900-13121

CAM FOLLOWER A
(Superseded to A610000020)

$48.99

$

Usually ships in 2-4 days

0

10

Echo 68900-13021

CAM FOLLOWER ASSY B
(Superseded to A610000010)

$30.99

$

Usually ships in 2-4 days

0

7

Echo 68900-13140

SCREW, ADJUST
(Superseded to A613000000)

$2.49

$

Usually ships in 2-4 days

0

8

Echo 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)

$1.49

$

Usually ships in 2-4 days

0

11

Echo 68900-13131

CAM FOLLOWER B
(Superseded to A610000040)

$48.99

$

In Stock, only 1 left!

0

12

Echo 12492-60350

ROLLER
(Superseded to V624000060)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 68900-11250

VALVE KEEPER
(Superseded to A605000010)

$2.49

$

Usually ships in 2-4 days

0

14

Echo 68900-11240

RETAINER
(Superseded to A606000030)

$40.99

$

Usually ships in 2-4 days

0

15

Echo 68900-11230

SPRING, VALVE
(Superseded to A604000000)

$3.99

$

Usually ships in 2-4 days

0

16

Echo 68900-11330

WASHER
(Superseded to V393000000)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 68913-11022

HEAD, CYLINDER

$109.99

$

Usually ships in 2-4 days

0

18

Echo 01020-05220

SCREW - 5X22
(Superseded to 90010505022)

$1.49

$

Usually ships in 2-4 days

0

19

Echo 68900-13010

CAMSHAFT ASSY
(Superseded to A621000000)

$75.99

$

Usually ships in 2-4 days

0

20

Echo 02030-06001

BEARING, BALL - 6001
(Superseded to 90080036001)

$10.99

$

In Stock, only 2 left!

0

21

Echo 68900-13110

CAMSHAFT
(Superseded to A621000010)

$49.99

$

Usually ships in 2-4 days

0

22

Echo 62901-42260

SEAL, OIL - 12
(Superseded to V505000020)

$6.99

$

In Stock, Qty 20+

0

23

Echo 68900-11210

VALVE, INTAKE
(Superseded to A603000020)

$16.99

$

In Stock, only 2 left!

0

24

Echo 68900-11220

EXHAUST
(Superseded to A603000030)

$21.99

$

In Stock, only 2 left!

0

25

Echo 68913-11260

GASKET, HEAD
(Superseded to V101000000)

$20.99

$

In Stock, only 3 left!

0

26

Echo 68900-98390

CAM KIT
(Superseded to P021029550)

$134.99

$

Usually ships in 2-4 days

0
