EB 8520 - Shindaiwa Backpack Blower Volute Parts Diagram

Backpack Blower

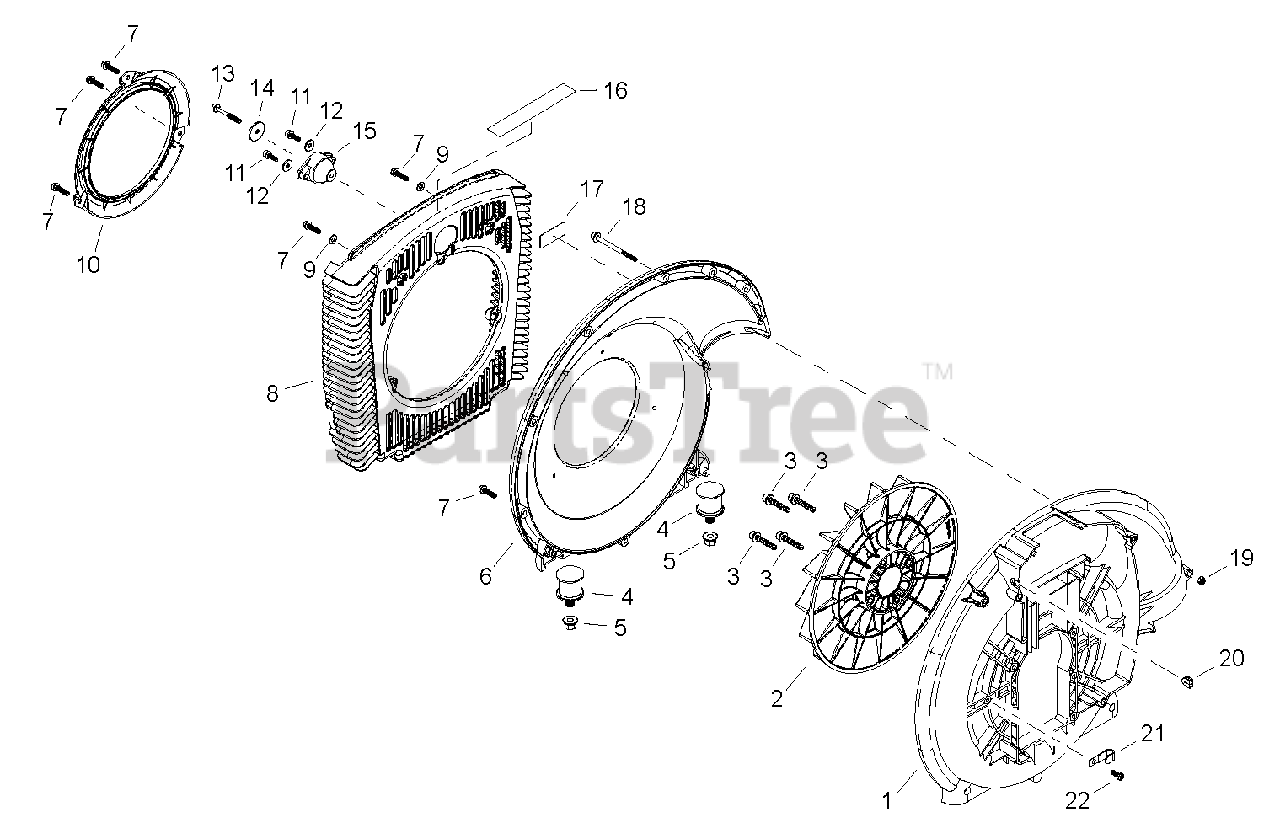

Volute Parts Diagram

  • Title

1

Echo 68900-61113

COVER, FAN - OUTER
(Superseded to E103000880)

$66.99

$

In Stock, only 1 left!

0

2

Echo 1734307001

IMPELLER
(Superseded to E100000170)

$89.99

$

Usually ships in 2-4 days

0

3

Echo 11024-06351

SCREW - 6X35
(Superseded to V204000390)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 68206-61320

CUSHION
(Superseded to V402000070)

$16.99

$

Usually ships in 2-4 days

0

5

Echo 11526-06202

NUT - 6 -- FLANGE
(Superseded to V264000090)

$1.49

$

Usually ships in 2-4 days

0

6

Echo 68900-61121

COVER, FAN - INNER
(Superseded to E103000870)

$70.99

$

Usually ships in 2-4 days

0

7

Echo 70140-31480

BOLT - 5X20
(Superseded to V203000450)

$1.99

$

In Stock, Qty 5

0

8

Echo 68913-61131

COVER, INTAKE
(Superseded to E104000171)

$22.99

$

In Stock, only 1 left!

0

9

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 68900-61310

FUNNEL
(Superseded to A161000100)

$7.99

$

Usually ships in 2-4 days

0

11

Echo 11020-05160

SCREW - 5X16
(Superseded to V203000720)

$1.49

$

In Stock, only 2 left!

0

12

Echo 15401-10010

COLLAR
(Superseded to V303000140)

$1.49

$

In Stock, Qty 6

0

13

Echo 68206-61340

BOLT - 5 -- TAPPING
(Superseded to V203000440)

$2.49

$

Usually ships in 2-4 days

0

14

Echo 15401-20009

COLLAR - 25X5.5X2
(Superseded to V303000130)

$10.99

$

In Stock, only 1 left!

0

15

Echo 68206-61330

CUSHION
(Superseded to V401000190)

$25.99

$

In Stock, only 2 left!

0

16

Echo 19402-00290

LABEL - CAUTION
(Superseded to X505002750)

$4.49

$

Usually ships in 2-4 days

0

17

Echo 19402-00178

LABEL - CAUTION
(Superseded to X505002760)

$1.49

$

Usually ships in 2-4 days

0

18

Echo 11024-05700

SCREW - 5X70
(Superseded to V203000490)

$4.49

$

Usually ships in 2-4 days

0

19

Echo 11500-05001

NUT - 5
(Superseded to V263000110)

$1.49

$

In Stock, Qty 6

0

20

Echo 22100-31531

GROMMET
(Superseded to V144000250)

$1.49

$

In Stock, Qty 6

0

21

Echo 68206-71370

CLAMP
(Superseded to V490000480)

$1.49

$

Usually ships in 2-4 days

0

22

Echo 01280-05142

SCREW - 5X14 -- TAPPING
(Superseded to 9144905014)

$3.49

$

Usually ships in 2-4 days

0
