EB 910 RT - Shindaiwa Backpack Blower (SN: P57312001001 - P57312999999) STARTER Parts Diagram

Backpack Blower

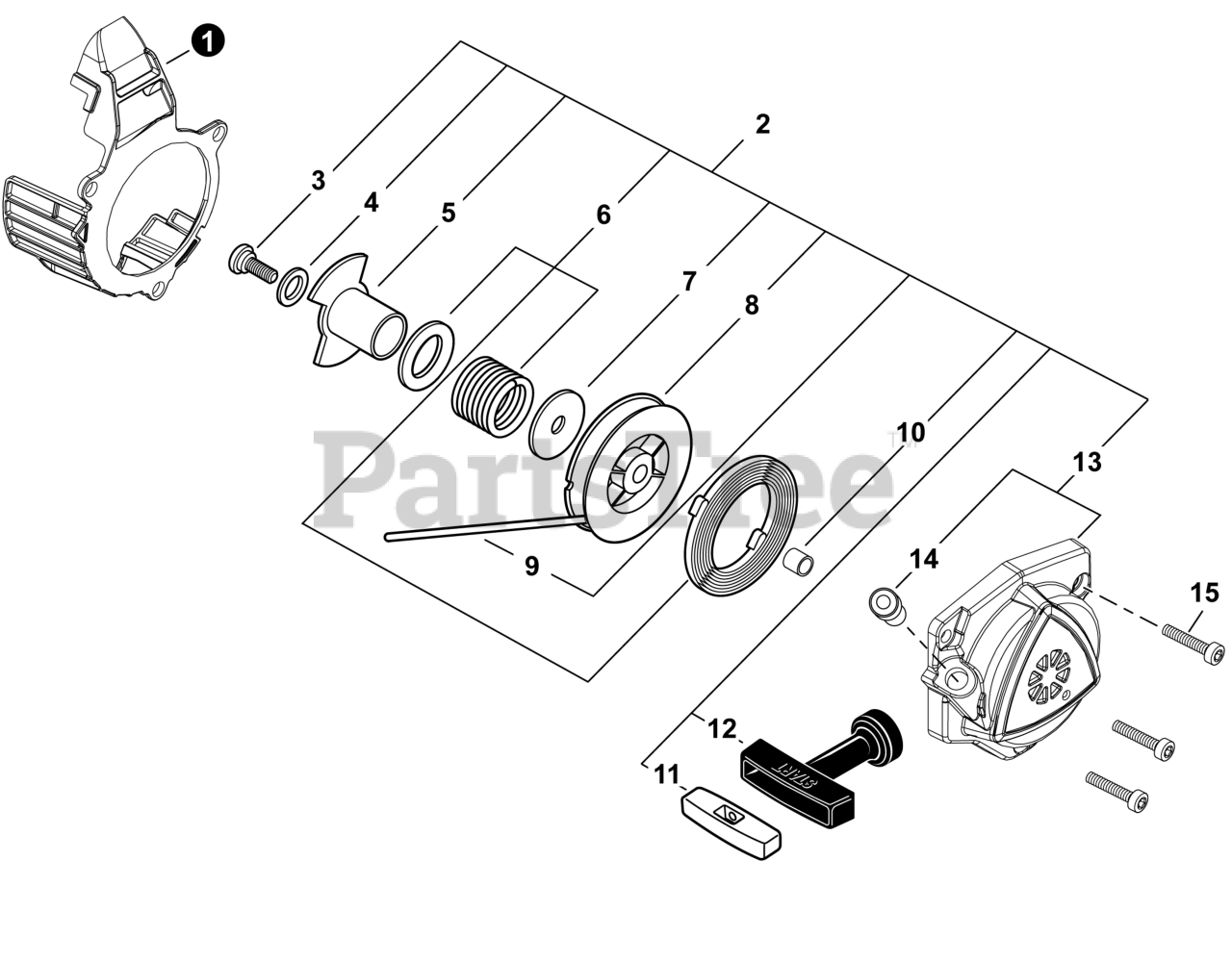

STARTER Parts Diagram

  • Title

1

Echo V376002611

GUARD, DEBRIS

$1.99

$

In Stock, only 4 left!

0

2

Echo A051003412

STARTER ASSY, RECOIL

Note: Includes Items 3-14

$42.99

$

Usually ships in 2-4 days

0

3

Echo V253000310

SCREW 5

Note: +

$1.99

$

In Stock, Qty 20+

0

4

Echo P022052850

WASHER, THRUST

Note: +

$1.99

$

In Stock, only 4 left!

0

5

Echo P022052880

PLATE, FRICTION

Note: +

$5.99

$

In Stock, Qty 20+

0

6

Echo P022068210

KIT, SPRING

Note: +

$19.99

$

Usually ships in 2-4 days

0

7

Echo P022057340

WASHER 20.7
(Superseded to P022052860)

Note: +

$2.49

$

In Stock, Qty 12

0

8

Echo P022052820

REEL, ROPE

Note: +

$8.49

$

In Stock, Qty 20+

0

9

Echo P022052840

ROPE, STARTER

Note: +

$7.49

$

Usually ships in 2-4 days

0

10

Echo P022052890

COLLAR

Note: +

$5.49

$

In Stock, Qty 6

0

11

Echo P022010260

RETAINER, ROPE

Note: +

$3.49

$

In Stock, Qty 10

0

12

Echo 17722811620

GRIP, STARTER

Note: +

$13.99

$

In Stock, only 2 left!

0

13

Echo P022052810

CASE, STARTER

Note: Includes Item 14+

$29.99

$

In Stock, only 4 left!

0

14

Echo P022045770

GUIDE, ROPE

Note: ++

$4.49

$

In Stock, only 4 left!

0

15

Echo V253000990

BOLT 5x20

$1.99

$

In Stock, Qty 20+

0
