EB10000 AH (EBVC) - Honda Generator, Made in China (SN: EBVC-1000001 - EBVC-9999999) IGNITION COIL Parts Diagram

Generator, Made in China

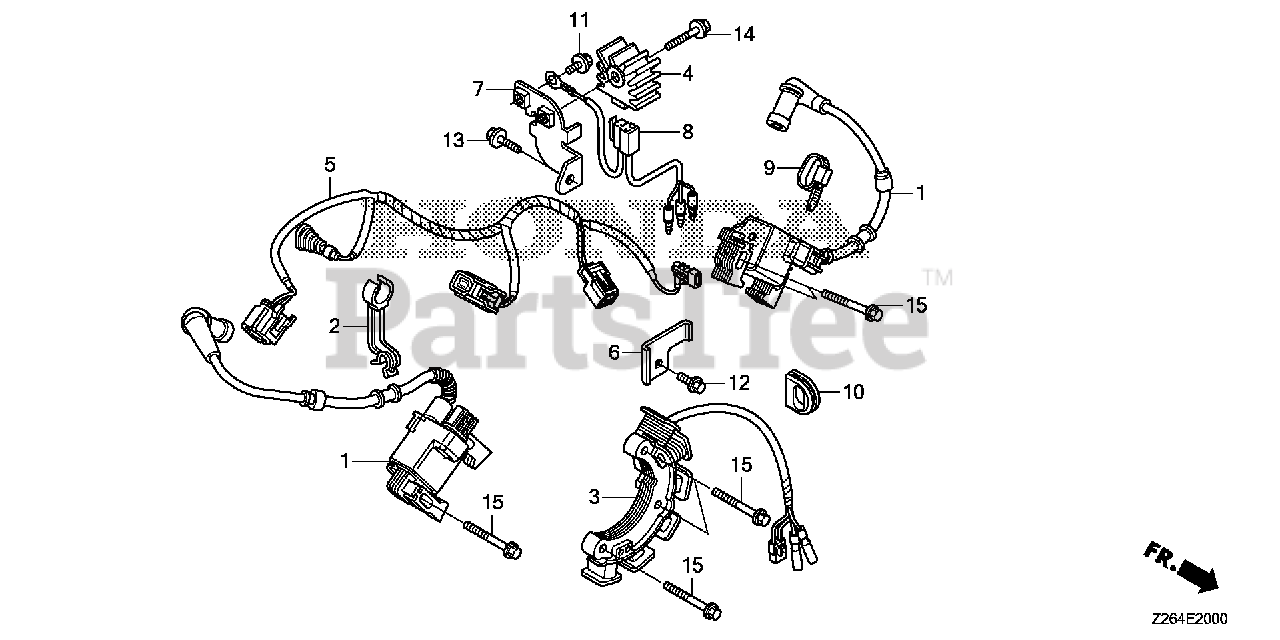

IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-Z6L-033

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-Z6L-043)

$210.99

$

In Stock, only 2 left!

0

1

Honda 30500-Z6L-043

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$210.99

$

In Stock, only 2 left!

0

2

Honda 30551-Z6L-000

CLAMP, IGNITION WIRE

$4.99

$

Usually ships in 3-6 days

0

3

Honda 31630-ZCL-013

COIL ASSY., CHARGE

$177.99

$

Usually ships in 3-6 days

0

4

Honda 31750-735-013

SEE PART DETAILS - PRI; RECTIFIER, REGULATOR (5A)

$34.99

$

Usually ships in 3-6 days

0

5

Honda 32110-Z6L-810

WIRE HARNESS ASSY., ENGINE

$63.99

$

Usually ships in 3-6 days

0

6

Honda 32114-Z6L-000

BRACKET, HARNESS

$2.99

$

In Stock, Qty 8

0

7

Honda 32115-Z6L-000

BRACKET, REGULATOR RECTIFIER

$6.99

$

Usually ships in 3-6 days

0

8

Honda 32183-Z6L-000

HARNESS ASSY., REGULATOR RECTIFIER

$14.99

$

Usually ships in 3-6 days

0

9

Honda 90650-KV6-003

BAND, WIRE (95MM)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 91601-Z6L-000

GROMMET, CORD

$3.99

$

Usually ships in 3-6 days

0

11

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 1 left!

0

12

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

13

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 10

0

14

Honda 95701-06030-00

BOLT, FLANGE (6X30)

$2.49

$

In Stock, only 4 left!

0

15

Honda 95701-06032-00

BOLT, FLANGE (6X32)

$2.49

$

In Stock, Qty 5

0
