EB11000 A (EZCQ) - Honda Generator, Made in Japan (SN: EZCQ-3000001 - EZCQ-9999999) BATTERY@SOLENOID Parts Diagram

Generator, Made in Japan

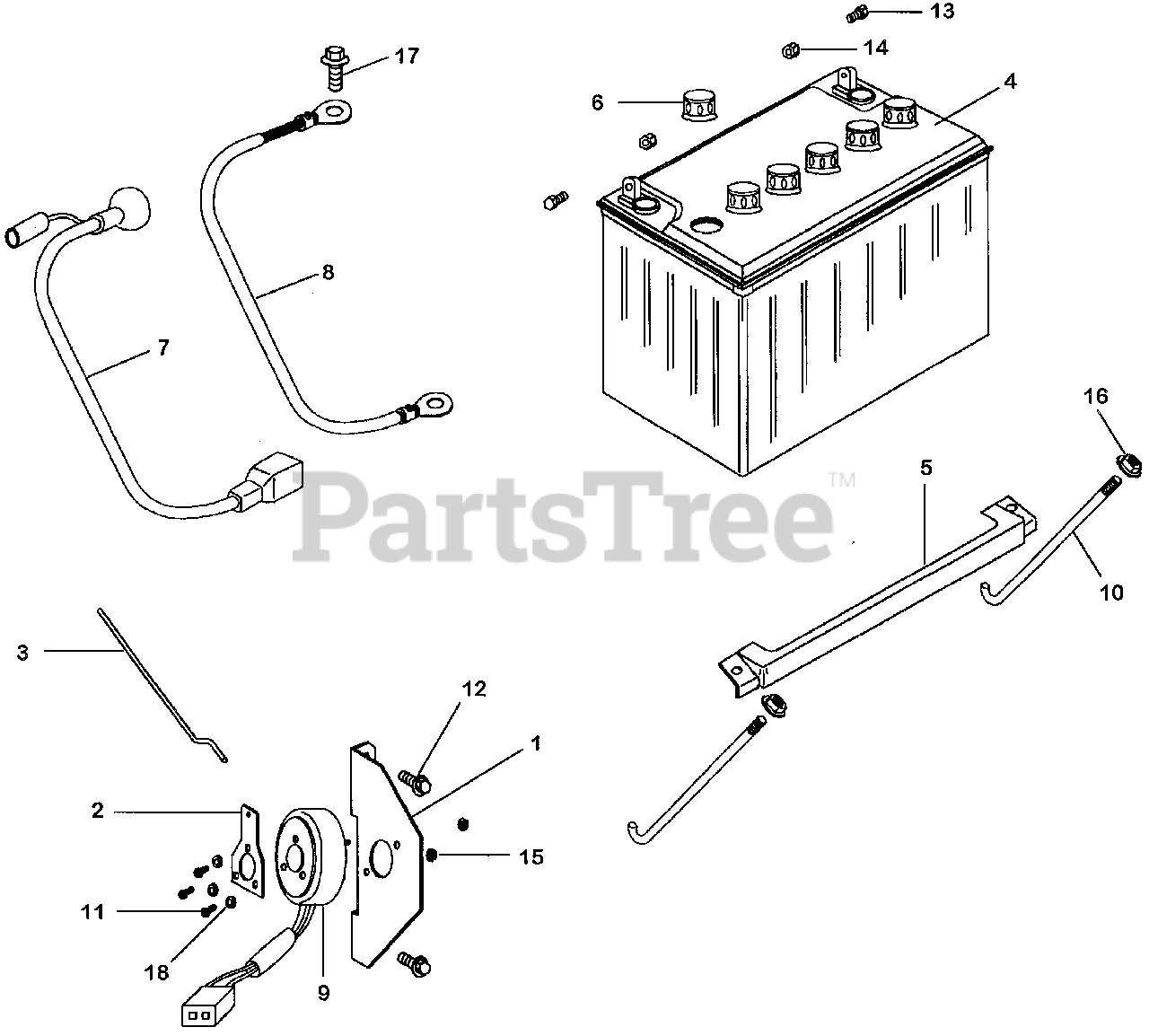

BATTERY@SOLENOID Parts Diagram

  • Title

1

Honda 16261-YZA-000

PLATE, SOLENOID

$

$

Not available

2

Honda 16550-YZA-000

ARM, SOLENOID

$

$

Not available

3

Honda 16555-YZA-000

ROD

$

$

Not available

4

Honda 31500-ZJ1-003

SEE PART DETAILS - PRI; BATTERY ASSY. (34A19L-MF) (YUASA)

$153.99

$

Usually ships in 3-6 days

0

5

Honda 31512-ZA0-000

PLATE, BATTERY SETTING

$21.99

$

Usually ships in 3-6 days

0

6

Honda 31542-538-007

PLUG, VENT (YUASA)

$10.99

$

Usually ships in 3-6 days

0

7

Honda 32410-YZA-000

CABLE ASSY., STARTER

$

$

Not available

8

Honda 32430-YZA-000

CABLE ASSY., GROUND

$

$

Not available

9

Honda 36260-YZA-000

SOLENOID ASSY.

$

$

Not available

10

Honda 90001-728-760

BOLT, BATTERY SETTING

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90003-YZA-000

SCREW (3.5X6)

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 17

0

13

Honda 90122-ZA0-007

BOLT, BATTERY TERMINAL

$3.99

$

In Stock, only 1 left!

0

14

Honda 90306-463-740

NUT, BATTERY TERMINAL

$5.49

$

Usually ships in 3-6 days

0

15

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 10

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

18

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0
