EB11000 A (EZCQ) - Honda Generator, Made in Japan (SN: EZCQ-3000001 - EZCQ-9999999) CONNECTING ROD@PISTON Parts Diagram

Generator, Made in Japan

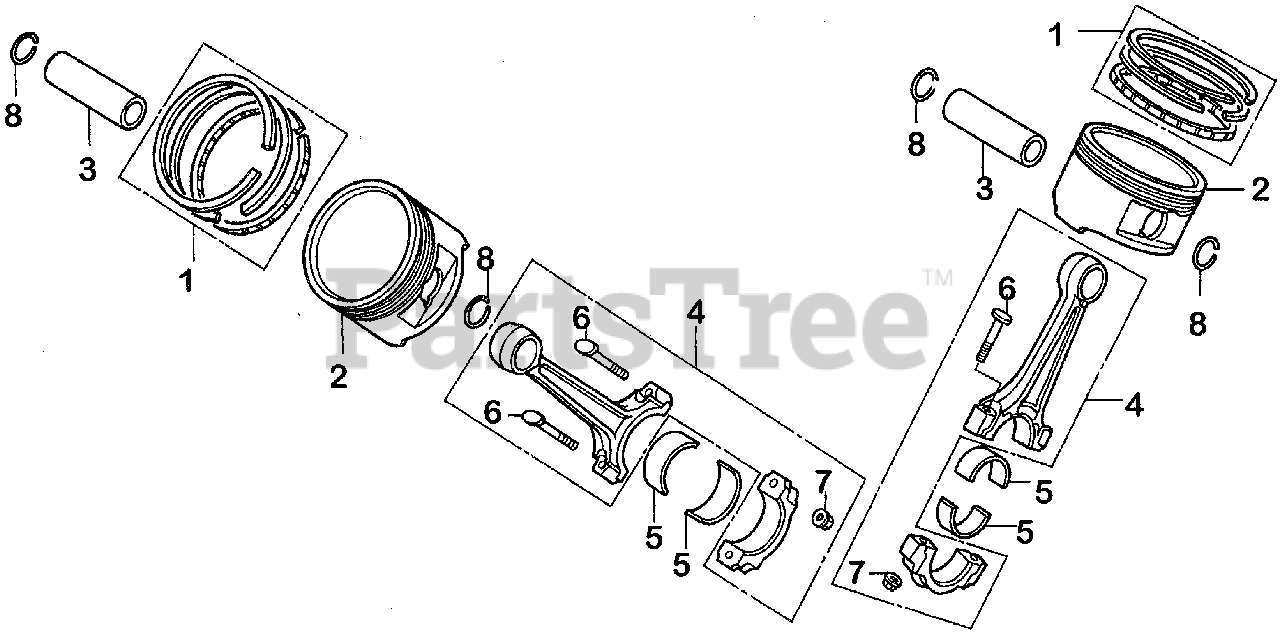

CONNECTING ROD@PISTON Parts Diagram

  • Title

1

Honda 13010-ZE8-601

RING SET, PISTON (STD) (NIPPON)

$31.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZE8-601

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$50.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE8-601

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$50.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE8-601

RING SET, PISTON (0.75) (NIPPON)

$50.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZJ1-000

PISTON (STD)

$

$

Not available

2

Honda 13102-ZJ1-000

PISTON (OS 0.25)

$

$

Not available

2

Honda 13103-ZJ1-000

PISTON (0.50) (NOT AVAILABLE)

$

$

Not available

2

Honda 13104-ZJ1-000

PISTON (0.75)

$

$

Not available

3

Honda 13111-MZ0-000

SEE PART DETAILS - PRI; PIN, PISTON

$17.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZJ1-000

SEE PART DETAILS - SUP; PIN, PISTON
(Superseded to 13111-MZ0-000)

$17.99

$

Usually ships in 3-6 days

0

4

Honda 13210-ZJ1-000

ROD SET, CONNECTING

$128.99

$

Usually ships in 3-6 days

0

5

Honda 13211-ZJ1-003

BEARING A, CONNECTING ROD (BLUE)

$

$

Not available

5

Honda 13212-ZJ1-003

BEARING B, CONNECTING ROD (BLACK)

$

$

Not available

5

Honda 13213-ZJ1-003

BEARING C, CONNECTING ROD (BROWN)

$

$

Not available

5

Honda 13214-ZJ1-003

BEARING D, CONNECTING ROD (GREEN)

$

$

Not available

5

Honda 13215-ZJ1-003

BEARING E, CONNECTING ROD (YELLOW)

$

$

Not available

5

Honda 13216-ZJ1-003

BEARING F, CONNECTING ROD (PINK) (NOT AVAILABLE)

$

$

Not available

5

Honda 13217-ZJ1-003

BEARING G, CONNECTING ROD (RED)

$

$

Not available

6

Honda 13213-ML0-000

BOLT, CONNECTING ROD

$7.49

$

Usually ships in 3-6 days

0

7

Honda 13215-KM3-000

NUT, CONNECTING ROD (Honda Code 1845718).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

Note: Use from Engine SN 1025021.

$1.49

$

In Stock, Qty 20+

0

8

Honda 94601-18000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (18MM) (Honda Code 0317305).

Note: Use up to Engine SN 1025020.

$1.49

$

In Stock, only 2 left!

0
