EB11000 A (EZCQ) - Honda Generator, Made in Japan (SN: EZCQ-3000001 - EZCQ-9999999) CONTROL BOX Parts Diagram

Generator, Made in Japan

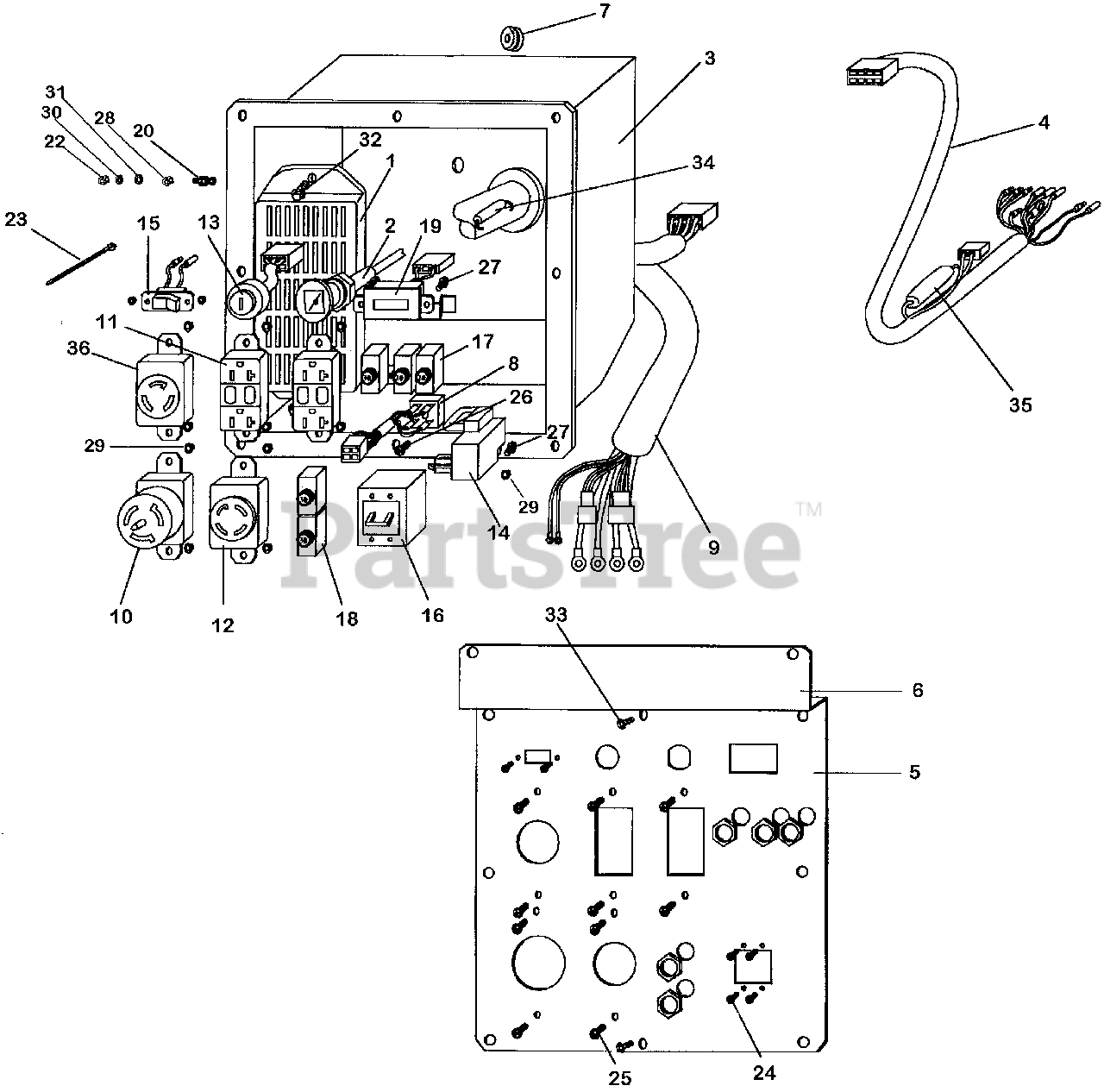

CONTROL BOX Parts Diagram

  • Title

1

Honda 31700-Z08-E31

SEE PART DETAILS - PRI; A.V.R. ASSY.

$1057.99

$

Usually ships in 3-6 days

0

2

Honda 17950-765-A10

CABLE, CHOKE

$31.99

$

Usually ships in 3-6 days

0

3

Honda 31410-YZA-000ZA

COVER, CONTROL BOX

$

$

Not available

4

Honda 32110-YZA-000

HARNESS ASSY., ENG.

$

$

Currently unavailable

5

Honda 31406-YZA-000

MARK, PANEL PLATE

$

$

Not available

6

Honda 31420-YZA-000

PANEL, CONTROL

$

$

Not available

7

Honda 91651-Z08-E31

SEE PART DETAILS - PRI; GROMMET, CHOKE CABLE

$4.49

$

Usually ships in 3-6 days

0

8

Honda 31720-YZA-000

DIODE ASSY.

$

$

Not available

9

Honda 32100-YZA-000

HARNESS ASSY., GENERATOR

$

$

Not available

10

Honda 32331-ZC6-630

RECEPTACLE (50A/125-250V)

$145.99

$

Usually ships in 3-6 days

0

11

Honda 32330-Z08-E42

SEE PART DETAILS - PRI; RECEPTACLE (20A/125V)

$307.99

$

Usually ships in 3-6 days

0

11

Honda 32331-ZC2-E31

SEE PART DETAILS - SUP; RECEPTACLE (20A/125V)
(Superseded to 32330-Z08-E42)

$307.99

$

Usually ships in 3-6 days

0

12

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$32.99

$

Usually ships in 3-6 days

0

13

Honda 35100-ZA0-013

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3634904).
(Superseded to 35100-ZA0-023)

$104.99

$

Usually ships in 3-6 days

0

14

Honda 36210-ZB4-004

SEE PART DETAILS - SUP; THROTTLE UNIT, AUTO (SAWAFUJI)
(Superseded to 36210-ZB4-014)

$228.99

$

Usually ships in 3-6 days

0

14

Honda 36210-ZB4-014

SEE PART DETAILS - PRI; THROTTLE UNIT, AUTO (SAWAFUJI)

$228.99

$

Usually ships in 3-6 days

0

15

Honda 36214-ZB4-013

SEE PART DETAILS - PRI; SWITCH, AUTO THROTTLE
(Superseded to 36214-ZB4-023)

$36.99

$

In Stock, only 1 left!

0

16

Honda 38220-YZA-000

BREAKER (41A)

$

$

Not available

17

Honda 38240-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$72.99

$

In Stock, only 1 left!

0

18

Honda 38241-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (30A)
(Superseded to 38241-ZC6-E31)

$72.99

$

Usually ships in 3-6 days

0

18

Honda 38241-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A)

$72.99

$

Usually ships in 3-6 days

0

19

Honda 39700-ZC6-003

METER ASSY., HOUR

$300.99

$

Usually ships in 3-6 days

0

20

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 32903-ZC8-N01

TIE, CABLE (C)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 93500-03006-0G

SCREW, PAN (3X6)

$0.99

$

In Stock, only 3 left!

0

25

Honda 93500-04012-0G

SCREW, PAN (4X12)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 93893-04020-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X20) (Honda Code 1191089).

$0.99

$

Usually ships in 3-6 days

0

27

Honda 93893-05016-08

SCREW-WASHER (5X16) Use up to Engine SN 2056819.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94001-06390-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 10

0

30

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

31

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

$1.49

$

Usually ships in 3-6 days

0

32

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

33

Honda 96001-06012-07

BOLT, FLANGE (6X12) Use from Frame SN 1001725.

$2.49

$

Usually ships in 3-6 days

0

34

Honda 98200-20500

FUSE B (5A)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 98200-21000

SEE PART DETAILS - PRI; FUSE B (10A)

$1.49

$

In Stock, Qty 8

0

36

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$38.99

$

Usually ships in 3-6 days

0
