EB11000 A (EZCQ) - Honda Generator, Made in Japan (SN: EZCQ-3000001 - EZCQ-9999999) FRAME@FUEL TANK Parts Diagram

Generator, Made in Japan

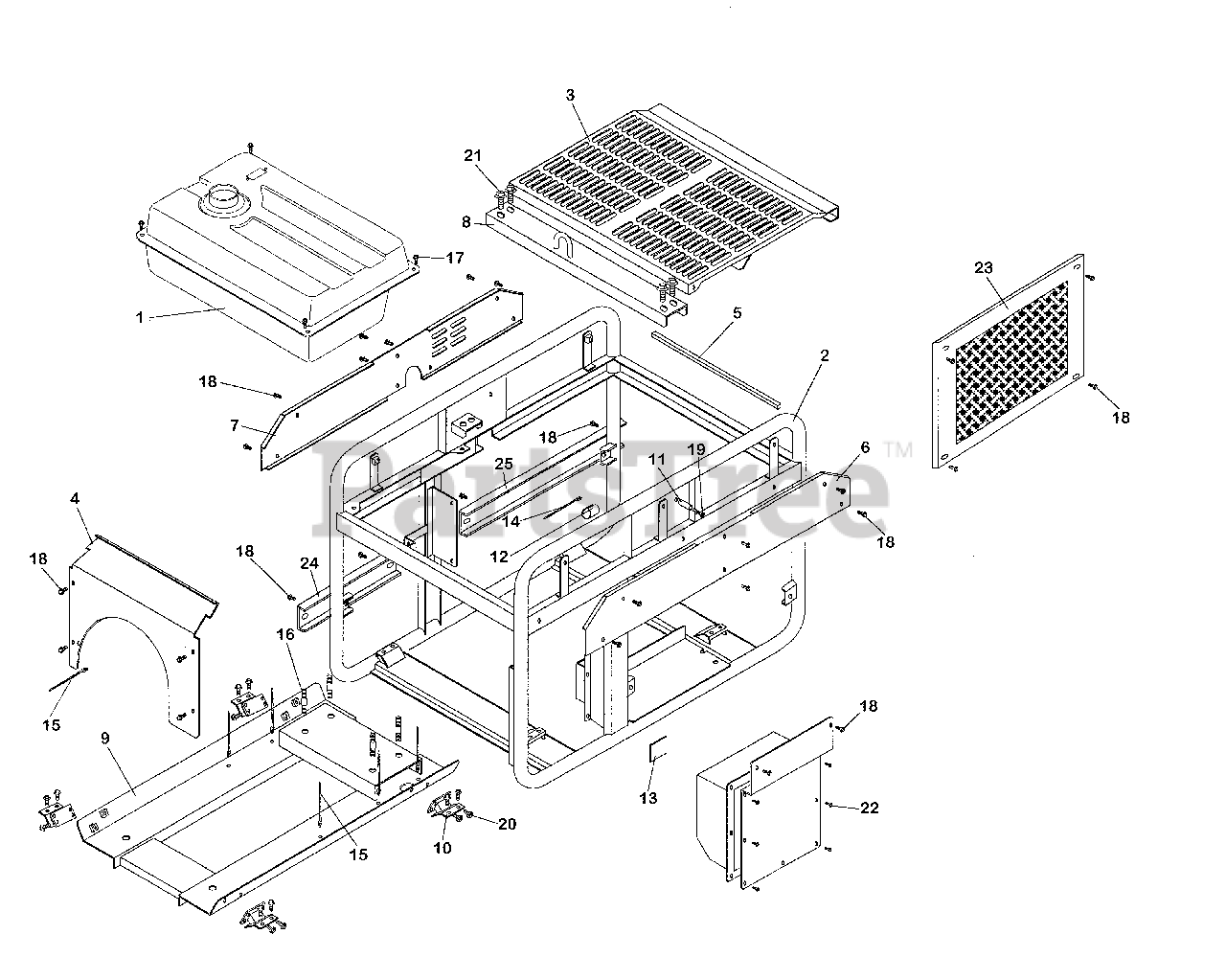

FRAME@FUEL TANK Parts Diagram

  • Title

NI

Honda 06710-YZA-000AH

SEE PART DETAILS - SUP; WHEEL KIT

$

$

Not available

1

Honda 17510-ZJ1-R01ZC

TANK COMP,F*R280*

$634.99

$

Usually ships in 3-6 days

0

2

Honda 50310-YZA-000ZA

FRAME (WITHOUT MOUNTING TABS)

Note: Use up to Frame SN 3000631.

$

$

Not available

2

Honda 50310-YZA-010ZA

FRAME (WITH MOUNTING TABS FOR SIDE COVER & 2 PROTECTOR SUPPORTS)

Note: Use from Frame SN 3000632.

$

$

Not available

3

Honda 63110-YZA-000ZA

COVER (UPPER)

$

$

Not available

4

Honda 63115-YZA-000ZA

PLATE, T.G.

$

$

Not available

5

Honda 63147-Z08-E31

SEAL, COVER (UPPER)

$6.49

$

Usually ships in 3-6 days

0

6

Honda 63150-YZA-000ZB

PLATE, L. UP

$

$

Not available

7

Honda 63250-YZA-000ZB

PLATE, R. SIDE

$

$

Not available

8

Honda 63570-YZA-000ZA

BEAM, HANGER

$

$

Not available

9

Honda 63710-YZA-000ZA

BED, BASE

$

$

Not available

10

Honda 68327-ZC6-000

RUBBER, GENERATOR (LOWER)

$83.99

$

Usually ships in 3-6 days

0

11

Honda 90510-YZA-000

SPACER

$

$

Not available

12

Honda 90511-YZA-000

SPACER

$8.99

$

Usually ships in 3-6 days

0

13

Honda 91520-YZA-000

CUSHION

$13.99

$

Usually ships in 3-6 days

0

14

Honda 90673-YZA-000

TIE, CABLE

$11.99

$

Usually ships in 3-6 days

0

15

Honda 90674-YZA-000

TIE, CABLE

$

$

Not available

16

Honda 92900-10045-0B

BOLT, STUD (10X45)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 93401-05014-08

BOLT-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use up to Frame SN 3000631.

$1.99

$

In Stock, Qty 20+

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use from Frame SN 3000632.

$1.99

$

In Stock, Qty 20+

0

19

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-12025-00

BOLT, FLANGE (12X25)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 96001-06012-07

BOLT, FLANGE (6X12) Use from Frame SN 1001725.

$2.49

$

Usually ships in 3-6 days

0

23

Honda 63112-YZA-000ZA

COVER, SIDE

Note: Use from Frame SN 3000632.

$

$

Not available

24

Honda 63160-YZA-000ZA

SUPPORT A, PROTECTOR

Note: Use from Frame SN 3000632.

$

$

Not available

25

Honda 63260-YZA-000ZA

SUPPORT B, PROTECTOR

Note: Use from Frame SN 3000632.

$107.99

$

Usually ships in 3-6 days

0
