EB11000 A (EZCQ) - Honda Generator, Made in Japan (SN: EZCQ-3000001 - EZCQ-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

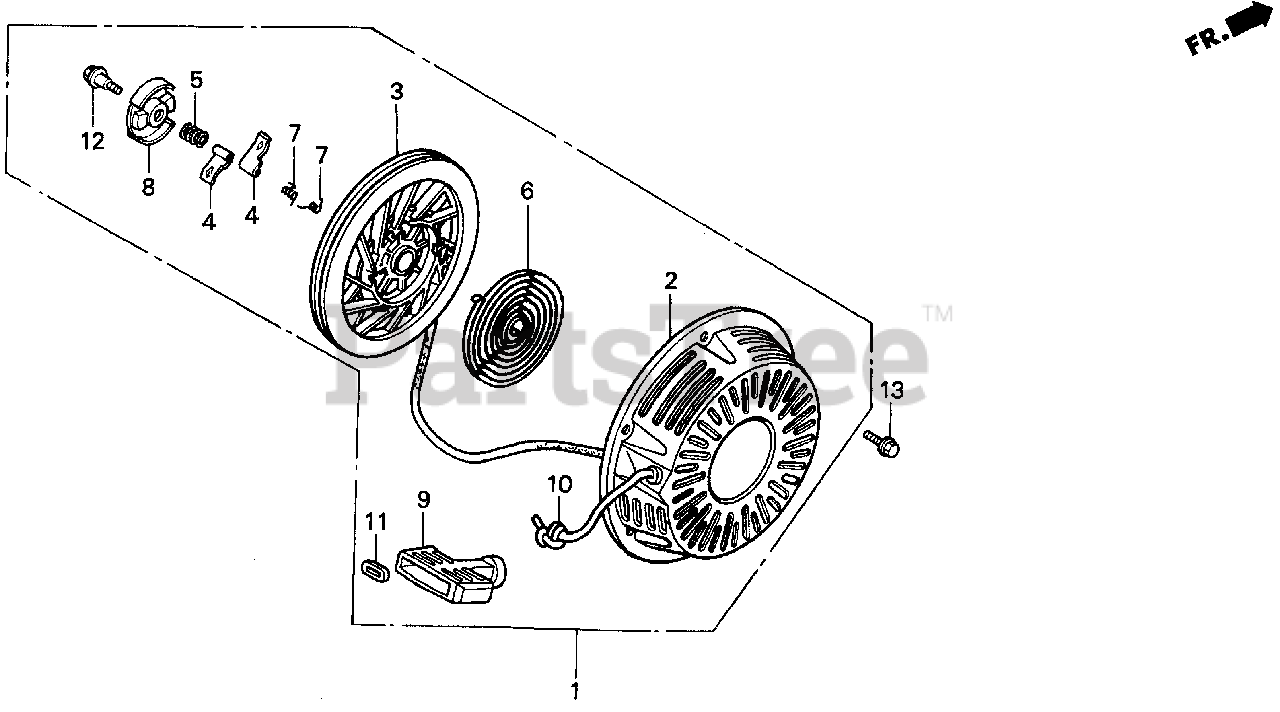

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE3-W01ZP

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED) (Honda Code 7329626).
(Superseded to 28400-ZE3-W02ZP)

$159.99

$

Usually ships in 3-6 days

0

1

Honda 28400-ZE3-W02ZP

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$159.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE3-W01ZP

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

$121.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER (Honda Code 3713328).

$41.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

$6.99

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

$5.99

$

In Stock, only 4 left!

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

$17.99

$

In Stock, only 3 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

$4.99

$

In Stock, only 1 left!

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

$13.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-W02

SEE PART DETAILS - PRI; GRIP, STARTER (Honda Code 6133649).
(Superseded to 28461-ZE2-W03)

$7.49

$

In Stock, only 4 left!

0

9

Honda 28461-ZE2-W03

SEE PART DETAILS - PRI; GRIP, STARTER

$7.49

$

In Stock, only 4 left!

0

10

Honda 28462-ZE3-W01

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#6X64") (N/A: USE P/N 08560-ZG921-11) (Honda Code 3713344).

$13.99

$

Usually ships in 3-6 days

0

11

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT (Honda Code 3678976).

$6.49

$

In Stock, only 1 left!

0

12

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

$3.99

$

In Stock, only 1 left!

0

13

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

In Stock, only 1 left!

0
