EB12D A (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1099999) BATTERY Parts Diagram
Generator, Made in Japan

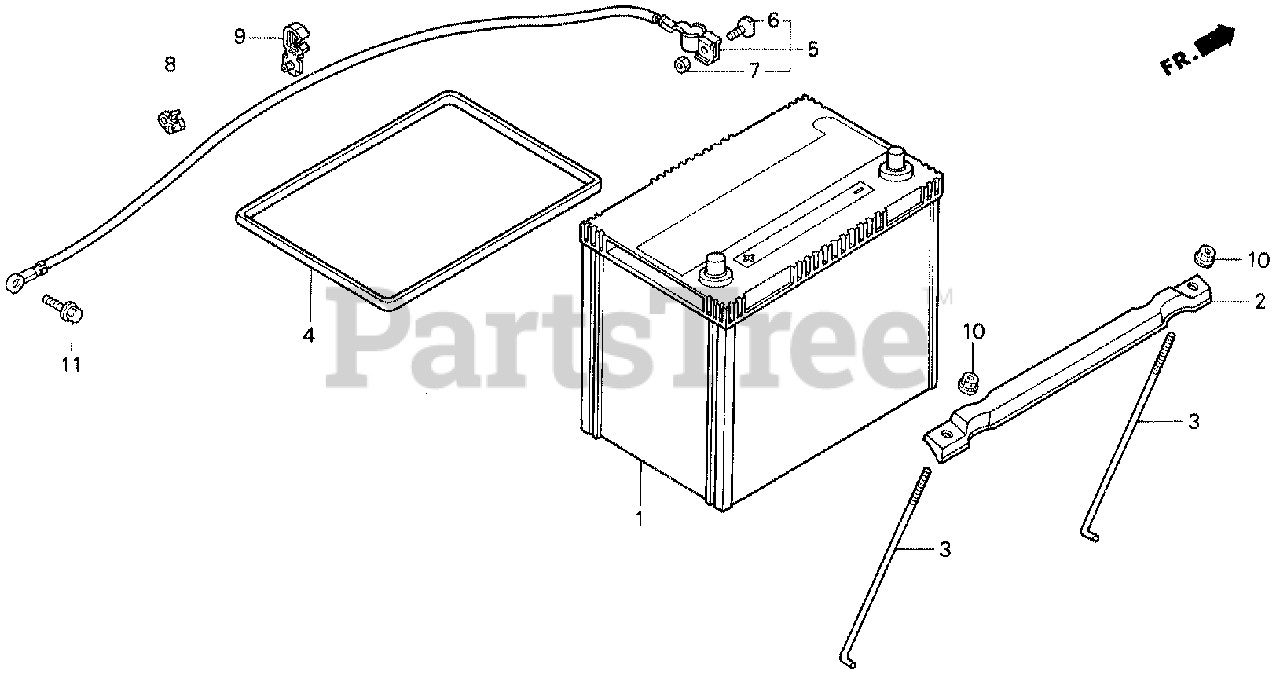

BATTERY Parts Diagram
Honda 31500-ZC6-631
BATTERY ASSY. (55B24R S-MF) (YUASA) (NOT AVAILABLE)
$
$
Currently unavailable
Honda 31512-634-000
PLATE, BATTERY SETTING
$
$
Not available
Honda 31513-SB2-000
BOLT, BATTERY SETTING
$11.99
$
Usually ships in 3-6 days
Honda 31521-SD9-000
BOX ASSY., BATTERY
$43.99
$
Usually ships in 3-6 days
Honda 32600-ZC6-690
CABLE ASSY., GROUND
$
$
Not available
Honda 32601-SK7-900
SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL
$13.99
$
Usually ships in 3-6 days
Honda 32602-SK7-900
NUT, BATTERY TERMINAL
$8.49
$
Usually ships in 3-6 days
Honda 90623-SB0-003
CLIP, WIRE HARNESS (8MM) *NH1* (BLACK)
$7.99
$
Usually ships in 3-6 days
Honda 90678-ZA0-601
CLIP, HARNESS (5MM-15MM)
$4.49
$
Usually ships in 3-6 days
Honda 94050-06080
NUT, FLANGE (6MM)
$0.99
$
In Stock, only 4 left!
Honda 95701-08012-08
BOLT, FLANGE (8X12)
$2.99
$
In Stock, only 3 left!
