EB12D A (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1099999) REAR HOUSING + BRUSH Parts Diagram

Generator, Made in Japan

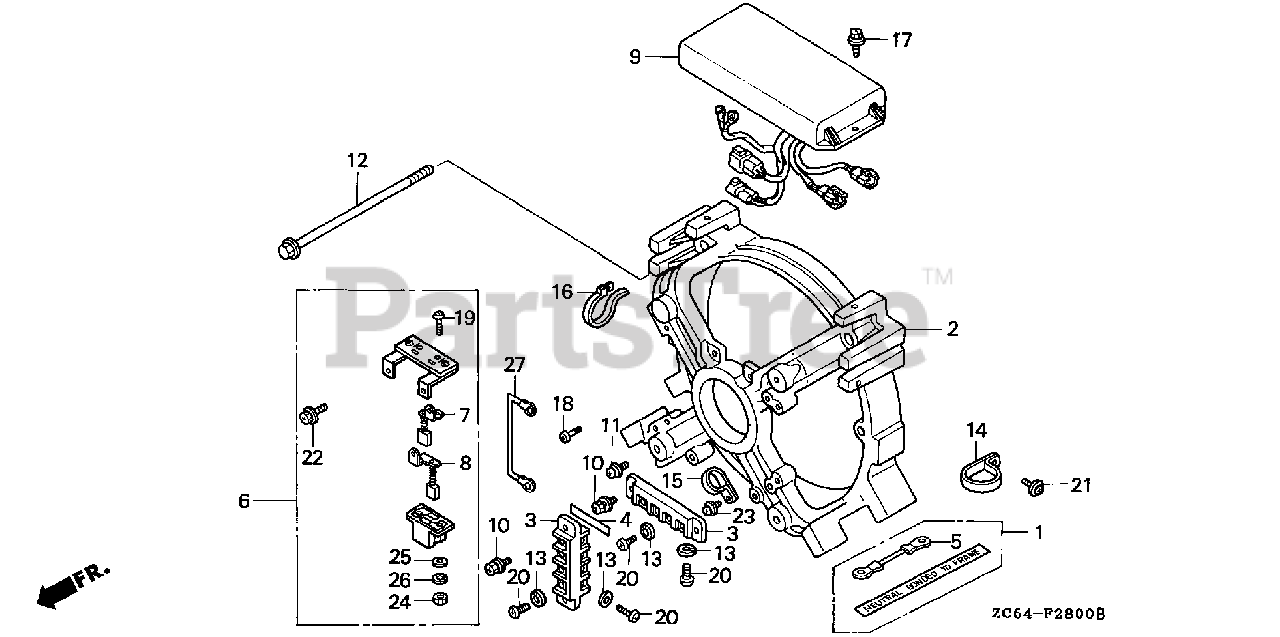

REAR HOUSING + BRUSH Parts Diagram

  • Title

1

Honda 06390-ZC6-E30

CORD KIT, GROUND

$

$

Not available

2

Honda 31108-ZC6-003

HOUSING, RR.

$537.99

$

Usually ships in 3-6 days

0

3

Honda 31118-880-000

TERMINAL, A.C. OUT

$61.99

$

Usually ships in 3-6 days

0

4

Honda 31119-ZC6-003

MARK

$8.49

$

Usually ships in 3-6 days

0

5

Honda 31161-ZC6-641

WIRE, GROUND

$21.99

$

Usually ships in 3-6 days

0

6

Honda 31295-ZC6-003

BRUSH ASSY.

$124.99

$

Usually ships in 3-6 days

0

7

Honda 31296-ZC6-003

BRUSH (A)

$30.99

$

Usually ships in 3-6 days

0

8

Honda 31297-ZC6-003

BRUSH (B)

$30.99

$

Usually ships in 3-6 days

0

9

Honda 32350-ZC6-632

REGULATOR ASSY., AUTOMATIC VOLTAGE

$

$

Not available

10

Honda 90031-ZC0-003

SCREW, TAPPING (5X18)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90102-899-003

SCREW, PAN (5X12)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90157-ZC6-601

BOLT, FLANGE (10X170)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 90506-ZA0-003

WASHER, SPRING (6MM)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90651-ZC6-E31

CLIP

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90651-ZC9-J01

CLIP (18.6MM) (A)

$5.99

$

Usually ships in 3-6 days

0

16

Honda 90672-ZC6-003

TIE, CABLE

$2.49

$

Usually ships in 3-6 days

0

17

Honda 93403-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93500-04016-0H

SCREW, PAN (4X16)

$0.99

$

Usually ships in 3-6 days

0

20

Honda 93500-06008-3J

SCREW, PAN (6X8)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93893-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93893-05012-18

SEE PART DETAILS - SUP; SCREW-WASHER (5X12)

$

$

Currently unavailable

23

Honda 93893-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94002-04080-0S

NUT, HEX. (4MM)

$

$

Not available

25

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0
