EB12D AG (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1009999) AIR CLEANER Parts Diagram

Generator, Made in Japan

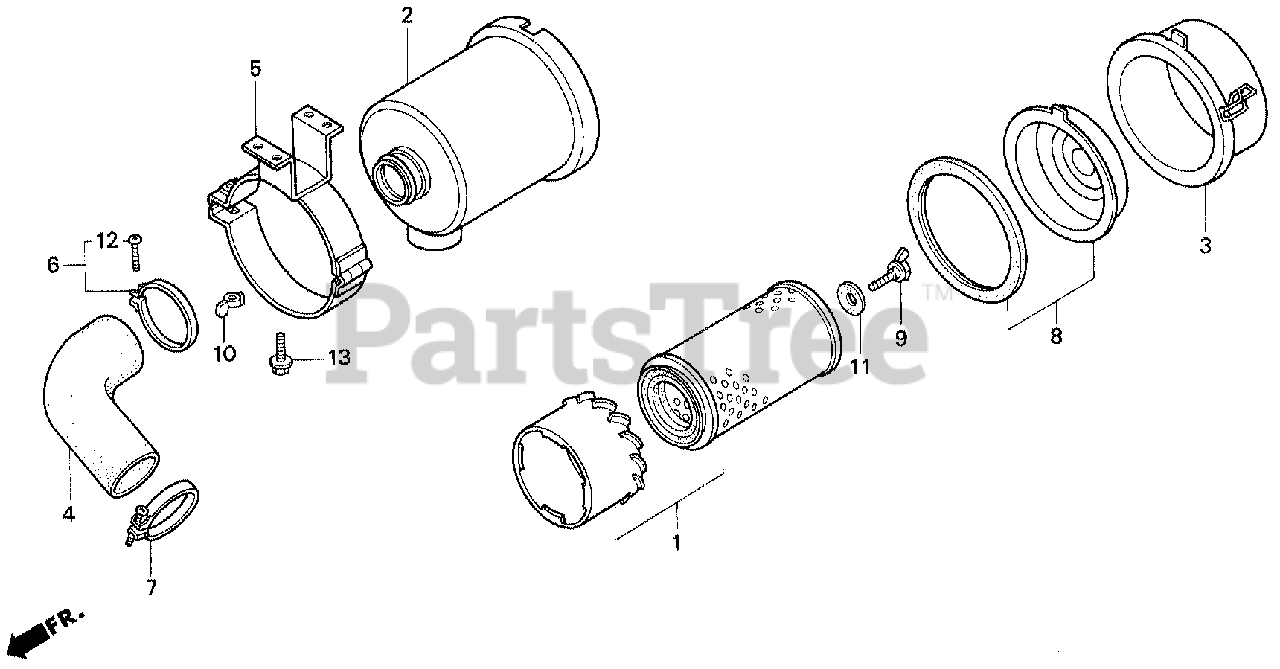

AIR CLEANER Parts Diagram

  • Title

1

Honda 17210-ZC6-E31

ELEMENT, AIR CLEANER (DRY) Use from Frame SN 1003500.

$

$

Not available

1

Honda 17210-ZC6-003

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZC6-013)

Note: Use up to Frame SN 1003499.

$

$

Not available

1

Honda 17210-ZC6-013

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$

$

Not available

1

Honda 17210-ZG5-801

ELEMENT, AIR CLEANER (DRY) Use up to Frame SN 1003499.

$46.99

$

Usually ships in 3-6 days

0

2

Honda 17220-ZG5-801

HOUSING, AIR CLEANER

$210.99

$

Usually ships in 3-6 days

0

3

Honda 17230-ZC6-003

COVER, AIR CLEANER

$

$

Not available

4

Honda 17251-ZC6-000

TUBE, AIR CLEANER CONNECTING

$

$

Not available

5

Honda 17255-ZC6-000

BAND, AIR CLEANER

$119.99

$

Usually ships in 3-6 days

0

6

Honda 17258-HA7-670

SEE PART DETAILS - SUP; BAND, CONNECTING TUBE
(Superseded to 95018-62250)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 17255-KV7-670

SEE PART DETAILS - SUP; BAND, AIR CLEANER CONNECTING
(Superseded to 95018-56200)

$15.99

$

Usually ships in 3-6 days

0

7

Honda 95018-56200

SEE PART DETAILS - PRI; BAND, AIR CLEANER CONNECTING TUBE (56)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 17270-ZC6-003

PAN ASSY., DUST

$57.99

$

Usually ships in 3-6 days

0

9

Honda 17425-ZG5-801

BOLT, AIR CLEANER

$32.99

$

Usually ships in 3-6 days

0

10

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

$6.49

$

In Stock, Qty 20+

0

11

Honda 90502-ZC6-003

WASHER, AIR CLEANER

$

$

Not available

12

Honda 93500-04020-0H

SCREW, PAN (4X20)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.99

$

In Stock, only 2 left!

0
