EB12D AG (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1009999) CONTROL PANEL (1) Parts Diagram

Generator, Made in Japan

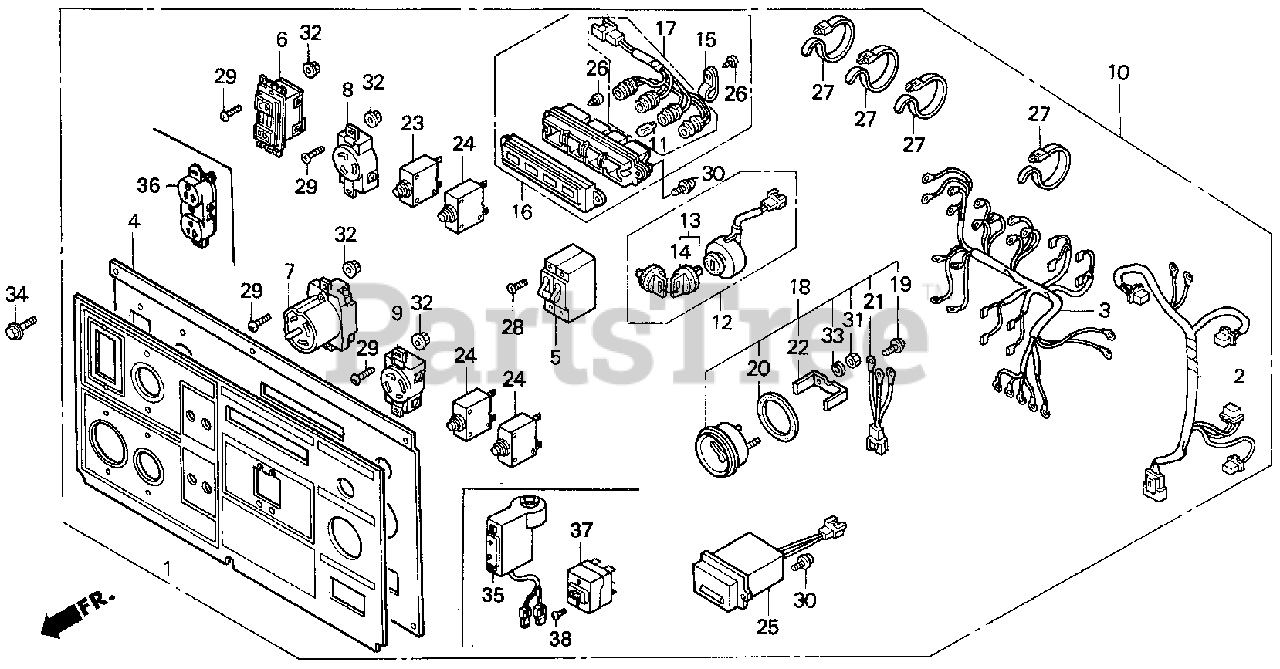

CONTROL PANEL (1) Parts Diagram

  • Title

1

Honda 31406-ZC6-E30

PLATE, CONTROL INDICATION (AG)

$

$

Not available

2

Honda 31418-ZC6-632

WIRE HARNESS ASSY., CONTROL (MAIN)

$

$

Not available

3

Honda 31419-ZC6-E31

HARNESS ASSY., CONTROL

$

$

Not available

4

Honda 31420-ZC6-E31ZA

PANEL, CONTROL *B132* (JOHN BLUE)

$

$

Not available

5

Honda 31430-ZC6-631

BREAKER, CIRCUIT (48A)

$

$

Not available

6

Honda 32331-ZC2-E30

SEE PART DETAILS - SUP; RECEPTACLE (20A-125V)

$

$

Not available

7

Honda 32331-ZC6-630

RECEPTACLE (50A-125/250V)

$145.99

$

Usually ships in 3-6 days

0

8

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$53.99

$

In Stock, only 1 left!

0

9

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A-125/250V)

$

$

Not available

10

Honda 32340-ZC6-E31ZA

PANEL ASSY., CONTROL *B132* (JOHN BLUE)

Note: Use up to Frame SN 1001724.

$

$

Not available

10

Honda 32340-ZC6-E32ZA

PANEL ASSY., CONTROL *B132* (JOHN BLUE)

Note: Use from Frame SN 1001725.

$

$

Currently unavailable

11

Honda 34908-MB9-871

BULB, WEDGE BASE (12V1.7W) (NIPPON SEIKI)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 35100-ZC6-013

SWITCH ASSY., COMBINATION

$

$

Not available

13

Honda 35110-736-612

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

$14.99

$

Usually ships in 3-6 days

0

14

Honda 35113-958-681

CAP, COMBINATION SWITCH KEY

$

$

Not available

15

Honda 37121-ML7-671

CLAMP

$4.49

$

Usually ships in 3-6 days

0

16

Honda 37150-ZC6-692

INDICATOR ASSY.

$162.99

$

Usually ships in 3-6 days

0

17

Honda 37158-ZG6-U11

SOCKET

$

$

Not available

18

Honda 37300-ZC6-631

METER ASSY., FUEL

$157.99

$

Usually ships in 3-6 days

0

19

Honda 37305-KE5-008

SCREW-WASHER (3X22)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 37314-ZC6-631

GASKET

$8.99

$

Usually ships in 3-6 days

0

21

Honda 37315-ZC6-631

WIRE ASSY.

$

$

Not available

22

Honda 37316-ZC6-631

BRACKET

$

$

Not available

23

Honda 38240-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC6-E31)

$92.99

$

In Stock, only 2 left!

0

24

Honda 38241-ZC6-E30

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (30A)
(Superseded to 38241-ZC6-E31)

$89.99

$

Usually ships in 3-6 days

0

25

Honda 39700-ZC6-003

METER ASSY., HOUR

$382.99

$

Usually ships in 3-6 days

0

26

Honda 90102-SB2-003

SCREW, TAPPING (4X14)

$6.49

$

Usually ships in 3-6 days

0

27

Honda 90672-ZB4-003

TIE, CABLE

$6.99

$

Usually ships in 3-6 days

0

28

Honda 93500-03006-0G

SCREW, PAN (3X6)

$0.99

$

In Stock, only 3 left!

0

29

Honda 93500-04012-0G

SCREW, PAN (4X12)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 93893-05016-08

SCREW-WASHER (5X16)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 94002-04000-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 6

0

33

Honda 94111-04000

WASHER, SPRING (4MM)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 96001-06012-07

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0
