EB12D AG (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1009999) REMOTE CONTROL BOX Parts Diagram

Generator, Made in Japan

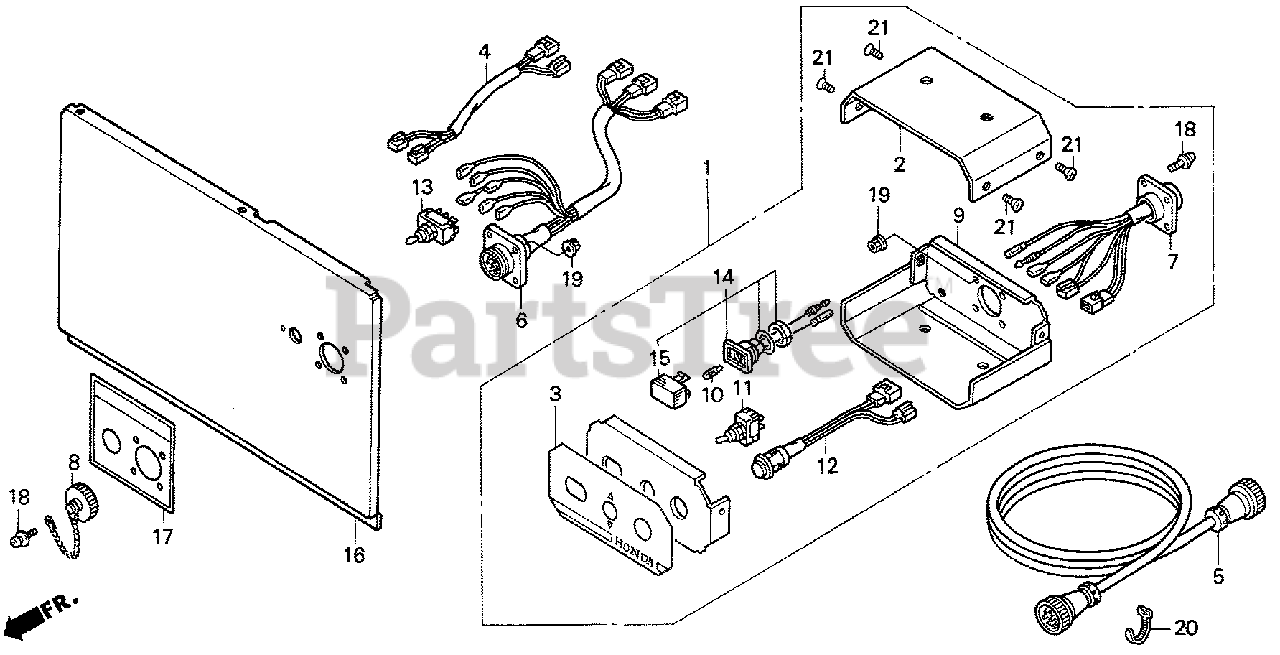

REMOTE CONTROL BOX Parts Diagram

  • Title

1

Honda 31610-ZC6-901ZA

SEE PART DETAILS - SUP; BOX ASSY., REMOTE CONTROL *R8* Use from Frame SN 1001725.

$

$

Currently unavailable

2

Honda 31611-880-810

COVER (UPPER) Use from Frame SN 1001725.

$28.99

$

Usually ships in 3-6 days

0

3

Honda 31612-ZB4-000

PLATE, SWITCH & INDICATOR Use from Frame SN 1001725.
(Superseded to 31612-ZB4-010)

$27.99

$

Usually ships in 3-6 days

0

4

Honda 32105-ZC6-901

SUB-WIRE HARNESS ASSY. Use from Frame SN 1001725.

$93.99

$

Usually ships in 3-6 days

0

5

Honda 32215-ZC6-901

CABLE, REMOTE CONTROL (15M) Use from Frame SN 1001725.

$626.99

$

Usually ships in 3-6 days

0

6

Honda 32320-ZC6-901

CONNECTOR ASSY., MAIN Use from Frame SN 1001725.

$131.99

$

Usually ships in 3-6 days

0

7

Honda 32325-ZC6-901

CONNECTOR ASSY., BOX Use from Frame SN 1001725.

$

$

Not available

8

Honda 32328-ZC6-901

COVER, CONNECTOR Use from Frame SN 1001725.

$27.99

$

Usually ships in 3-6 days

0

9

Honda 32342-ZC6-901

CASE, SWITCH Use from Frame SN 1001725.

$

$

Not available

10

Honda 34908-GE0-701

BULB, WEDGE BASE (12V/2W) Use from Frame SN 1001725.

$4.49

$

Usually ships in 3-6 days

0

11

Honda 35125-ZC6-901

SWITCH ASSY., MAIN Use from Frame SN 1001725.

$77.99

$

Usually ships in 3-6 days

0

12

Honda 35150-ZC6-901

SWITCH ASSY., STARTER Use from Frame SN 1001725.

$56.99

$

Usually ships in 3-6 days

0

13

Honda 35330-ZC6-901

SWITCH ASSY., SELECT Use from Frame SN 1001725.

$111.99

$

Usually ships in 3-6 days

0

14

Honda 37560-ZA0-801

SOCKET ASSY., LAMP (GREEN) Use from Frame SN 1001725.

$52.99

$

Usually ships in 3-6 days

0

15

Honda 37563-ZA0-801

LENS (GREEN) Use from Frame SN 1001725.

$5.49

$

In Stock, only 1 left!

0

16

Honda 63319-ZC6-930ZA

COVER, GENERATOR MAINTENANCE Use from Frame SN 1001725.

$

$

Not available

17

Honda 87247-ZC6-931

MARK, REMOTE CONTROL (E) Use from Frame SN 1001725.

$

$

Not available

18

Honda 90101-ZC6-901

SCREW-WASHER (3X12) Use from Frame SN 1001725.

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90201-ZB4-003

NUT, FLANGE (3MM) Use from Frame SN 1001725.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90672-ZC6-003

TIE, CABLE Use from Frame SN 1001725.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 93600-04008-0H

SCREW, FLAT (4X8) Use from Frame SN 1001725.

$1.49

$

Usually ships in 3-6 days

0
