EB2000i T1 A (EAET) - Honda Generator, Made in Thailand (SN: EAET-1000001 - EAET-9999999) CONTROL PANEL (EB2000IT1) Parts Diagram

Generator, Made in Thailand

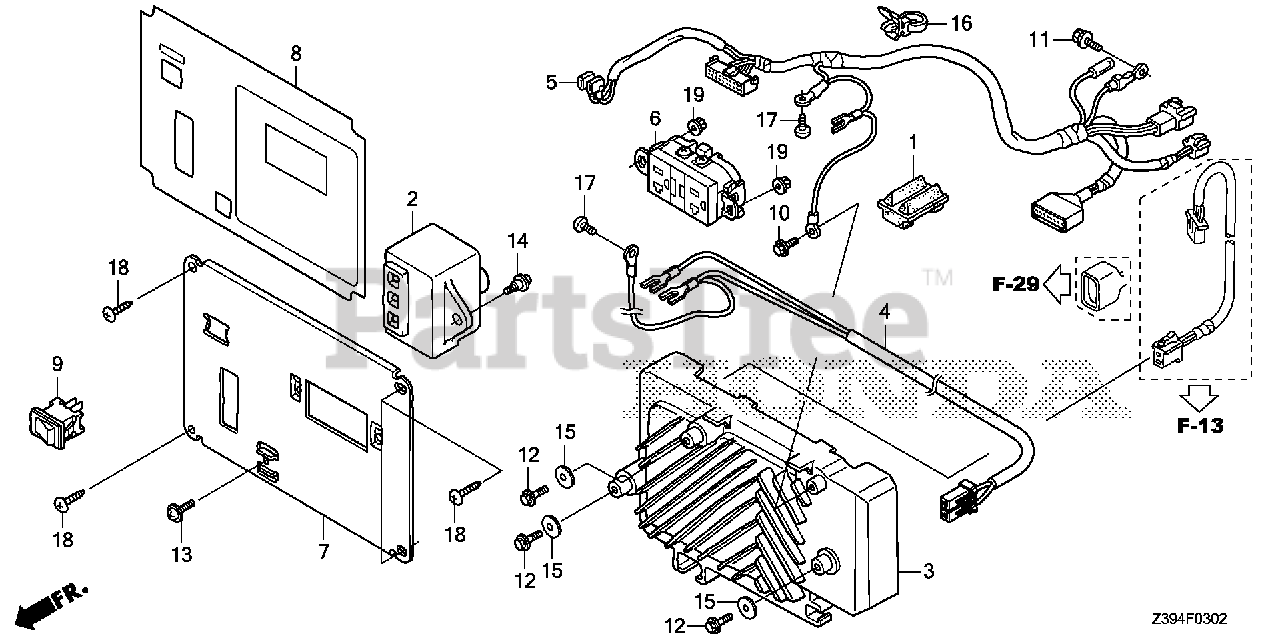

CONTROL PANEL (EB2000IT1) Parts Diagram

  • Title

1

Honda 17533-Z07-000

RUBBER B, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0

2

Honda 30400-Z07-013

SEE PART DETAILS - SUP; SPARK UNIT
(Superseded to 30400-Z39-C91)

$212.99

$

In Stock, only 4 left!

0

2

Honda 30400-Z39-C91

SEE PART DETAILS - PRI; SPARK UNIT

$212.99

$

In Stock, only 4 left!

0

3

Honda 31310-Z07-E21

INVERTER UNIT

$753.99

$

Usually ships in 3-6 days

0

4

Honda 32105-Z07-G30

SUB-WIRE HARNESS ASSY. (EB-A)

Note: Use up to Frame SN 1007021.

$

$

Not available

4

Honda 32105-Z07-G31

SUB-WIRE HARNESS ASSY. (EB-A)

Note: Use from Frame SN 1007022.

$34.99

$

Usually ships in 3-6 days

0

5

Honda 32150-Z07-G31

SEE PART DETAILS - PRI; WIRE HARNESS ASSY., CONTROL

$96.99

$

Usually ships in 3-6 days

0

6

Honda 32330-Z23-G11

SEE PART DETAILS - SUP; RECEPTACLE (20A-125V) (GFCI)
(Superseded to 32330-Z23-G12)

$

$

Not available

6

Honda 32330-Z23-G12

SEE PART DETAILS - PRI; RECEPTACLE (20A-125V) (GFCI)
(Superseded to 32330-Z23-G13)

$74.99

$

In Stock, only 2 left!

0

7

Honda 32346-Z07-G30

PANEL, CONTROL (EB-A)

$103.99

$

Usually ships in 3-6 days

0

8

Honda 32366-Z07-G30

MARK, CONTROL PANEL (EB-A)

$90.99

$

Usually ships in 3-6 days

0

9

Honda 36214-ZS9-A01

SEE PART DETAILS - PRI; SWITCH, AUTO-THROTTLE

Note: Use up to Frame SN 1006733.

$28.99

$

In Stock, only 2 left!

0

9

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

Note: Use from Frame SN 1006734.

$28.99

$

In Stock, only 2 left!

0

10

Honda 90002-892-000

BOLT, FLANGE (5X10)

$2.49

$

In Stock, only 4 left!

0

11

Honda 90019-883-000

BOLT, FLANGE (5X10) (CT200)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90101-P4V-010

BOLT, FLANGE (5X12)

$3.99

$

In Stock, only 2 left!

0

13

Honda 90102-899-003

SCREW, PAN (5X12)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90108-MN0-000

SCREW, PAN (5X13)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90581-310-000

WASHER, PLAIN (20MM)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90676-692-000

BAND (100MM) (BLACK)

$9.99

$

Usually ships in 3-6 days

0

17

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93913-25480

SCREW, TAPPING (5X16) (PO)

$1.49

$

In Stock, Qty 15

0

19

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 6

0
