EB2200X A (GX140) - Honda Generator, Made in Japan (SN: GX140-1000001 - GX140-3263982) CONTROL BOX (EB2200X) Parts Diagram

Generator, Made in Japan

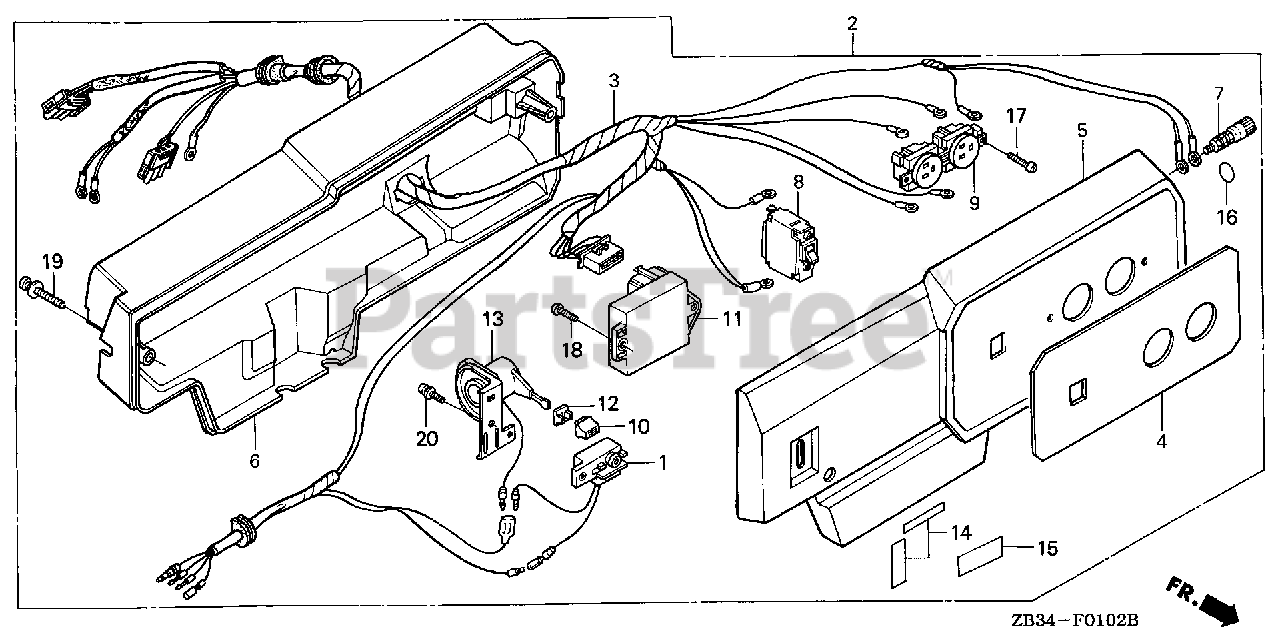

CONTROL BOX (EB2200X) Parts Diagram

  • Title

1

Honda 15520-ZB2-003

ALERT UNIT, OIL (NOT AVAILABLE)

$

$

Not available

2

Honda 31400-ZB3-731ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

3

Honda 31404-ZB2-700

WIRE HARNESS ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31407-ZB3-700

MARK, SWITCH PANEL

$

$

Currently unavailable

5

Honda 31420-ZB2-700ZA

PANEL, CONTROL *R8* (BRIGHT RED)

$

$

Not available

6

Honda 31425-ZB2-000ZA

SEE PART DETAILS - SUP; CASE, CONTROL *R8* (BRIGHT RED)

$

$

Not available

6

Honda 31425-ZB2-000ZE

SEE PART DETAILS - PRI; CASE, CONTROL *R280* (POWER RED)

$125.99

$

Usually ships in 3-6 days

0

7

Honda 31428-ZA5-003

TERMINAL ASSY., GROUND

$

$

Not available

8

Honda 31430-ZB3-630

BREAKER, CIRCUIT (17.5A) (NOT AVAILABLE)

$

$

Not available

9

Honda 32330-877-000

RECEPTACLE (15A/125V)

$72.99

$

Usually ships in 3-6 days

0

10

Honda 32343-892-003

KNOB, PETCOCK LEVER

$12.99

$

Usually ships in 3-6 days

0

11

Honda 32350-ZB3-702

SEE PART DETAILS - SUP; REGULATOR UNIT, AUTOMATIC VOLTAGE
(Superseded to 32350-ZB3-703)

Note: Use up to Frame SN 2299267.

$190.99

$

Usually ships in 3-6 days

0

11

Honda 32350-ZB3-703

SEE PART DETAILS - PRI; REGULATOR UNIT, AUTOMATIC VOLTAGE

$190.99

$

Usually ships in 3-6 days

0

12

Honda 36106-892-003

BUSH, CONTROL KNOB

$6.49

$

Usually ships in 3-6 days

0

13

Honda 36110-ZB2-003

SWITCH ASSY., ENGINE

$32.99

$

Usually ships in 3-6 days

0

14

Honda 87501-ZB2-630

MARK, SWITCH (NOT AVAILABLE)

$

$

Not available

15

Honda 87502-ZB2-630

MARK, OIL ALERT (NOT AVAILABLE)

$

$

Not available

16

Honda 87534-892-640

MARK, GROUND

$2.49

$

In Stock, Qty 5

0

17

Honda 93500-04006-0A

SCREW, PAN (4X6)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

19

Honda 93891-06045-08

SCREW-WASHER (6X45)

$

$

Not available

20

Honda 93892-04008-08

SCREW-WASHER (4X8)

$1.49

$

Usually ships in 3-6 days

0
