EB3000 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1000001 - GE300-9999999) REAR HOUSING + BRUSH HOLDER Parts Diagram

Generator, Made in Japan

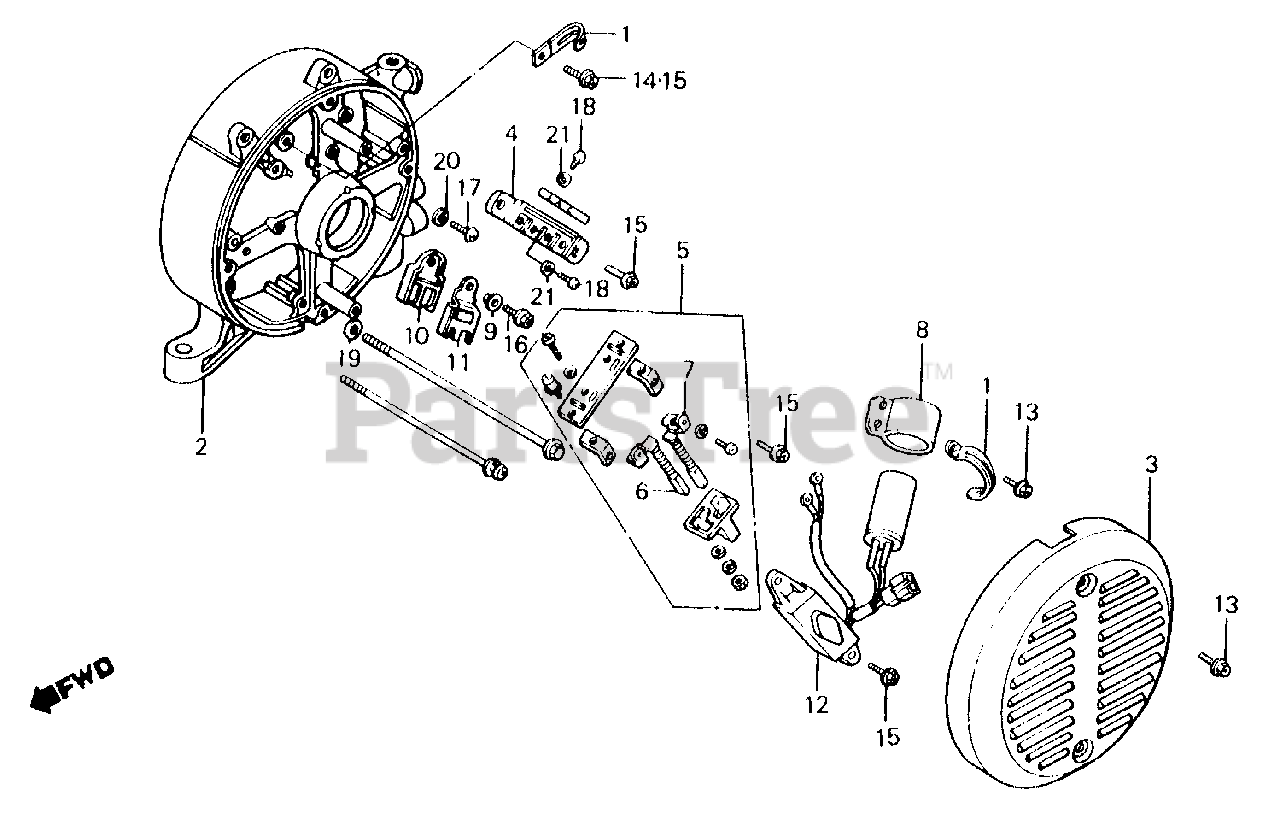

REAR HOUSING + BRUSH HOLDER Parts Diagram

  • Title

NI

Honda 92020-06160-1H

BOLT, HEX. (6X160)

$

$

Not available

1

Honda 30564-871-601

CLAMP B, WIRE

$8.99

$

Usually ships in 3-6 days

0

2

Honda 311A0-899-000H

HOUSING, RR. *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Not available

3

Honda 31113-899-000H

COVER, ALTERNATOR END *R8* (BRIGHT RED) (NOT AVAILABLE)

$107.99

$

Usually ships in 3-6 days

0

4

Honda 31118-880-000

TERMINAL, A.C. OUT

$75.99

$

Usually ships in 3-6 days

0

5

Honda 31120-880-010

SEE PART DETAILS - PRI; HOLDER ASSY., BRUSH

$

$

Not available

6

Honda 31122-880-000

BRUSH A

$36.99

$

In Stock, only 1 left!

0

7

Honda 31128-880-000

BRUSH B

$

$

Not available

8

Honda 31427-877-003

HOLDER, CONDENSER

$10.99

$

Usually ships in 3-6 days

0

12

Honda 32350-899-013

REGULATOR ASSY., AUTOMATIC VOLTAGE

$

$

Not available

13

Honda 90031-875-003

SCREW, TAPPING (5X12)

$3.49

$

In Stock, only 4 left!

0

14

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use up to Frame SN 1036915.

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use up to Frame SN 1036915.

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

Note: Use from Frame SN 1036916.

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90033-875-003

SCREW, TAPPING (5X16)

Note: Use from Frame SN 1036916.

$3.49

$

Usually ships in 3-6 days

0

17

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93500-06008-3J

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 90507-ZA0-003

WASHER, SPRING (5MM)

$

$

Not available

21

Honda 90506-ZA0-003

WASHER, SPRING (6MM)

$2.99

$

Usually ships in 3-6 days

0
