EB3000c K1 AN (EZGP) - Honda Generator, Made in Japan (SN: EZGP-1130001 - EZGP-9999999) BREATHER HEATER Parts Diagram

Generator, Made in Japan

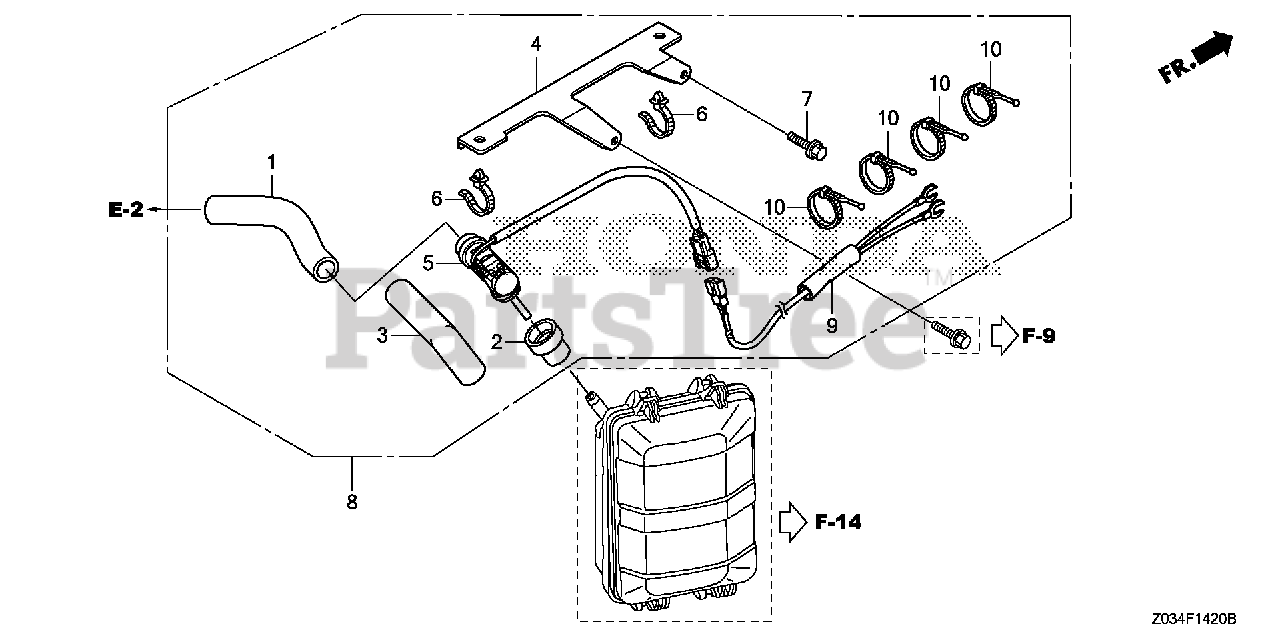

BREATHER HEATER Parts Diagram

  • Title

1

Honda 15721-Z03-C40

TUBE A, BREATHER

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

2

Honda 15722-ZS9-T40

TUBE B, BREATHER

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

3

Honda 15723-Z03-C40

INSULATOR L, BREATHER TUBE

Note: (Optional).

$34.99

$

Usually ships in 3-6 days

0

4

Honda 32103-Z03-C40

BRACKET, WIRE HARNESS CLIP

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

5

Honda 39310-ZS9-A42

HEATER ASSY., BREATHER

Note: (Optional).

$274.99

$

Usually ships in 3-6 days

0

6

Honda 91540-S30-003

CLIP, HARNESS BAND (151.5MM) (NATURAL)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

8

Honda 06390-Z04-E20

HEATER KIT, BREATHER
(Superseded to 06390-Z04-E21)

Note: (Optional).

$186.99

$

Usually ships in 3-6 days

0

9

Honda 32198-Z04-E20

SUB-WIRE ASSY.

Note: (Optional).

$50.99

$

Usually ships in 3-6 days

0

10

Honda 90672-ZB7-811

TIE, CABLE (NATURAL 154X3.4)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0
