EB3000c K2 A (EZGP) - Honda Generator, Made in Japan (SN: EZGP-1500001 - EZGP-9999999) FUEL TANK + FUEL STRAINER Parts Diagram

Generator, Made in Japan

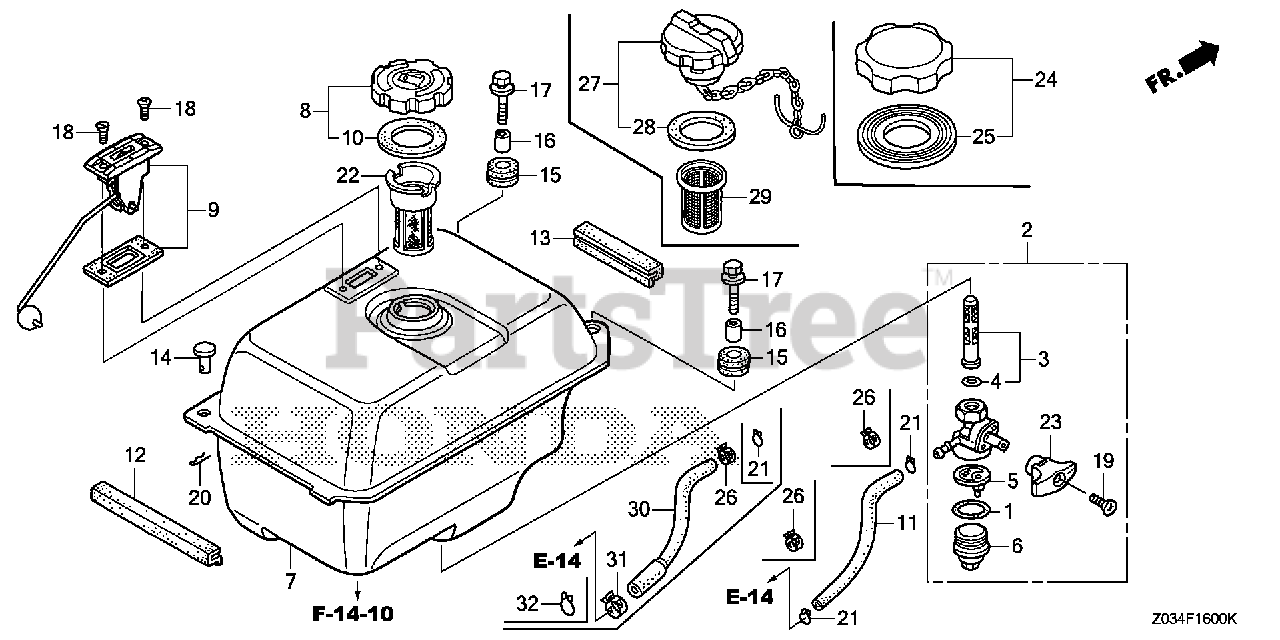

FUEL TANK + FUEL STRAINER Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$6.99

$

In Stock, Qty 9

0

2

Honda 16950-Z03-003

PETCOCK ASSY.

$88.99

$

Usually ships in 3-6 days

0

3

Honda 16952-KJ9-752

SEE PART DETAILS - PRI; SCREEN SET, FUEL STRAINER

$39.99

$

In Stock, Qty 8

0

3

Honda 16952-ZB4-005

SEE PART DETAILS - SUP; SCREEN SET, FUEL STRAINER
(Superseded to 16952-KJ9-752)

$39.99

$

In Stock, Qty 8

0

4

Honda 16958-397-771

O-RING (9.0X1.3)

$6.99

$

In Stock, Qty 9

0

5

Honda 16959-471-831

FILTER, CUP

$11.99

$

In Stock, Qty 13

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

$28.99

$

Usually ships in 3-6 days

0

7

Honda 17510-Z03-000ZC

TANK, FUEL *R280* (POWER RED)

$252.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

$

$

Not available

9

Honda 17630-Z03-013

METER ASSY., FUEL

$24.99

$

Usually ships in 3-6 days

0

10

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

$

$

Not available

11

Honda 17701-Z03-000

TUBE, FUEL TANK

$2.49

$

Usually ships in 3-6 days

0

12

Honda 63154-Z03-000

SEAL A, FUEL TANK MOUNTING

$3.49

$

Usually ships in 3-6 days

0

13

Honda 63155-Z03-000

SEAL B, FUEL TANK MOUNTING

$2.49

$

Usually ships in 3-6 days

0

14

Honda 90755-751-010

PIN, CLUTCH JOINT

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90852-898-000

RUBBER, CONTROL BOX

$4.99

$

In Stock, only 1 left!

0

16

Honda 91552-898-000

COLLAR, CONTROL BOX

$4.49

$

Usually ships in 3-6 days

0

17

Honda 93404-06020-00

BOLT-WASHER (6X20)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$0.99

$

In Stock, only 4 left!

0

19

Honda 93700-04018-0G

SCREW, OVAL (4X18)

$0.99

$

In Stock, Qty 6

0

20

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

21

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

22

Honda 17672-ZE2-W01

FILTER, FUEL

$12.99

$

In Stock, only 1 left!

0

23

Honda 16953-Z03-003

LEVER, PETCOCK

$10.99

$

In Stock, Qty 12

0
