EB3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-3000001 - EA6-3100000) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

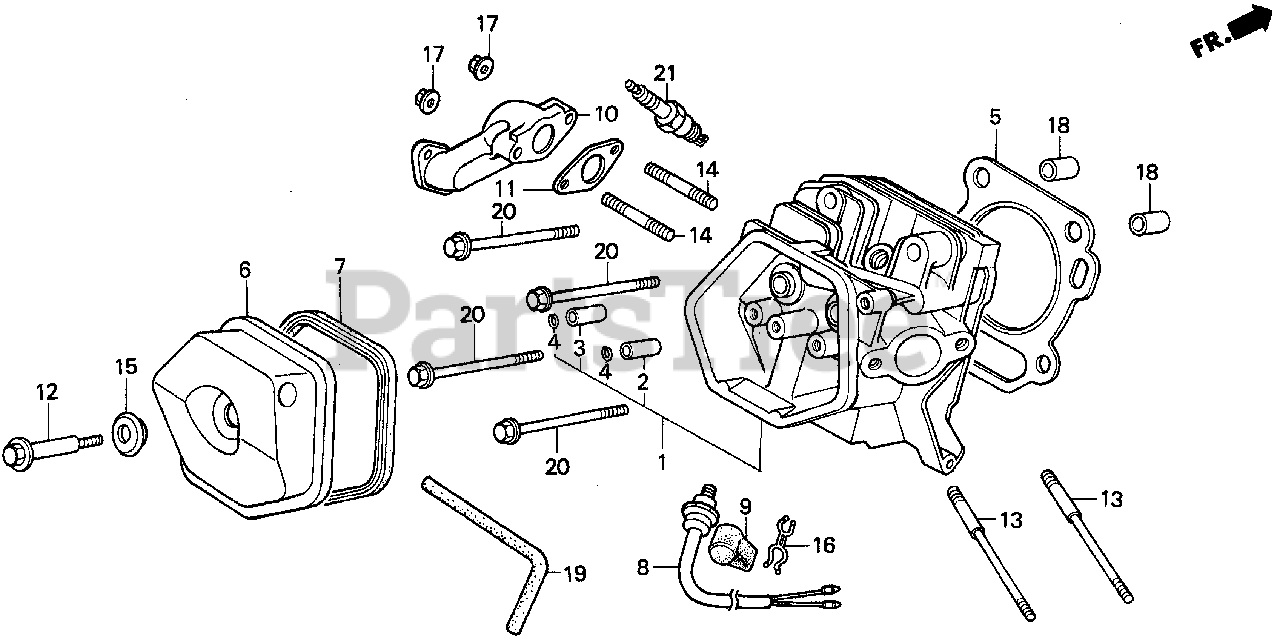

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE2-030

SEE PART DETAILS - PRI; CYLINDER HEAD

$

$

Not available

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4179164).

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-315

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)
(Superseded to 12204-ZE2-306)

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE2-305

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 2089563).

Note: (Optional).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3678539).
(Superseded to 12251-ZE2-801)

$13.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE2-010

SEE PART DETAILS - SUP; COVER, HEAD

$

$

Currently unavailable

7

Honda 12391-ZE2-000

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD COVER (Honda Code 2025419).
(Superseded to 12391-ZE2-020)

Note: Use up to Engine SN 1086328.

$10.99

$

In Stock, Qty 20+

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4300893).

$10.99

$

In Stock, Qty 20+

0

10

Honda 18330-ZE2-700

PIPE, EX.

$65.99

$

Usually ships in 3-6 days

0

11

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 16

0

11

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

$4.99

$

In Stock, Qty 16

0

12

Honda 90014-ZE2-000

BOLT, HEAD COVER (Honda Code 2027035).

$6.49

$

Usually ships in 3-6 days

0

13

Honda 90042-ZE2-700

BOLT, STUD (8X98)

$8.49

$

Usually ships in 3-6 days

0

14

Honda 90047-ZE2-000

SEE PART DETAILS - SUP; BOLT, STUD (Honda Code 2027050).

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$5.99

$

In Stock, Qty 6

0

17

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

18

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$2.99

$

In Stock, only 3 left!

0

20

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$3.99

$

In Stock, Qty 5

0

21

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.49

$

In Stock, Qty 20+

0

21

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

In Stock, only 1 left!

0
