EB4000X AT (EBSC) - Honda Generator, Made in China (SN: EBSC-1000001 - EBSC-9999999) ROTOR + STATOR Parts Diagram

Generator, Made in China

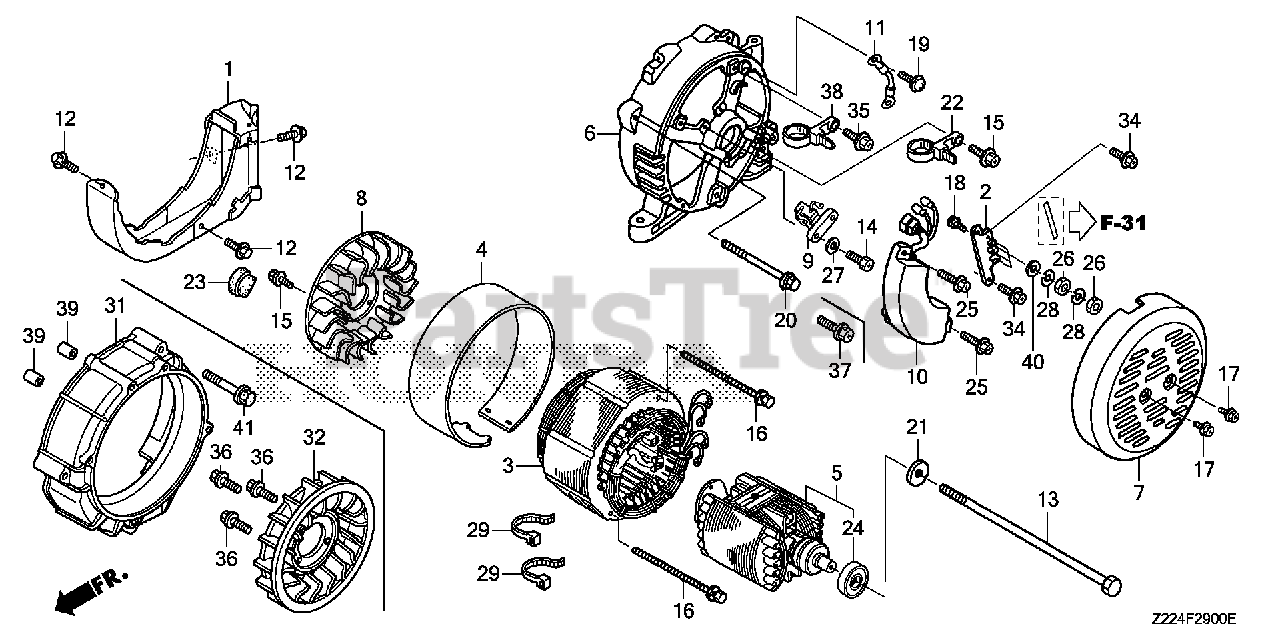

ROTOR + STATOR Parts Diagram

  • Title

2

Honda 31118-Z22-000

TERMINAL, VOLT CHANGE

$26.99

$

Usually ships in 3-6 days

0

3

Honda 31120-Z31-S30

STATOR ASSY.

$1251.99

$

Usually ships in 3-6 days

0

4

Honda 31127-Z31-000ZA

COVER, STATOR *NH105* (MAT BLACK)

$36.99

$

Usually ships in 3-6 days

0

5

Honda 31130-Z31-000

ROTOR

$692.99

$

Usually ships in 3-6 days

0

6

Honda 31171-Z23-F00

HOUSING, RR.

$268.99

$

Usually ships in 3-6 days

0

7

Honda 31186-Z22-000ZA

COVER, GENERATOR END *NH105* (MAT BLACK)

$66.99

$

Usually ships in 3-6 days

0

9

Honda 31295-Z30-000

BRUSH ASSY.

$22.99

$

In Stock, only 2 left!

0

11

Honda 32611-Z22-000

WIRE, GROUND

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90101-Z31-000

BOLT, HEX. (10X237)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90101-Z18-000

SCREW, TAPPING (5X12)

$1.99

$

In Stock, only 3 left!

0

18

Honda 90102-Z22-000

BOLT, HEX. (5X20)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90102-Z21-000

SCREW, PAN (5X12)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90157-Z31-000

BOLT, FLANGE (6X147)

$5.99

$

Usually ships in 3-6 days

0

21

Honda 90504-ZA0-000

WASHER (10.5MM)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 91051-ZB4-003

BEARING ASSY. (6204)

$30.99

$

Usually ships in 3-6 days

0

26

Honda 90301-Z22-000

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 31161-Z30-000

HOUSING, FR.

$121.99

$

In Stock, only 2 left!

0

32

Honda 31190-Z30-000

FAN, GENERATOR COOLING

$23.99

$

Usually ships in 3-6 days

0

34

Honda 90032-875-000

SCREW, TAPPING (5X14)

$3.99

$

Usually ships in 3-6 days

0

35

Honda 90032-875-000

SCREW, TAPPING (5X14)

$3.99

$

Usually ships in 3-6 days

0

36

Honda 90032-875-000

SCREW, TAPPING (5X14)

$3.99

$

Usually ships in 3-6 days

0

37

Honda 90131-Z30-000

SCREW, TAPPING (5X18)

$3.99

$

Usually ships in 3-6 days

0

38

Honda 90673-Z22-000

TIE, CABLE

$4.99

$

Usually ships in 3-6 days

0

39

Honda 90701-Z7E-000

PIN, DOWEL (8X12)

$2.99

$

Usually ships in 3-6 days

0

40

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

41

Honda 95701-08060-00

BOLT, FLANGE (8X60)

$1.99

$

In Stock, Qty 8

0
