EB5000X A (EA7) - Honda Generator, Made in Japan (SN: EA7-3000001 - EA7-3100000) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

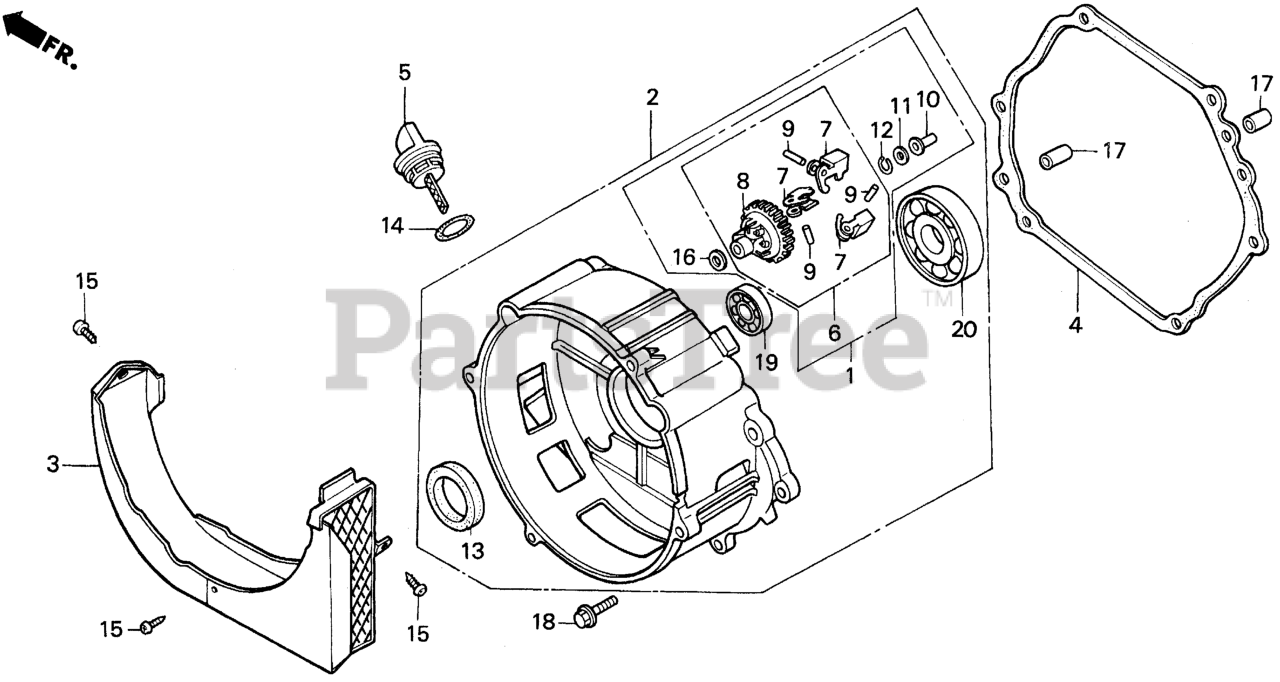

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 06165-ZE3-000

SEE PART DETAILS - SUP; GOVERNOR KIT Use from Engine SN 2086153.
(Superseded to 06165-ZE3-020)

Note: (Optional) Use from Engine SN 1421333.

$28.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE3-010

SEE PART DETAILS - SUP; GOVERNOR KIT Use from Engine SN 2086153.
(Superseded to 06165-ZE3-020)

Note: (Optional) Use from Engine SN 1421333.

$28.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE3-020

SEE PART DETAILS - PRI; GOVERNOR KIT Use from Engine SN 2086153.

Note: (Optional) Use from Engine SN 1421333.

$28.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE8-000

GOVERNOR KIT Use up to Engine SN 2086152.

Note: (Optional) Use up to Engine SN 1421332.

$

$

Not available

2

Honda 11300-ZE3-700

COVER ASSY., CRANKCASE (E-TYPE)

$

$

Currently unavailable

2

Honda 11300-ZE3-701

COVER ASSY., CRANKCASE (E-TYPE) (NOT AVAILABLE)

Note: Use up to Engine SN 1421332.

$

$

Currently unavailable

2

Honda 11300-ZE3-702

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (E-TYPE)
(Superseded to 11300-ZE3-704)

Note: Use from Engine SN 1421333.

$304.99

$

Usually ships in 3-6 days

0

2

Honda 11300-ZE3-704

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

Note: Use from Engine SN 1421333.

$304.99

$

Usually ships in 3-6 days

0

3

Honda 11315-ZE3-700

COVER, DUCT

$

$

Not available

4

Honda 11381-ZE3-306

SEE PART DETAILS - SUP; GASKET, CASE COVER (Honda Code 4414850).
(Superseded to 11381-ZE3-801)

$14.99

$

In Stock, only 2 left!

0

4

Honda 11381-ZE3-800

SEE PART DETAILS - PRI; GASKET, CASE COVER Use up to Engine SN 2949254.
(Superseded to 11381-ZE3-801)

$14.99

$

In Stock, only 2 left!

0

4

Honda 11381-ZE3-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 6436869).

$14.99

$

In Stock, only 2 left!

0

5

Honda 15620-ZE2-700

CAP, OIL FILLER

$9.49

$

In Stock, Qty 11

0

6

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

Note: Use from Engine SN 1421333.

$35.99

$

In Stock, Qty 8

0

6

Honda 16510-ZE8-000

GOVERNOR ASSY. (Honda Code 2278521).

Note: Use up to Engine SN 1421332.

$24.99

$

Usually ships in 3-6 days

0

7

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$8.49

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

Note: Use from Engine SN 1421333.

$20.99

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE8-000

HOLDER, GOVERNOR WEIGHT (Honda Code 2090108).

Note: Use up to Engine SN 1421332.

$21.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR (Honda Code 2025989).
(Superseded to 16531-Z0A-000)

$4.49

$

In Stock, only 1 left!

0

10

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$4.49

$

In Stock, only 1 left!

0

11

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16) (Honda Code 0465591).

$1.99

$

In Stock, Qty 5

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 7

0

12

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER (Honda Code 0928101).

Note: Use up to Engine SN 1197942.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$12.99

$

In Stock, Qty 5

0

14

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$5.99

$

In Stock, only 2 left!

0

15

Honda 93904-35110

SCREW, TAPPING (5X10)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

17

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

Note: Use from Engine SN 1253028.

$4.49

$

In Stock, only 2 left!

0

17

Honda 94301-08120

SEE PART DETAILS - PRI; PIN A, DOWEL (8X12) (Honda Code 0069328).

Note: Use up to Engine SN 1253027.

$3.49

$

Usually ships in 3-6 days

0

18

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 20+

0

19

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$13.99

$

In Stock, only 2 left!

0

20

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$60.99

$

In Stock, only 2 left!

0
