EB5000X K2 AN (EAKC) - Honda Generator, Made in China (SN: EAKC-1000001 - EAKC-9999999) MUFFLER (1) Parts Diagram

Generator, Made in China

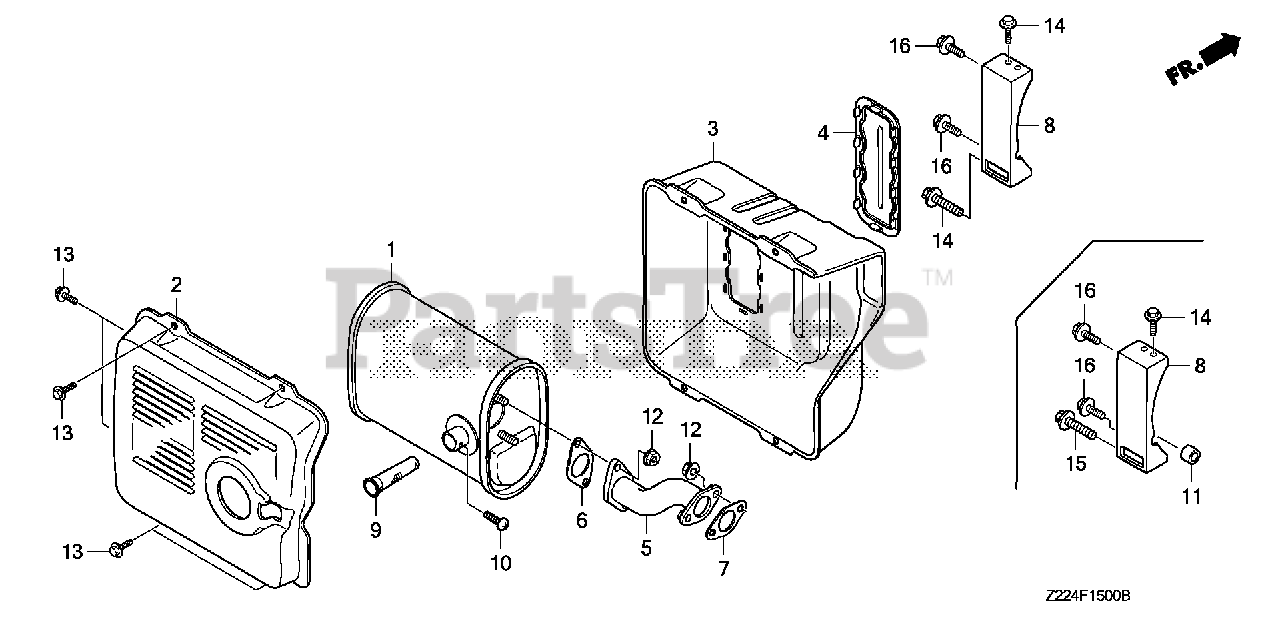

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-Z22-E30

SEE PART DETAILS - SUP; MUFFLER
(Superseded to 18310-Z22-E31)

$176.99

$

Usually ships in 3-6 days

0

1

Honda 18310-Z22-E31

SEE PART DETAILS - PRI; MUFFLER

$176.99

$

Usually ships in 3-6 days

0

2

Honda 18320-Z22-000ZA

PROTECTOR, MUFFLER (OUTER) *NH105* (MAT BLACK)

$

$

Not available

3

Honda 18326-Z22-000ZA

PROTECTOR, MUFFLER (INNER) *NH105* (MAT BLACK)

$

$

Not available

4

Honda 18329-Z22-000

SEAL, MUFFLER PROTECTOR

$20.99

$

Usually ships in 3-6 days

0

5

Honda 18331-Z22-000

PIPE, EX.

$

$

Not available

6

Honda 18333-ZB4-801

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.99

$

In Stock, only 2 left!

0

7

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$5.99

$

In Stock, Qty 20+

0

7

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$5.99

$

In Stock, Qty 20+

0

8

Honda 18338-ZR6-T60

STAY, MUFFLER

$

$

Not available

9

Honda 18355-Z22-E30

ARRESTER, SPARK

$35.99

$

Usually ships in 3-6 days

0

10

Honda 90002-ZE2-U91

SCREW, TAPPING (4X8)

$1.49

$

In Stock, Qty 8

0

12

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 95701-06010-07

BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 4 left!

0

14

Honda 95701-08016-07

BOLT, FLANGE (8X16)

Note: Use up to Frame SN 1021769.

$2.99

$

In Stock, Qty 9

0

14

Honda 95701-08016-00

BOLT, FLANGE (8X16)

Note: Use from Frame SN 1021770.

$2.99

$

In Stock, Qty 20+

0

16

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.99

$

In Stock, Qty 9

0
