EB5000X K3 AN (EBPC) - Honda Generator, Made in China (SN: EBPC-1500001 - EBPC-9999999) CONTROL PANEL (5) Parts Diagram

Generator, Made in China

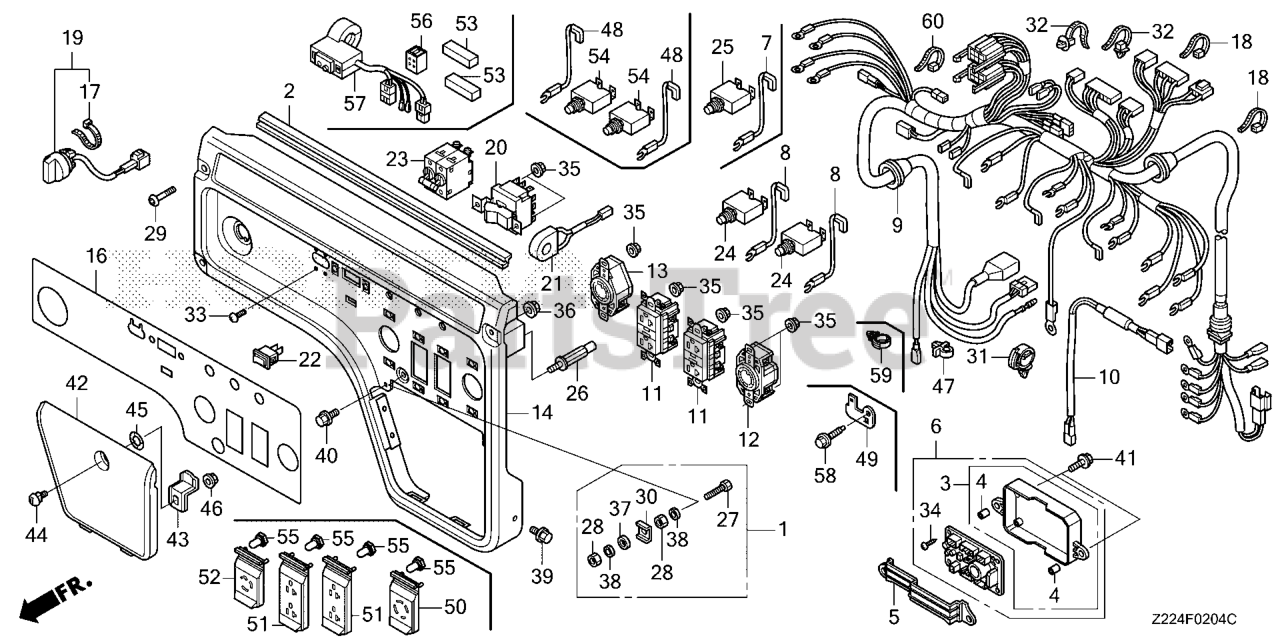

CONTROL PANEL (5) Parts Diagram

  • Title

1

Honda 31428-Z22-000

TERMINAL SET, GROUND

$9.99

$

Usually ships in 3-6 days

0

2

Honda 31462-Z23-F10

RUBBER, CONTROL PANEL

$11.99

$

Usually ships in 3-6 days

0

3

Honda 31705-Z30-C40

CASE, AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE)

$5.99

$

Usually ships in 3-6 days

0

4

Honda 31706-Z30-C40

COLLAR, AUTOMATIC VOLTAGE REGULATOR CASE (NOT AVAILABLE)

$5.99

$

Usually ships in 3-6 days

0

5

Honda 31707-Z30-C40

COVER, AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE)

$7.49

$

Usually ships in 3-6 days

0

6

Honda 31720-Z22-F10

CASE ASSY., AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE)

$248.99

$

Usually ships in 3-6 days

0

6

Honda 31720-Z22-F20

COVER ASSY., AUTOMATIC VOLTAGE REGULATOR

$487.99

$

Usually ships in 3-6 days

0

8

Honda 32101-Z23-F20

SUB-WIRE ASSY. (A)

$9.99

$

In Stock, only 1 left!

0

9

Honda 32150-Z22-D30

WIRE HARNESS ASSY., CONTROL (EB-AG)

$291.99

$

Usually ships in 3-6 days

0

11

Honda 32330-Z44-J31

RECEPTACLE (20A-125V) (GFCI)
(Superseded to 32330-Z44-J32)

$139.99

$

Usually ships in 3-6 days

0

12

Honda 32334-Z22-A31

RECEPTACLE (30A-125/250V)

$123.99

$

Usually ships in 3-6 days

0

13

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

$103.99

$

In Stock, only 1 left!

0

14

Honda 32345-Z22-D30ZA

PANEL, CONTROL *R280* (EB-AG) (POWER RED)

$284.99

$

Usually ships in 3-6 days

0

16

Honda 32366-Z22-D30

MARK, PANEL (EB-AG)

$96.99

$

Usually ships in 3-6 days

0

17

Honda 32902-892-003

BAND (Honda Code 0947457).

$5.49

$

In Stock, Qty 9

0

19

Honda 35120-Z30-C41

SWITCH ASSY., ENGINE STOP

$37.99

$

In Stock, only 2 left!

0

20

Honda 35320-Z22-E31

SWITCH ASSY., VOLT CHANGE

$125.99

$

Usually ships in 3-6 days

0

21

Honda 35694-Z23-003

SENSOR ASSY. (CT)

$121.99

$

In Stock, only 1 left!

0

22

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$28.99

$

In Stock, only 2 left!

0

23

Honda 38220-Z22-D33

BREAKER, CIRCUIT (21A)

$202.99

$

Usually ships in 3-6 days

0

24

Honda 38240-Z23-F20

PROTECTOR, CIRCUIT (20A)

$106.99

$

In Stock, only 2 left!

0

27

Honda 90111-Z22-000

BOLT, HEX. (6X28)

$3.99

$

Usually ships in 3-6 days

0

28

Honda 90112-Z22-000

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 90128-Z22-C30

BOLT, DISK (8X22) (TORX)

$4.49

$

In Stock, Qty 5

0

30

Honda 90501-ZA7-640

RETAINER (6MM)

$4.49

$

In Stock, only 1 left!

0

31

Honda 90681-763-A01

CLIP, WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

32

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.99

$

Usually ships in 3-6 days

0

33

Honda 93500-03005-0G

SCREW, PAN (3X5) (NOT AVAILABLE)

$

$

Currently unavailable

34

Honda 93911-24120

SCREW, TAPPING (4X10) (PO)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 2 left!

0

36

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

37

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

38

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 2 left!

0

40

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 20+

0

41

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, Qty 20+

0

42

Honda 50361-Z23-F10

COVER (LOWER)

$59.99

$

In Stock, only 1 left!

0

43

Honda 50362-Z23-F10

LOCK PLATE, COVER (LOWER)

$11.99

$

In Stock, only 2 left!

0

44

Honda 90163-Z23-F10

BOLT, MAINTENANCE LID LOCK

$3.49

$

In Stock, only 2 left!

0

45

Honda 90444-397-000

WASHER, WAVE (12MM)

$6.49

$

In Stock, only 2 left!

0

46

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

48

Honda 32101-Z23-F20

SUB-WIRE ASSY. (A)

$9.99

$

In Stock, only 1 left!

0

49

Honda 32108-Z22-D30

BRACKET, CONNECTOR

$8.49

$

Usually ships in 3-6 days

0

50

Honda 32320-Z37-R50

COVER, RECEPTACLE (30A-125/250V)

$22.99

$

Usually ships in 3-6 days

0

51

Honda 32320-ZS9-W30

COVER, RECEPTACLE (20A-125V)

$22.99

$

Usually ships in 3-6 days

0

52

Honda 32321-ZS9-W30

COVER, RECEPTACLE (30A-125V)

$22.99

$

Usually ships in 3-6 days

0

53

Honda 32347-ZS9-W30

RUBBER, WATERPROOF

$5.99

$

Usually ships in 3-6 days

0

54

Honda 38241-Z23-F20

PROTECTOR, CIRCUIT (30A)

$31.99

$

In Stock, only 2 left!

0

55

Honda 38242-Z25-A62

COVER, CIRCUIT PROTECTOR

$20.99

$

Usually ships in 3-6 days

0

56

Honda 38530-Z22-D31

LED ASSY., INDICATER

$41.99

$

Usually ships in 3-6 days

0

57

Honda 38540-Z04-J31

RELAY ASSY. (GFCI)
(Superseded to 38540-Z22-D31)

$762.99

$

Usually ships in 3-6 days

0

58

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

59

Honda 90684-ZA0-601

SEE PART DETAILS - PRI; CLIP, WIRE HARNESS (Honda Code 2539138).

$5.49

$

In Stock, only 1 left!

0

60

Honda 32903-Z22-000

TIE, CABLE (C)

$2.99

$

Usually ships in 3-6 days

0
