EB7000i A (EAKJ) - Honda Generator, Made in Japan (SN: EAKJ-1000001 - EAKJ-9999999) CARBURETOR (EB5000I/EB7000I) Parts Diagram

Generator, Made in Japan

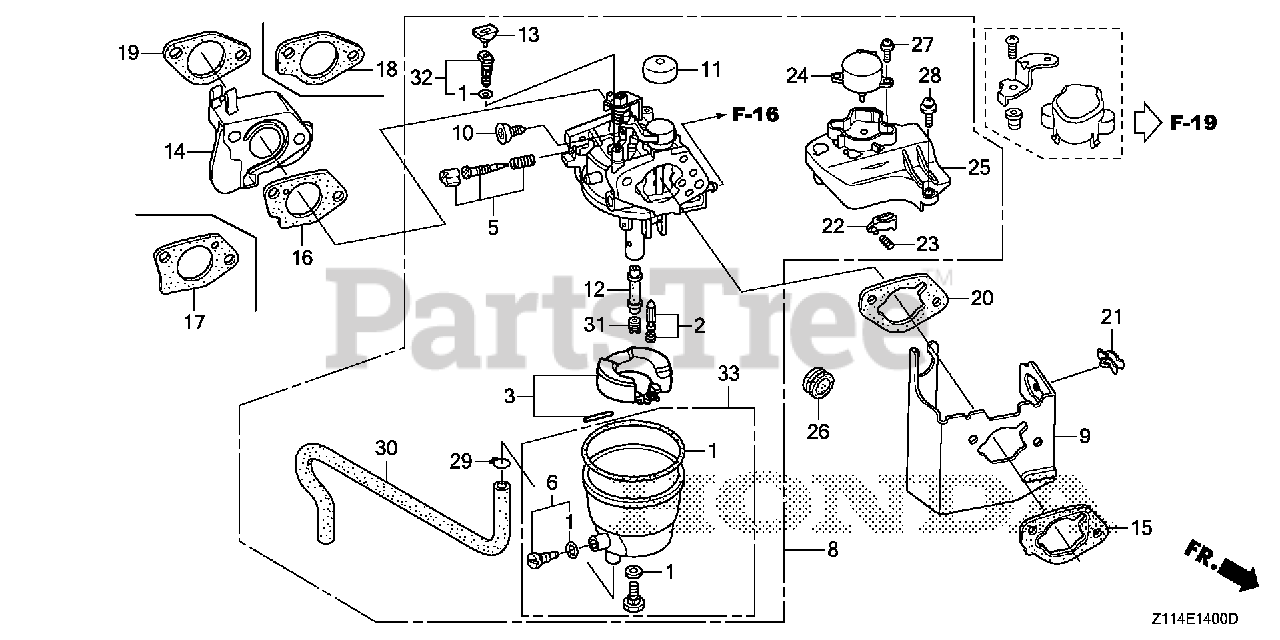

CARBURETOR (EB5000I/EB7000I) Parts Diagram

  • Title

1

Honda 16010-ZA0-921

GASKET SET

$17.99

$

In Stock, Qty 11

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$40.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

$46.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

$75.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$19.99

$

In Stock, only 4 left!

0

6

Honda 16024-124-760

SCREW SET, DRAIN

$13.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-701

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 06160-Z1C-325)

$22.99

$

In Stock, Qty 6

0

8

Honda 16100-ZK3-D84

CARBURETOR ASSY. (BE82L D)

$209.99

$

Usually ships in 3-6 days

0

9

Honda 16105-ZF6-F40

HOLDER, TUBE

Note: Use up to Engine SN 4004556.

$13.99

$

Usually ships in 3-6 days

0

9

Honda 16105-ZF6-F41

HOLDER, TUBE

Note: Use from Engine SN 4004557.

$11.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZF6-F41

SCREW, STOP

$11.99

$

Usually ships in 3-6 days

0

11

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZK3-D41

NOZZLE, MAIN

$21.99

$

Usually ships in 3-6 days

0

13

Honda 16172-ZE3-W10

COLLAR, SETTING

$9.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZK3-D40

INSULATOR, CARBURETOR

$16.99

$

Usually ships in 3-6 days

0

15

Honda 16220-ZA0-702

SPACER, CARBURETOR

$11.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 10

0

19

Honda 16223-ZE3-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.49

$

In Stock, Qty 9

0

20

Honda 16269-ZA0-800

GASKET, AIR CLEANER

$2.49

$

In Stock, Qty 10

0

21

Honda 32171-ZF6-F91

CLIP, HARNESS

$2.99

$

Usually ships in 3-6 days

0

22

Honda 36161-ZL0-D31

LEVER, LINK

$13.99

$

Usually ships in 3-6 days

0

23

Honda 36162-ZL0-D31

SPRING, COMPRESSION COIL

$6.49

$

In Stock, Qty 10

0

24

Honda 36165-ZF6-F41

MOTOR, THROTTLE CONTROL

$92.99

$

Usually ships in 3-6 days

0

25

Honda 36166-ZF6-F91

BRACKET, THROTTLE MOTOR (CARBURETOR NO.)

Note: Use up to Engine SN BE82L A.

$22.99

$

Usually ships in 3-6 days

0

25

Honda 36166-ZF6-F92

BRACKET, THROTTLE MOTOR (CARBURETOR NO.)

Note: Use from Engine SN BE82L B.

$20.99

$

Usually ships in 3-6 days

0

26

Honda 88911-MJ3-000

GROMMET, FENDER

$2.49

$

In Stock, Qty 5

0

27

Honda 90003-ZL0-D30

SCREW-WASHER (3X8)

$2.49

$

In Stock, only 4 left!

0

28

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12)
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 95002-45000

CLIP, TUBE (C8)

$1.99

$

In Stock, Qty 9

0

30

Honda 95003-09001-60M

BULK HOSE, VINYL (4.5X8X1000) (95003-(95003-09001-60M)

$4.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88)

Note: (Optional).

$7.49

$

In Stock, only 1 left!

0

31

Honda 99101-ZH8-0900

JET, MAIN (#90)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-0920

JET, MAIN (#92)

$7.49

$

Usually ships in 3-6 days

0

32

Honda 99204-ZA0-0450

JET SET, PILOT (#45)

$21.99

$

In Stock, only 1 left!

0

33

Honda 06160-Z1C-305

BOLT KIT, FUEL CHAMBER
(Superseded to 06160-Z1C-325)

$22.99

$

In Stock, Qty 6

0
