EBTP 22675 HW (7800694) - Brute 22" Walk-Behind Mower (2010) Handle & Bag Group (Hi-Wheel) Parts Diagram

22" Walk-Behind Mower

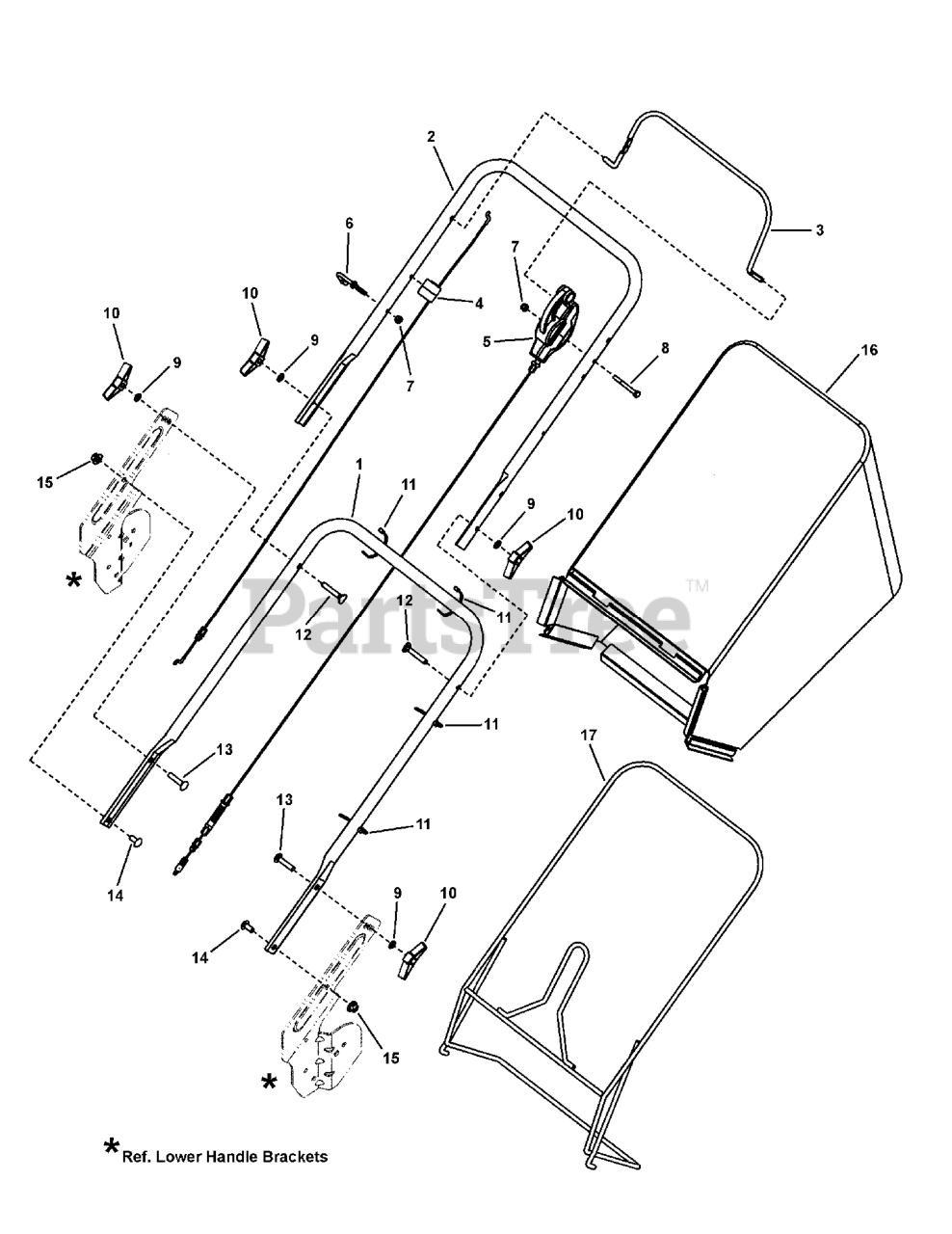

Handle & Bag Group (Hi-Wheel) Parts Diagram

  • Title

1

Murray 7301013AYP

HANDLE, Lower

$143.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

HANDLE, Upper, Propelled

$51.99

$

Usually ships in 2-12 days

0

3

Murray 7103975AYP

BAIL, OPC Propelled

$12.99

$

Usually ships in 2-12 days

0

4

Murray 7103977YP

CABLE, Bail, 22" Brute WBM

$41.99

$

In Stock, only 4 left!

0

5

Murray 1101670MA

CONTROL, Drive, Single Speed

$54.99

$

Usually ships in 2-12 days

0

6

Murray 071530MA

GUIDE, Rope (1/4-20 thread)

$5.99

$

Usually ships in 2-12 days

0

7

Murray 7076978SM

NUT,1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 7090892YP

SCREW, 1/4-20 x 2-1/4" Hex Head Cap, GR 5
(Superseded to 1960346SM)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 80003683YP

WASHER, 5/16" Internal Tooth Lock

Note: (Was 7090391SM)

$

$

Currently unavailable

10

Murray 671294MA

KNOB, 5/16-18 Wing Nut
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

11

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

12

Murray 80003918YP

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2

Note: (Was 7091189YP)

$

$

Currently unavailable

13

Murray 80004473YP

BOLT, 5/16-18 x 1" Round Head Square Neck, GR 5 YZ

Note: (Was 7091714YP)

$

$

Currently unavailable

14

Murray 80004072YP

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5

Note: (Was 7091508SM)

$

$

Currently unavailable

15

Murray 80002728YP

NUT, 5/16-18 Large Head Center Lock

Note: (Was 7090951SM)

$

$

Currently unavailable

16

Murray 7102573YP

GRASS BAG, 22" Rear Discharge

$128.99

$

Usually ships in 2-12 days

0

17

Murray 7101230AYP

BAG FRAME, 22" WBM

$222.99

$

Usually ships in 2-12 days

0
