EBZ 5100 Q - RedMax Backpack Blower (SN: 70900101 & Above) (2007-09) 002 - BLOWER Parts Diagram

Backpack Blower

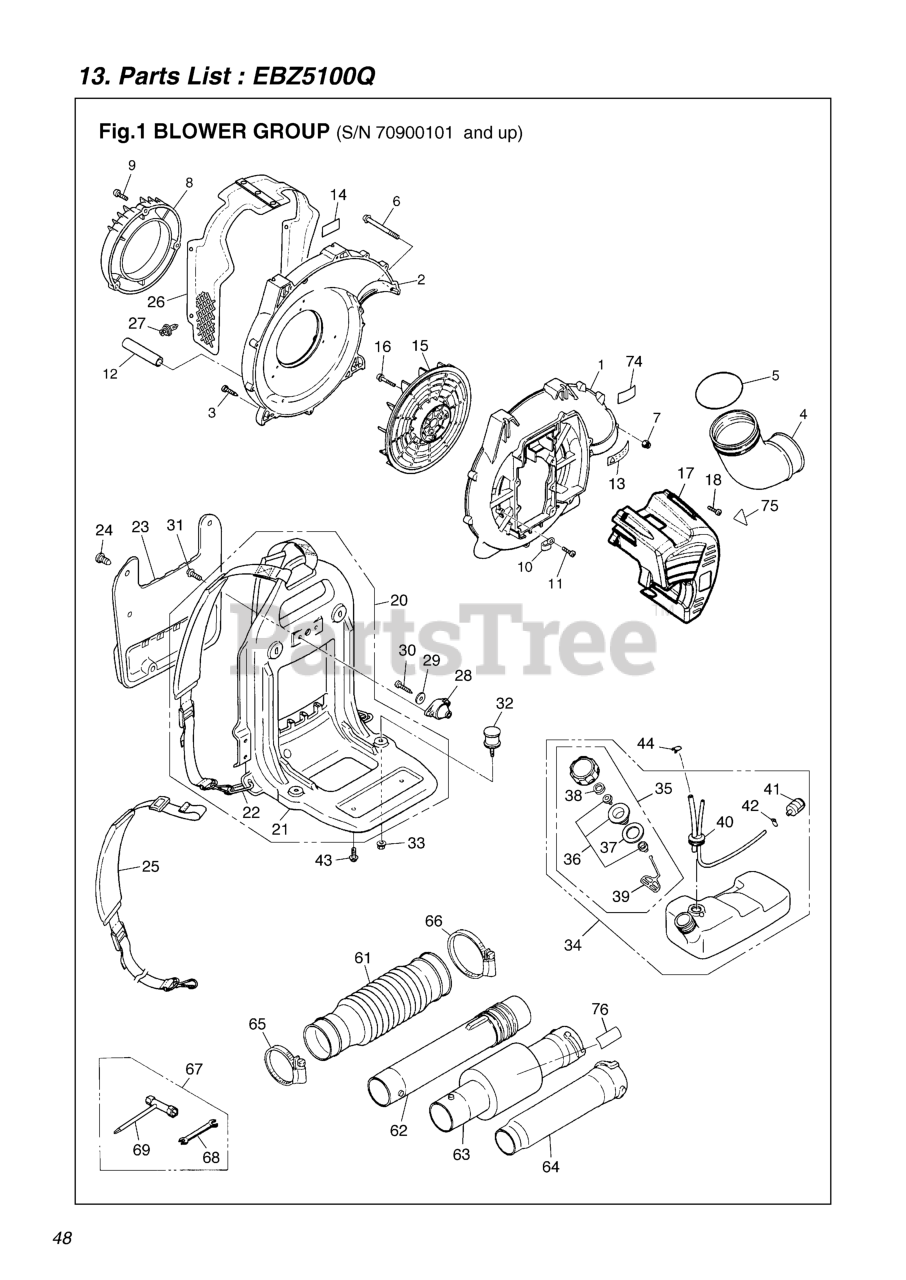

002 - BLOWER Parts Diagram

  • Title

1

RedMax 848L3H55A0

VOLUTE CASE
(Superseded to 574769301)

$85.99

$

Usually ships in 3-10 days

0

2

RedMax 848L3H55B1

VOLUTE COVER
(Superseded to 511727901)

$68.99

$

Usually ships in 3-10 days

0

3

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 20+

0

4

RedMax T403031410

ELBOW
(Superseded to 577078701)

$10.99

$

In Stock, Qty 6

0

5

RedMax 0700002095

O-RING
(Superseded to 544264501)

$4.99

$

In Stock, Qty 12

0

6

RedMax T496057030

SCREW
(Superseded to 544264601)

$6.49

$

In Stock, only 4 left!

0

7

RedMax 331053331

NUT
(Superseded to 514183901)

$4.99

$

In Stock, only 1 left!

0

8

RedMax 848L3H55D0

FUNNEL
(Superseded to 511728001)

$10.99

$

Usually ships in 3-10 days

0

9

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 20+

0

10

RedMax 275072230

CLAMP
(Superseded to 513671901)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax T497051410

SCREW

$

$

Not available

12

RedMax 275031290

TUBE
(Superseded to 516869801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 275031911

LABEL
(Superseded to 516873201)

$

$

Not available

14

RedMax T401232610

LABEL, NET
(Superseded to 521832401)

$6.49

$

Usually ships in 3-10 days

0

15

RedMax T401731510

FAN
(Superseded to 502850201)

$66.99

$

Usually ships in 3-10 days

0

16

RedMax 8488163500

BOLT
(Superseded to 544265101)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 848L3H31A0

ENGINE COVER
(Superseded to 511726901)

$42.99

$

Usually ships in 3-10 days

0

18

RedMax T497052510

SCREW
(Superseded to 512848101)

$3.99

$

In Stock, Qty 20+

0

20

RedMax 848L5C3502

FRAME ASSY
(Superseded to 511782401)

$159.99

$

Usually ships in 3-10 days

0

21

RedMax 848L5C3510

FRAME COMP
(Superseded to 511782501)

$109.99

$

Usually ships in 3-10 days

0

22

RedMax 349021121

RING
(Superseded to 521142801)

$4.99

$

In Stock, Qty 11

0

23

RedMax 848L5C35C0

PAD
(Superseded to 511782601)

$53.99

$

In Stock, only 3 left!

0

24

RedMax 349521320

CLIP
(Superseded to 526476701)

$3.99

$

In Stock, Qty 20+

0

25

RedMax 848L303611

BAND ASSY
(Superseded to 511709601)

$34.99

$

Usually ships in 3-10 days

0

26

RedMax 848L533521

NET COMP
(Superseded to 511743601)

$10.99

$

Usually ships in 3-10 days

0

27

RedMax 148074710

CLIP
(Superseded to 516342801)

$7.49

$

Usually ships in 3-10 days

0

28

RedMax 275032510

DAMPER, UPPER
(Superseded to 513666701)

$9.49

$

In Stock, only 2 left!

0

29

RedMax 8488705040

WASHER
(Superseded to 502850501)

$6.49

$

Usually ships in 3-10 days

0

30

RedMax T497254010

SCREW
(Superseded to 521863801)

$4.99

$

Usually ships in 3-10 days

0

31

RedMax T496051631

SCREW
(Superseded to 544270801)

$6.49

$

In Stock, Qty 10

0

32

RedMax 275032610

DAMPER, LOWER
(Superseded to 516875701)

$

$

Not available

33

RedMax 275032620

NUT
(Superseded to 513667501)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 848L5K8510

TANK ASSY
(Superseded to 528913101)

$

$

Not available

35

RedMax 848L238510

CAP ASSY
(Superseded to 504117701)

$30.99

$

In Stock, Qty 8

0

36

RedMax 450085300

HOLDER ASSY
(Superseded to 515369401)

$10.99

$

In Stock, only 1 left!

0

37

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

In Stock, Qty 8

0

38

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

39

RedMax 848L2385N0

STOPPER

$

$

Not available

40

RedMax T401285300

PIPE COMP
(Superseded to 521835501)

$

$

Not available

41

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 126085460

CLIP
(Superseded to 506707001)

$4.99

$

In Stock, Qty 13

0

43

RedMax T496051231

SCREW
(Superseded to 544273101)

$6.49

$

In Stock, Qty 5

0

44

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, only 2 left!

0

61

RedMax T403051110

HOSE
(Superseded to 577078801)

$15.99

$

In Stock, Qty 20+

0

62

RedMax 275051201

SWIVEL JOINT
(Superseded to 504064801)

$8.99

$

In Stock, Qty 20+

0

63

RedMax T401751300

PIPE, SILENCER
(Superseded to 521839701)

$72.99

$

Usually ships in 3-10 days

0

64

RedMax 681151220

PIPE, END
(Superseded to 521672301)

$17.99

$

In Stock, only 4 left!

0

65

RedMax 8488K40060

CLAMP
(Superseded to 510926301)

$4.99

$

In Stock, Qty 12

0

66

RedMax 8488K40030

CLAMP
(Superseded to 544274101)

$4.99

$

In Stock, Qty 20+

0

67

RedMax 8488U00020

TOOL-SET
(Superseded to 521532301)

$10.99

$

Usually ships in 3-10 days

0

68

RedMax 354091120

SPANNER
(Superseded to 506615001)

$7.49

$

In Stock, Qty 10

0

69

RedMax 8488U10020

SOCKET

$4.04

$

Usually ships in 3-10 days

0

74

RedMax 8488X50680

LABEL, SOUND
(Superseded to 510963701)

$2.23

$

Usually ships in 3-10 days

0

75

RedMax 848C1B90G0

LABEL, HOTMARK

$1.20

$

Usually ships in 3-10 days

0

76

RedMax 848L3N90U0

LABEL, SILENCER

$

$

Not available
