EBZ 5100 RH - RedMax Backpack Blower (SN: 70700001 & Above)

Backpack Blower

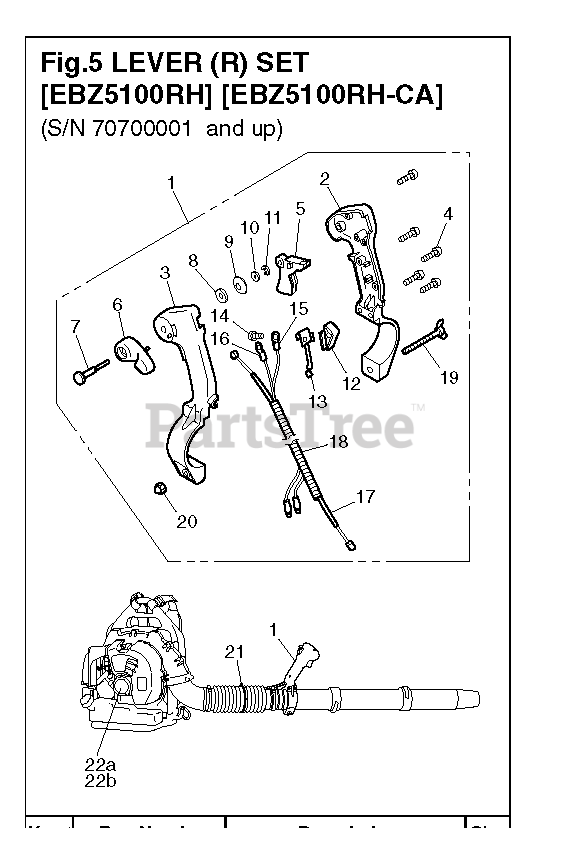

EBZ 5100 RH - RedMax Backpack Blower (SN: 70700001 & Above) > Parts Diagrams (4) > HANDLE CONTROLS

  • Title
511730301

1

LEVER SET

Part# 511730301

Note: . 2 3 4 5 6-20

OEM Warranty Repair Part for RedMax

Not available

512690801

2

COVER

Part# 512690801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $10.05

511746901

3

OBSOLETE - CASE

Part# 511746901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $11.17

521840701

4

OBSOLETE - SCREW 4X14(T)

Part# 521840701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

512694901

5

LEVER THROTTLE

Part# 512694901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

521673501

6

RP_LEVER (RPLS T402325430)

Part# 521673501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

512695601

7

OBSOLETE - SHAFT

Part# 512695601 (Superseded to 521841001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $8.93

521841101

8

WASHER(T)

Part# 521841101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521841201

9

RP_SPRING WASHER

Part# 521841201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

514154401

10

OBSOLETE - WASHER

Part# 514154401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521841301

11

RP_CLIP(T)

Part# 521841301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

512698001

12

SWTICH (T)

Part# 512698001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

521841601

13

OBSOLETE - SPRING (RPLS T402325720)

Part# 521841601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

521841701

14

RP_SCREW 4X10(T)

Part# 521841701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

510933801

15

CORD

Part# 510933801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

510933901

16

CORD

Part# 510933901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

512699701

17

CABLE

Part# 512699701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $20.11

510922501

18

TUBE

Part# 510922501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

514338401

19

BOLT WING

Part# 514338401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

513671401

20

NUT

Part# 513671401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

502842801

21

Clamp

Part# 502842801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

511728201

22A

Part# 511728201

OEM Warranty Repair Part for RedMax

Not available
