EBZ 5150 RH (966358401) - RedMax Backpack Blower (2012-08) CONTROLS Parts Diagram

Backpack Blower

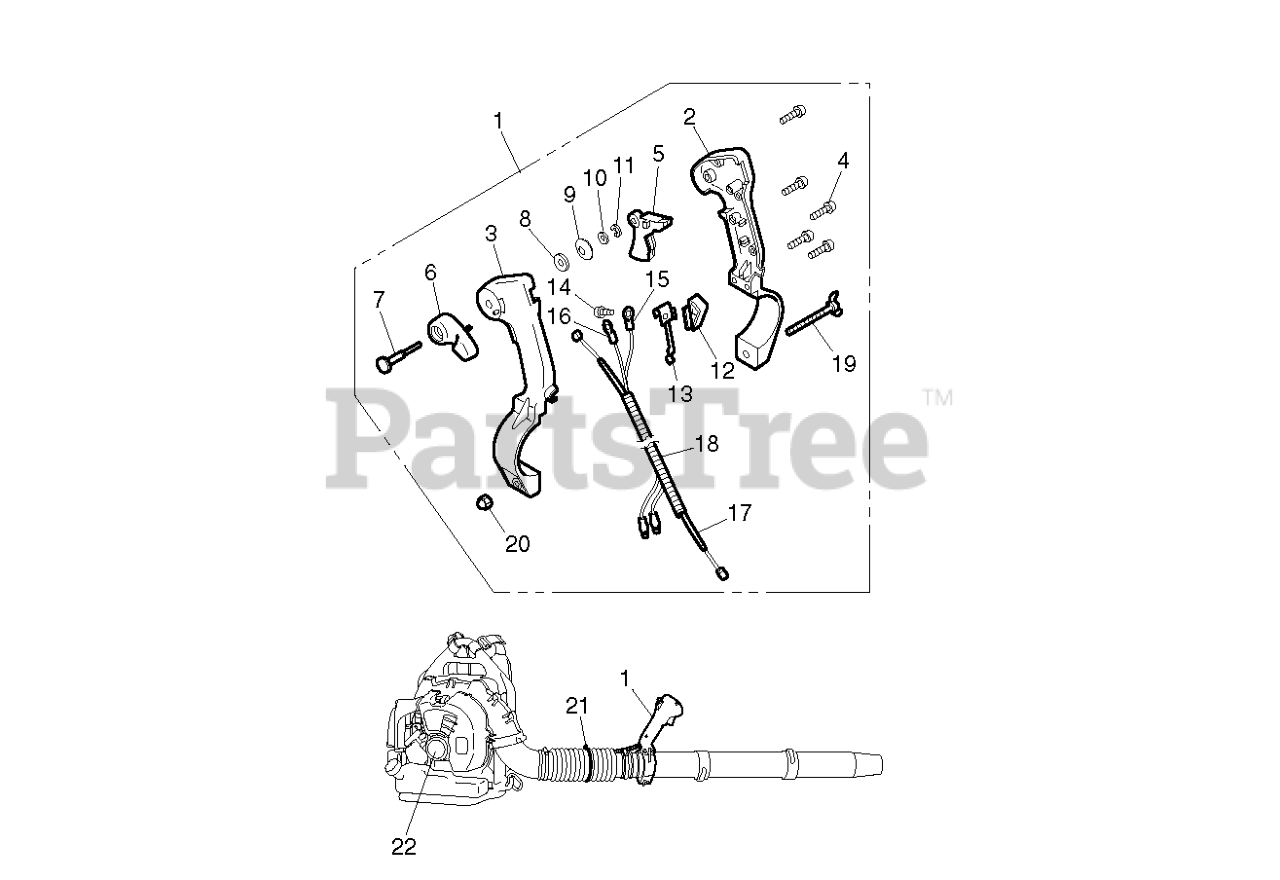

CONTROLS Parts Diagram

  • Title

1

RedMax 573931401

LEVER

Note: INCL 2 THRU 20

$56.99

$

Usually ships in 3-10 days

0

2

RedMax 512690801

COVER

$11.99

$

In Stock, only 3 left!

0

3

RedMax 511746901

CASE
(Superseded to 521673401)

$13.99

$

In Stock, only 2 left!

0

4

RedMax 521840701

SCREW 4X14(T)
(Superseded to 512691201)

$4.99

$

In Stock, only 3 left!

0

5

RedMax 512694901

LEVER THROTTLE

$5.99

$

In Stock, only 2 left!

0

6

RedMax 521673501

RP_LEVER (RPLS T402325430)

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 512695601

SHAFT
(Superseded to 521841001)

$11.99

$

Usually ships in 3-10 days

0

8

RedMax 521841101

WASHER(T)
(Superseded to 578027101)

$74.99

$

Usually ships in 3-10 days

0

9

RedMax 521841201

RP_SPRING WASHER

$3.49

$

In Stock, only 4 left!

0

10

RedMax 514154401

WASHER
(Superseded to 520921901)

$3.49

$

Usually ships in 3-10 days

0

11

RedMax 521841301

RP_CLIP(T)
(Superseded to 512696601)

$

$

Not available

12

RedMax 512698001

SWTICH (T)

$5.99

$

In Stock, only 2 left!

0

13

RedMax 521841601

SPRING (RPLS T402325720)

$4.99

$

In Stock, only 1 left!

0

14

RedMax 521841701

RP_SCREW 4X10(T)

$3.49

$

In Stock, only 3 left!

0

15

RedMax 521841801

CORD(T)

$4.99

$

In Stock, only 2 left!

0

16

RedMax 521841901

CORD(T)
(Superseded to 512699101)

$4.99

$

In Stock, only 2 left!

0

17

RedMax 512699701

CABLE

$20.99

$

In Stock, Qty 9

0

18

RedMax 510922501

TUBE

$

$

Not available

19

RedMax 514338401

BOLT WING

$4.99

$

In Stock, only 1 left!

0

20

RedMax 513671401

NUT

$3.49

$

In Stock, only 2 left!

0

21

RedMax 502842801

CLAMP

$6.99

$

In Stock, only 1 left!

0

22

RedMax 528907901

LABEL RECOIL 848L3W90C0

$3.49

$

Usually ships in 3-10 days

0
