EBZ 6500 RH - RedMax Backpack Blower (2011-09) HOUSING Parts Diagram

Backpack Blower

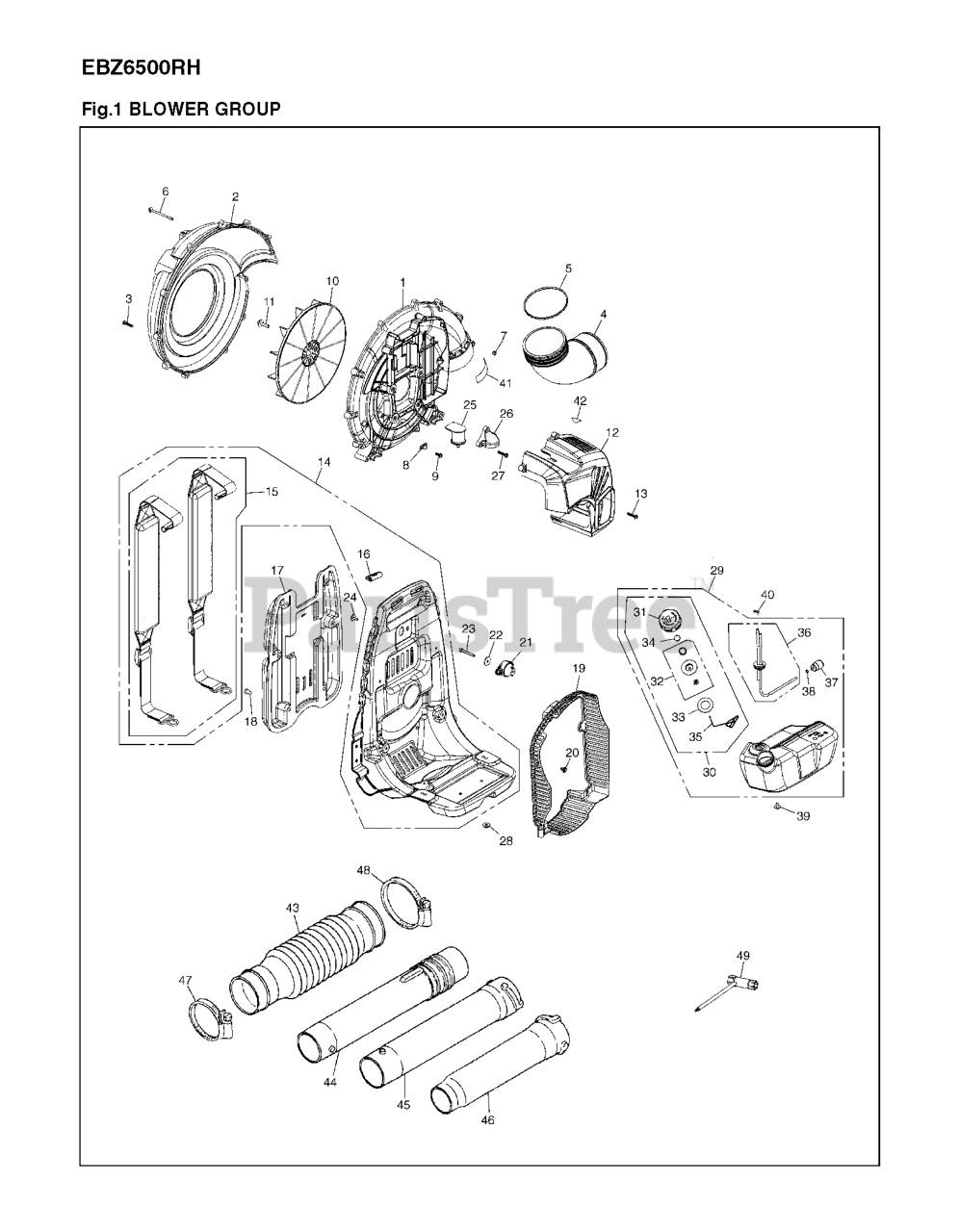

HOUSING Parts Diagram

  • Title

1

RedMax 577659501

VOLUTE, CASE

$109.99

$

Usually ships in 3-10 days

0

2

RedMax 577659601

VOLUTE, CASE

$

$

Not available

3

RedMax 512848101

SCREW

$3.99

$

In Stock, Qty 20+

0

4

RedMax 576561401

ELBOW

$12.99

$

In Stock, Qty 8

0

5

RedMax 505179801

0-RING
(Superseded to 510579301)

$6.49

$

Usually ships in 3-10 days

0

6

RedMax 544264601

SCREW

$6.49

$

In Stock, only 4 left!

0

7

RedMax 514183901

NUT

$4.99

$

In Stock, only 1 left!

0

8

RedMax 521525101

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 512847901

SCREW

$4.99

$

In Stock, only 4 left!

0

10

RedMax 577144801

FAN

$36.99

$

Usually ships in 3-10 days

0

11

RedMax 576561601

BOLT

$4.99

$

In Stock, Qty 20+

0

12

RedMax 576561701

ENGINE COVER

$34.99

$

In Stock, Qty 20+

0

13

RedMax 512848101

SCREW

$3.99

$

In Stock, Qty 20+

0

14

RedMax 576561801

FRAME ASSY

Note: . 15 16

$84.99

$

Usually ships in 3-10 days

0

15

RedMax 511758401

BAND ASSY (RPLS 848L583611)

$17.99

$

In Stock, Qty 20+

0

16

RedMax 544270001

CLIP
(Superseded to 511758801)

$4.99

$

In Stock, only 2 left!

0

17

RedMax 576562001

PAD

$31.99

$

In Stock, Qty 10

0

18

RedMax 526476701

CLIP
(Superseded to 505184901)

$3.99

$

In Stock, Qty 20+

0

19

RedMax 576562101

NET
(Superseded to 579659501)

$9.49

$

Usually ships in 3-10 days

0

20

RedMax 526243901

CLIP
(Superseded to 505184701)

$7.49

$

Usually ships in 3-10 days

0

21

RedMax 513666701

DAMPER UPPER
(Superseded to 513666702)

$9.49

$

In Stock, only 2 left!

0

22

RedMax 577357901

WASHER

$4.99

$

In Stock, Qty 6

0

23

RedMax 521517201

BOLT
(Superseded to 544270701)

$4.99

$

In Stock, Qty 12

0

24

RedMax 544270801

SCREW

$6.49

$

In Stock, Qty 10

0

25

RedMax 576562201

DAMPER

$15.99

$

In Stock, only 2 left!

0

26

RedMax 576562301

BRACKET

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 512848101

SCREW

$3.99

$

In Stock, Qty 20+

0

28

RedMax 513667501

NUT

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 576564101

TANK ASSY

Note: . 30 THRU 38

$54.99

$

Usually ships in 3-10 days

0

30

RedMax 504117701

ASSY FUEL CAP

Note: . 31 THRU 35

$30.99

$

In Stock, Qty 8

0

31

RedMax 505309701

CAP

$4.99

$

In Stock, only 3 left!

0

32

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

In Stock, only 1 left!

0

33

RedMax 506744301

PACKING

$4.99

$

In Stock, Qty 8

0

34

RedMax 506746801

FILTER

$6.49

$

In Stock, only 2 left!

0

35

RedMax 504117901

STOPPER

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 577089801

PIPE
(Superseded to 586359613)

$9.99

$

Usually ships in 3-10 days

0

37

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

38

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 13

0

39

RedMax 577628801

SCREW

$6.49

$

In Stock, only 1 left!

0

40

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

41

RedMax 577083401

DECAL

$3.99

$

In Stock, only 1 left!

0

42

RedMax 521553601

LABEL

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 505180901

HOSE

$37.99

$

In Stock, Qty 17

0

44

RedMax 505181101

SWIVEL JOINT
(Superseded to 511767301)

$17.99

$

In Stock, Qty 7

0

45

RedMax 511768201

PIPE

$18.99

$

In Stock, Qty 7

0

46

RedMax 511785801

PIPE, END (RPLS 848L5C65E0)

$18.99

$

In Stock, only 1 left!

0

47

RedMax 544274001

CLAMP(F96)

$6.49

$

In Stock, Qty 5

0

48

RedMax 544274101

CLAMP(F115)

$4.99

$

In Stock, Qty 20+

0

49

RedMax 521533001

SOCKET
(Superseded to 544274401)

$8.99

$

In Stock, only 3 left!

0
