EBZ 7150 (966363201) - RedMax Backpack Blower (2011-04) HANDLE CONTROLS Parts Diagram

Backpack Blower

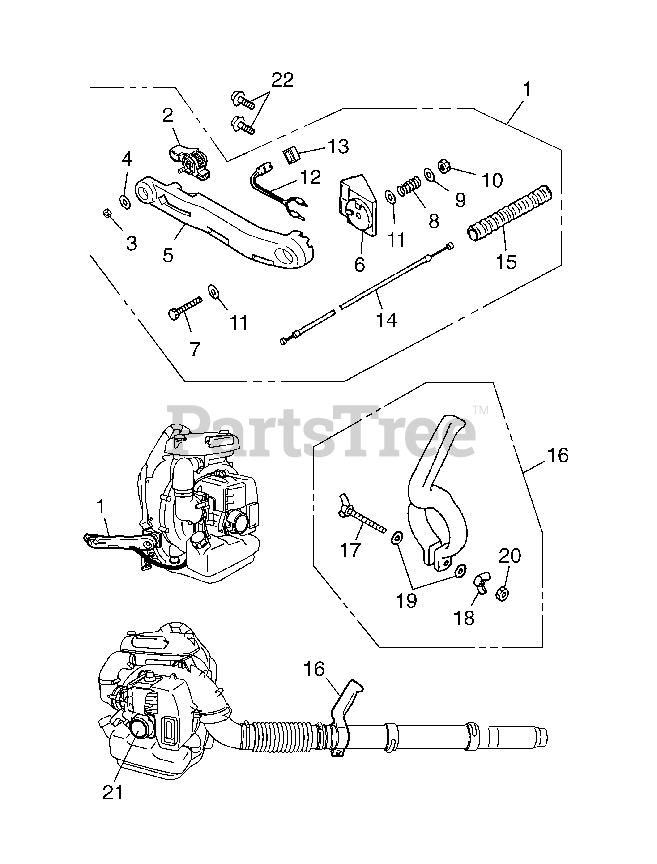

HANDLE CONTROLS Parts Diagram

  • Title

1

RedMax 502842901

HANDLE ASSY

Note: . 2 thru 15

$66.99

$

In Stock, only 3 left!

0

2

RedMax 512647801

LEVER

$48.99

$

In Stock, only 3 left!

0

3

RedMax 514183901

NUT

$4.99

$

In Stock, only 1 left!

0

4

RedMax 516078501

WASHER
(Superseded to 544276501)

$

$

Not available

5

RedMax 512648001

ARM
(Superseded to 544276601)

$24.99

$

Usually ships in 3-10 days

0

6

RedMax 512648101

BRACKET

$12.99

$

In Stock, only 2 left!

0

7

RedMax 514336201

BOLT

$6.49

$

In Stock, Qty 20+

0

8

RedMax 514336301

SPRING

$4.99

$

In Stock, Qty 20+

0

9

RedMax 514336501

WASHER Z349525440

$3.99

$

In Stock, Qty 12

0

10

RedMax 521519601

NUT 8488646000

$3.99

$

In Stock, Qty 20+

0

11

RedMax 514336701

WASHER

$3.99

$

In Stock, Qty 7

0

12

RedMax 504554601

KILL SWITCH

$34.99

$

In Stock, only 1 left!

0

13

RedMax 513351901

CAP SWITCH

$4.99

$

In Stock, only 1 left!

0

14

RedMax 512662301

RP_CABLE COMP
(Superseded to 544277501)

$12.99

$

Usually ships in 3-10 days

0

15

RedMax 544277601

TUBE

$4.99

$

In Stock, only 1 left!

0

16

RedMax 528919701

GRIP ASSY

Note: . 17 18 19 20

$

$

Not available

17

RedMax 510909801

WING BOLT

$

$

Not available

18

RedMax 514338501

WING NUT

$6.49

$

Usually ships in 3-10 days

0

19

RedMax 514154401

WASHER
(Superseded to 520921901)

$4.99

$

In Stock, only 1 left!

0

20

RedMax 513671401

NUT

$7.49

$

Usually ships in 3-10 days

0

21

RedMax 528921001

LABEL RECOIL EBZ7150

$

$

Not available

22

RedMax 544270801

SCREW

$6.49

$

In Stock, Qty 10

0
